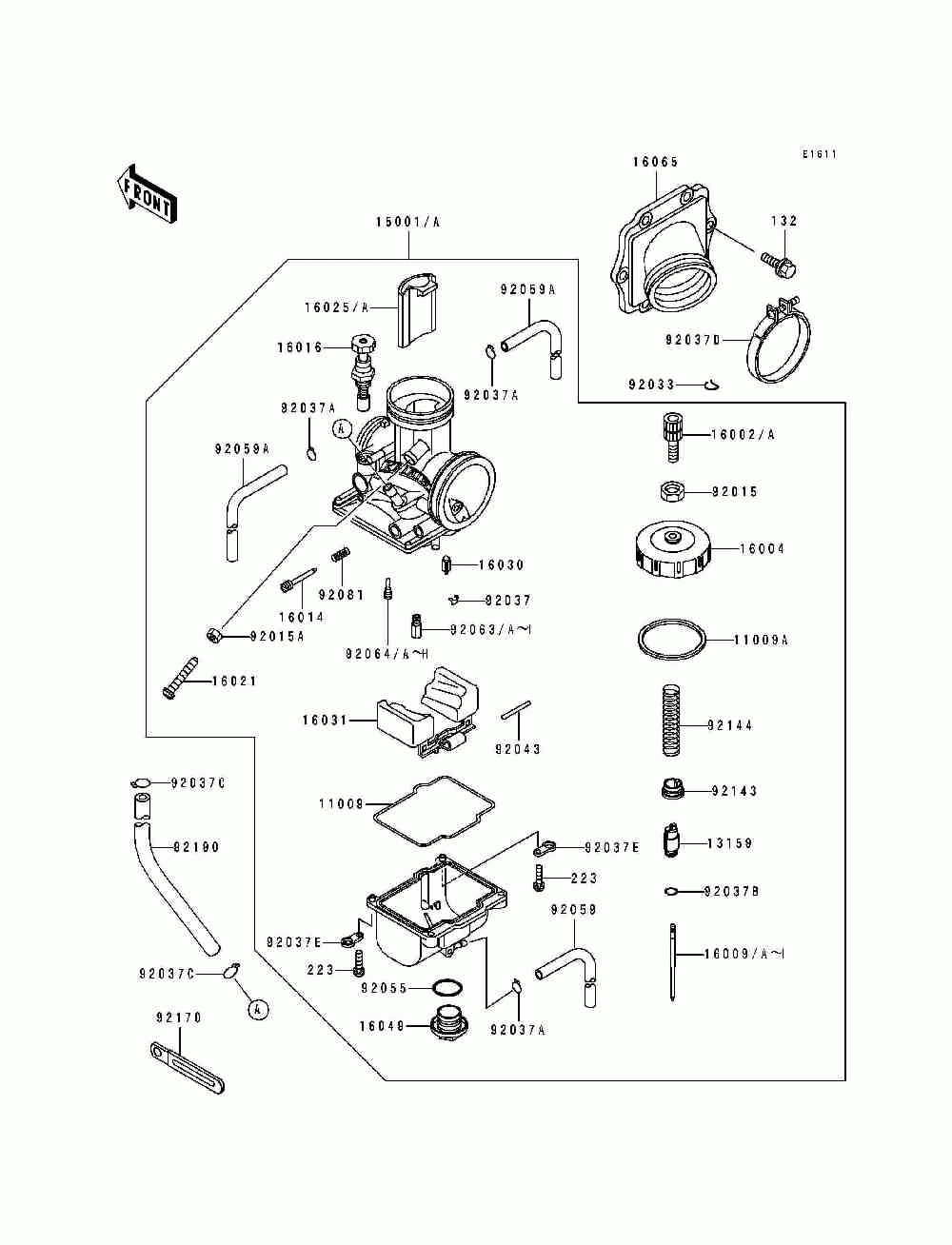

Карбюратор

Kawasaki KX125 (KX125-H2)
Kawasaki
#oem кодцена
11009
11009-1716
Прокладка
11009A
11009-1717
Gasket, Chamber Cap
13159
13159-1063
Connector, Throttle Ca
15001A
15001-1675
Carburetor-assy
16002A
16002-1061
Adjuster-cable
16004
16004-1061
Cap-chamber, Mixing
16009E
16009-1642
Needle-jet, N0eh (option)
16009F
16009-1643
Needle-jet, N0ei (option)
16009G
16009-1644
Needle-jet, N0ej
16009H
16009-1645
Needle-jet, N0ek (option)
16009I
16009-1646
Needle-jet, N0el (option)
16014
16014-1058
Screw-pilot Air
16016
16016-1075
Плунжер
16021
16021-1124
Screw-throttle Stop
16025A
16025-1172
Valve-throttle, Ca5
16030
16030-1057
Игла запорная
16031
16031-1067
Поплавок
16049
16049-1051
Cover-main Jet
16065
16065-1206
Holder-carburetor
92015
92015-1574
Гайка
92015A
92015-1707
Nut, Throttle Stop Scr
92033
92036-018
СТОПОРНОЕ КОЛЬЦО
92037
16044-007
Clip, Float Valve
92037A
92037-1396
Зажим
92037B
92037-1401
Clamp, Jet Needle
92037C
92037-147
Зажим
92037D
92037-1843
Зажим
92037E
92037-1969
Хомут
92043
92043-1148
Палец
92055
92055-1167
Ring-o, Main Jet Cover
92059
92059-1899
Tube, 3.5x6.5x390
92059A
92059-1898
Tube, 4x7x480
92063A
92063-1365
Jet-main (option)
92063C
92063-1366
Jet-main, #155 (option)
92063D
92063-1367
Jet-main, #158
92063F
92063-1368
Jet-main, #160 (option)
92063G
92063-1369
Jet-main, #162 (option)
92063I
92063-1375
Jet-main, #178 (option)
92064A
92064-1130
Jet-pilot, #52 (option)
92064B
92064-1141
Jet-pilot, #42 (option)
92064C
92064-1142
Jet-pilot (option)
92064D
92064-1143
Jet-pilot, #48
92064F
92064-1144
Jet-pilot (option)
92081
92081-1555
Spring, Adjust Screw
92143
92143-1201
Collar, Throttle Valve
92144
92144-1284
Пружина
92170
92170-1514
Зажим шланга карбюратора
92190
92059-3731
Tube, 2.5x5.8x270
132
132BA0620
Болт М6
223
223AB0416
Screw-pan-ws-cros
