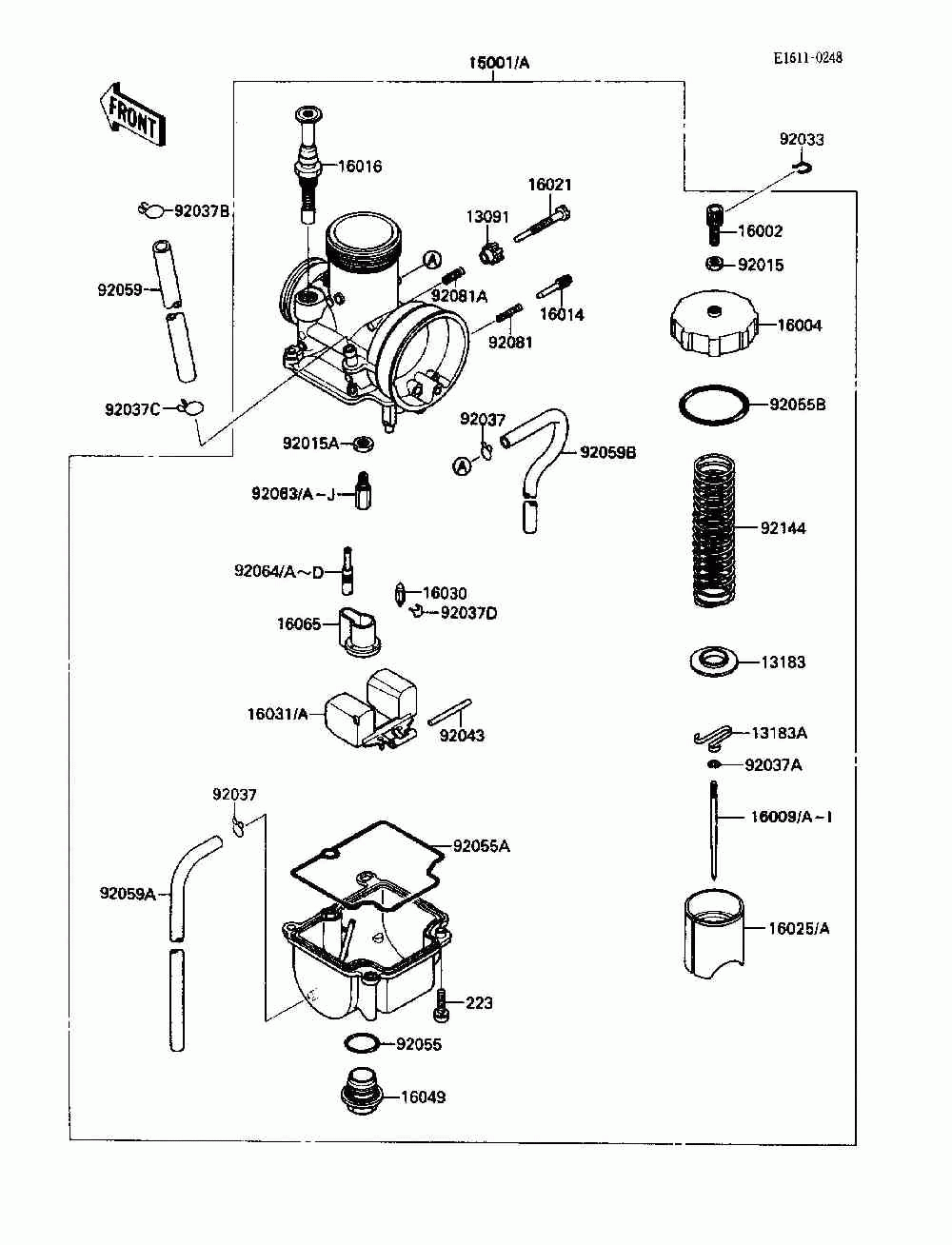

Карбюратор

Kawasaki KX80 Big Wheel (KX80-N3)
Kawasaki
#oem кодцена
13091
13091-1492
Holder, Stop Screw
13183
13183-1162
Пластина
13183A
13183-1250
Пластина
15001A
15001-1571
Carburetor-assy
16002
16002-1056
Adjuster-cable
16004
16004-1059
Cap-chamber, Mixing
16009E
16009-1573
Needle-jet
16009F
16009-1574
Needle-jet (option)
16009G
16009-1575
Needle-jet (option)
16009H
16009-1576
Needle-jet (option)
16009I
16009-1577
Needle-jet (option)
16014
16014-1033
Screw-pilot Air
16016
16016-1028
Плунжер
16021
16021-1121
Screw-throttle Stop
16025A
16025-1162
Valve-throttle, Ca3.0
16030
16030-1064
Игла запорная
16031A
16031-1071
Поплавок
16049
16049-1051
Cover-main Jet
16065
16065-1162
Holder-carburetor
92015
92015-1574
Гайка
92015A
92015-1674
Гайка
92033
92036-018
СТОПОРНОЕ КОЛЬЦО
92037
92037-1396
Зажим
92037A
92037-1401
Clamp, Jet Needle
92037B
92037-147
Зажим
92037C
92037-1712
Зажим
92037D
92144-1178
Spring, Float
92043
92043-1148
Палец
92055
92055-1167
Ring-o, Main Jet Cover
92055A
92055-1389
Ring-o, Float Chamber
92055B
92055-1390
Ring-o, Chamber Top
92059
92059-1665
Tube, 5.3x10.5x200
92059A
92059-1844
Tube, 4x7x300
92059B
92059-1898
Tube, 4x7x480
92063
92063-1334
Jet-main, #125 (option)
92063A
92063-1335
Jet-main, #128 (option)
92063E
92063-1356
Jet-main, #118 (option)
92063F
92063-1357
Jet-main, #120 (option)
92063G
92063-1358
Jet-main, #122
92063I
92063-1361
Jet-main, #142 (option)
92064
92064-1130
Jet-pilot, #52 (option)
92064A
92064-1144
Jet-pilot (option)
92064B
92064-1145
Jet-pilot, #55
92064C
92064-1146
Jet-pilot (option)
92064D
92064-1147
Jet-pilot (option)
92081
92081-1555
Spring, Adjust Screw
92081A
92081-1632
Spring, Stop Screw
92144
92144-1177
Spring, Throttle Valve
233
223AB0416
Screw-pan-ws-cros
