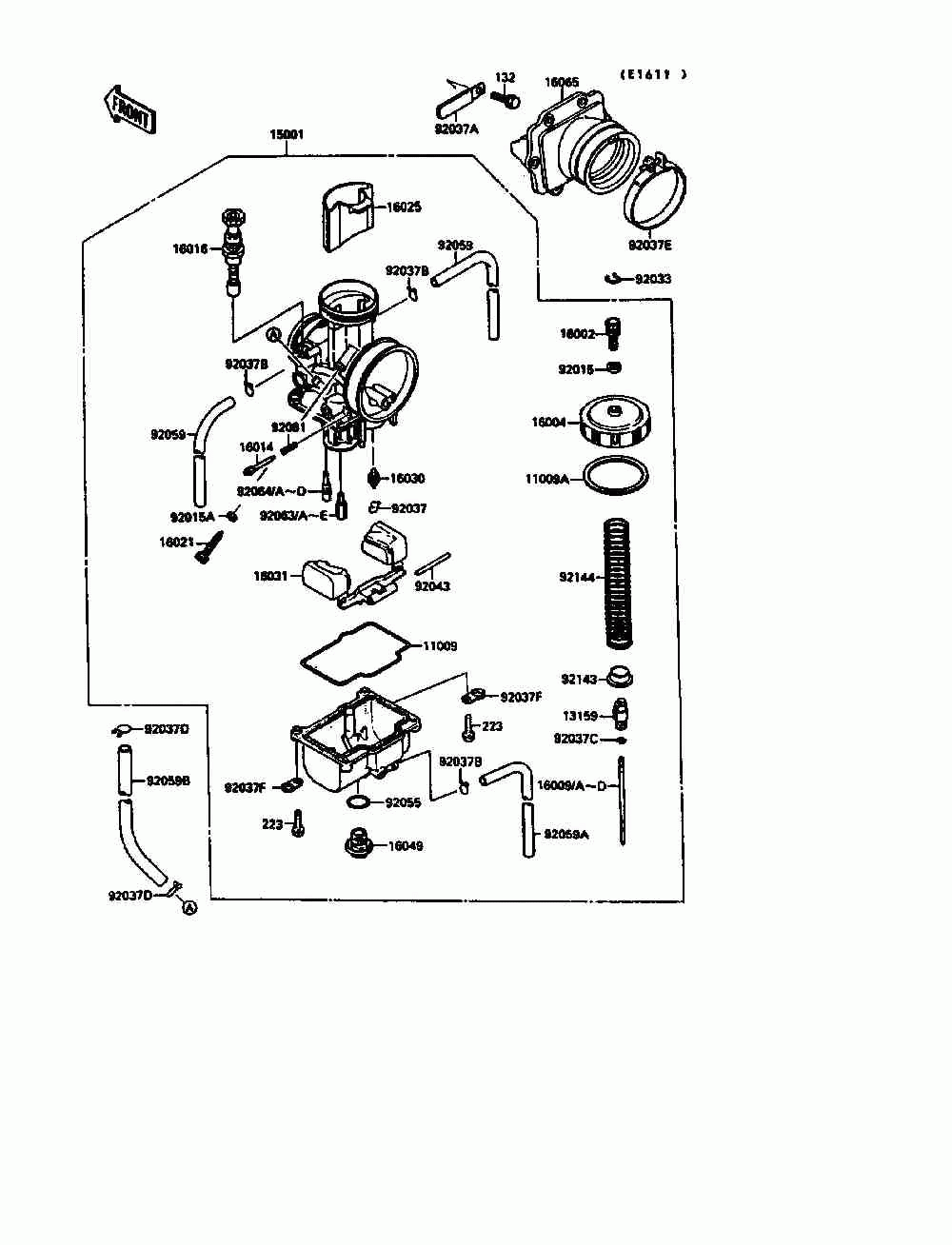

Карбюратор

Kawasaki KX125 (KX125-G1)
Kawasaki
#oem кодцена
11009
11009-1716
Прокладка
11009A
11009-1717
Gasket, Chamber Cap
13159
13159-1063
Connector, Throttle Ca
15001
15001-1462
Carburetor-assy
16002
16002-1056
Adjuster-cable
16004
16004-1061
Cap-chamber, Mixing
16009
16009-1451
Needle-jet, R2069n (option)
16009A
16009-1510
Needle-jet (option)
16009B
16009-1511
Needle-jet (option)
16009C
16009-1512
Needle-jet, R2067n
16009D
16009-1513
Needle-jet (option)
16014
16014-1058
Screw-pilot Air
16016
16016-1075
Плунжер
16021
16021-1124
Screw-throttle Stop
16025
16025-1148
Valve-throttle, Ca6.0
16030
16030-1057
Игла запорная
16031
16031-1067
Поплавок
16049
16049-1051
Cover-main Jet
16065
16065-1185
Holder-carburetor
92015
92015-1574
Гайка
92015A
92015-1707
Nut, Throttle Stop Scr
92033
92036-018
СТОПОРНОЕ КОЛЬЦО
92037
16044-007
Clip, Float Valve
92037A
92171-0652
Зажим
92037B
92037-1396
Зажим
92037C
92037-1401
Clamp, Jet Needle
92037D
92037-147
Зажим
92037E
92037-1843
Зажим
92037F
92037-1969
Хомут
92043
92043-1148
Палец
92055
92055-1167
Ring-o, Main Jet Cover
92059
92059-1896
Tube, 4x7x420
92059A
92059-1899
Tube, 3.5x6.5x390
92059B
92059-3731
Tube, 2.5x5.8x270
92063
92063-1364
Jet-main, #150 (option)
92063A
92063-1365
Jet-main (option)
92063B
92063-1366
Jet-main, #155
92063C
92063-1367
Jet-main, #158 (option)
92063D
92063-1368
Jet-main, #160 (option)
92063E
92063-1374
Jet-main (option)
92064
92064-1130
Jet-pilot, #52
92064A
92064-1143
Jet-pilot, #48 (option)
92064B
92064-1144
Jet-pilot (option)
92064C
92064-1145
Jet-pilot, #55
92064D
92064-1146
Jet-pilot (option)
92081
92081-1555
Spring, Adjust Screw
92143
92143-1201
Collar, Throttle Valve
92144
92144-1284
Пружина
132
132BA0620
Болт М6
223
223AB0416
Screw-pan-ws-cros
