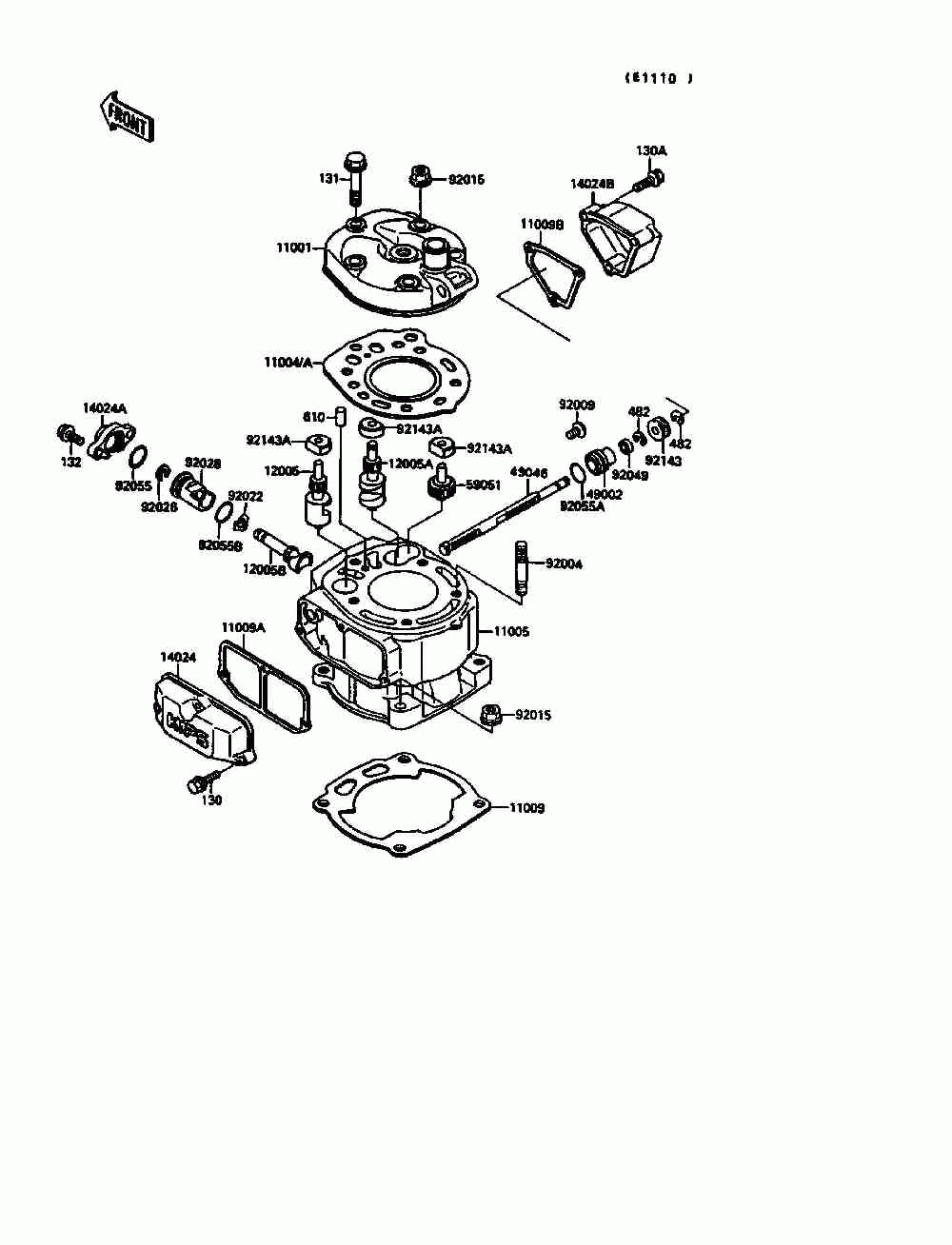

Цилиндр и головка цилиндров

Kawasaki KX125 (KX125-G1)
Kawasaki
#oem кодцена
11001
11001-1308
Головка блока цилиндров
11004
11004-1188
Gasket-head
11004A
11004-1198
Gasket-head (option)
11005
11005-1565
Cylinder-engine
11009
11009-1940
Gasket, Cylinder Base
11009A
11009-1934
Gasket, Rh, Governor
11009B
11009-1938
Gasket, Lh, Resonator
12005
12005-1113
Valve-exhaust, Lh
12005A
12005-1114
Valve-exhaust, Rh
12005B
12005-1128
Valve-exhaust, Main
14024
14024-1565
Cover, Resonator
14024A
14024-1708
Cover, Main Valve
14024B
14024-1786
Cover, Governor
49002
49002-1083
Guide-valve
49046
49046-1062
Rod-governor
59051
59051-1190
Gear-spur, Idle
92004
92004-1009
Stud, 8x35
92009
92009-1502
Винт
92015
92015-1143
Nut-8mm
92022
92022-1978
Шайба
92026
92026-1333
Проставка
92028
92028-1616
Bushing, Center Valve
92049
92049-1206
Seal-oil, Rso-5.5 11 4
92055
92055-1258
Ring-o, Id=16.8
92055A
92055-1399
Ring-o, 14.5x1.5
92055B
92055-1422
Кольцо
92143
92143-1056
Манжета
92143A
92143-1147
Collar, Valve
130
130CA0520
Bolt-flanged, 5x20
130A
130BA0525
Bolt-flanged, 5x25
131
130CA0840
Bolt-flanged, 8x40
132
132BA0620
Болт М6
482
482K4000
Circlip Seld Bem Fit
610
610A0408
Pin Dowel 4x8
130
130BA0520
Bolt-flanged, 5x20
