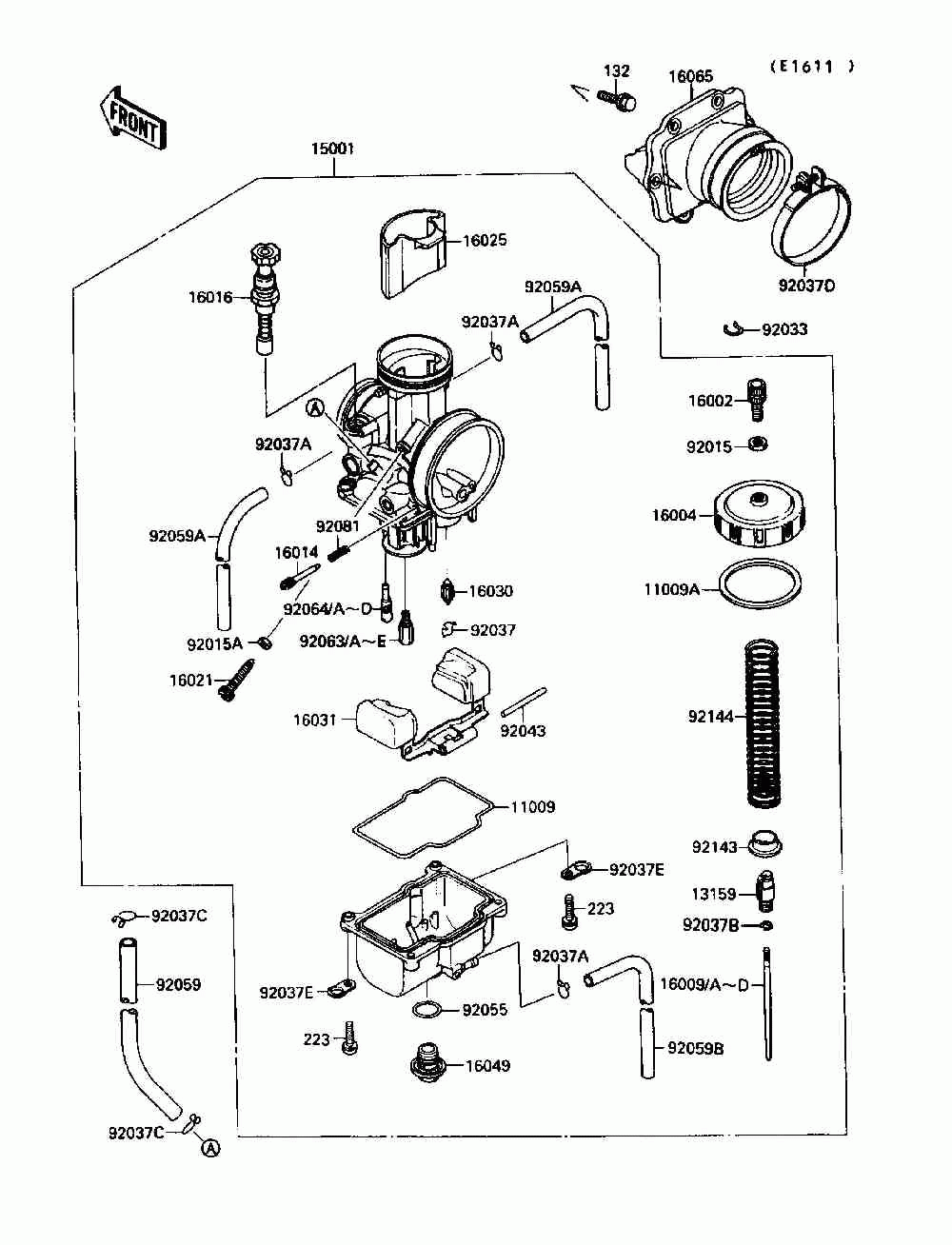

Карбюратор

Kawasaki KX250 (KX250-G1)
Kawasaki
#oem кодцена
11009
11009-1716
Прокладка
11009A
11009-1717
Gasket, Chamber Cap
13159
13159-1063
Connector, Throttle Ca
15001
15001-1464
Carburetor-assy
16002
16002-1056
Adjuster-cable
16004
16004-1061
Cap-chamber, Mixing
16009
16009-1406
Needle-jet, R1366j (option)
16009A
16009-1407
Needle-jet, R1367j (option)
16009B
16009-1408
Needle-jet, R1368j
16009C
16009-1409
Needle-jet, R1369j (option)
16009D
16009-1410
Needle-jet, R1370j (option)
16014
16014-1058
Screw-pilot Air
16016
16016-1075
Плунжер
16021
16021-1124
Screw-throttle Stop
16025
16025-1163
Valve-throttle, Ca7
16030
16030-1057
Игла запорная
16031
16031-1067
Поплавок
16049
16049-1051
Cover-main Jet
16065
16065-1168
Holder-carburetor
92015
92015-1574
Гайка
92015A
92015-1707
Nut, Throttle Stop Scr
92033
92036-018
СТОПОРНОЕ КОЛЬЦО
92037
16044-007
Clip, Float Valve
92037A
92037-1396
Зажим
92037B
92037-1401
Clamp, Jet Needle
92037C
92037-147
Зажим
92037D
92037-1486
Clamp, 55mm
92037E
92037-1969
Хомут
92043
92043-1148
Палец
92055
92055-1167
Ring-o, Main Jet Cover
92059
92059-3731
Tube, 2.5x5.8x270
92059A
92059-1898
Tube, 4x7x480
92059B
92059-1899
Tube, 3.5x6.5x390
92063
92063-1371
Jet-main (option)
92063A
92063-1372
Jet-main (option)
92063B
92063-1373
Jet-main, #172
92063C
92063-1374
Jet-main (option)
92063D
92063-1375
Jet-main, #178 (option)
92063E
92063-1381
Jet-main, #192 (option)
92064
92064-1130
Jet-pilot, #52 (option)
92064A
92064-1144
Jet-pilot (option)
92064B
92064-1145
Jet-pilot, #55
92064C
92064-1146
Jet-pilot (option)
92064D
92064-1147
Jet-pilot (option)
92081
92081-1555
Spring, Adjust Screw
92143
92143-1201
Collar, Throttle Valve
92144
92144-1305
Spring, Throttle Valve
132
132BA0620
Болт М6
223
223AB0416
Screw-pan-ws-cros
