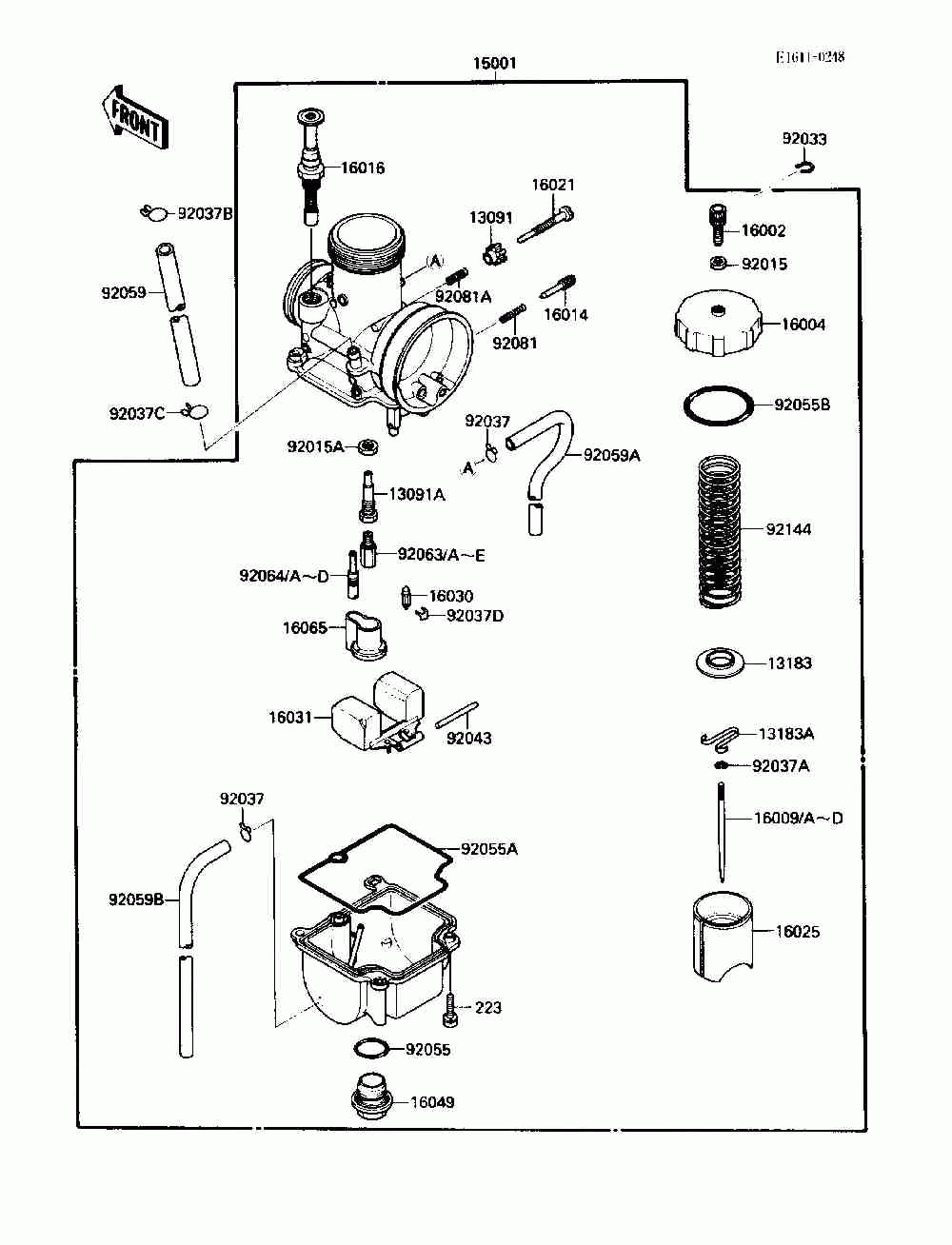

Карбюратор

Kawasaki KX80 Big Wheel (KX80-N1)
Kawasaki
#oem кодцена
13091
13091-1492
Holder, Stop Screw
13091A
13091-1552
Держатель
13183
13183-1162
Пластина
13183A
13183-1250
Пластина
15001
15001-1441
Carburetor-assy
16002
16002-1056
Adjuster-cable
16004
16004-1059
Cap-chamber, Mixing
16009
16009-1391
Needle-jet, F3043f (option)
16009A
16009-1392
Needle-jet, F3044f (option)
16009B
16009-1393
Needle-jet, F3045f
16009C
16009-1394
Needle-jet, F3046f (option)
16009D
16009-1395
Needle-jet, F3047f (option)
16014
16014-1033
Screw-pilot Air
16016
16016-1028
Плунжер
16021
16021-1121
Screw-throttle Stop
16025
16025-1147
Valve-throttle, Ca 5.0
16030
16030-1064
Игла запорная
16031
16031-1065
Поплавок
16049
16049-1051
Cover-main Jet
16065
16065-1162
Holder-carburetor
92015
92015-1574
Гайка
92015A
92015-1674
Гайка
92033
92036-018
СТОПОРНОЕ КОЛЬЦО
92037
92037-1396
Зажим
92037A
92037-1401
Clamp, Jet Needle
92037B
92037-147
Зажим
92037C
92037-1712
Зажим
92037D
92144-1178
Spring, Float
92043
92043-1148
Палец
92055
92055-1167
Ring-o, Main Jet Cover
92055A
92055-1389
Ring-o, Float Chamber
92055B
92055-1390
Ring-o, Chamber Top
92059
92059-1665
Tube, 5.3x10.5x200
92059A
92059-1844
Tube, 4x7x300
92059B
92059-1898
Tube, 4x7x480
92063
92063-1364
Jet-main, #150 (option)
92063A
92063-1365
Jet-main (option)
92063B
92063-1366
Jet-main, #155
92063C
92063-1367
Jet-main, #158 (option)
92063D
92063-1368
Jet-main, #160 (option)
92063E
92063-1374
Jet-main (option)
92064
92064-1130
Jet-pilot, #52 (option)
92064A
92064-1145
Jet-pilot, #55 (option)
92064B
92064-1146
Jet-pilot
92064C
92064-1147
Jet-pilot (option)
92064D
92064-1148
Jet-pilot (option)
92081
92081-1555
Spring, Adjust Screw
92081A
92081-1632
Spring, Stop Screw
92144
92144-1177
Spring, Throttle Valve
223
223AB0416
Screw-pan-ws-cros
