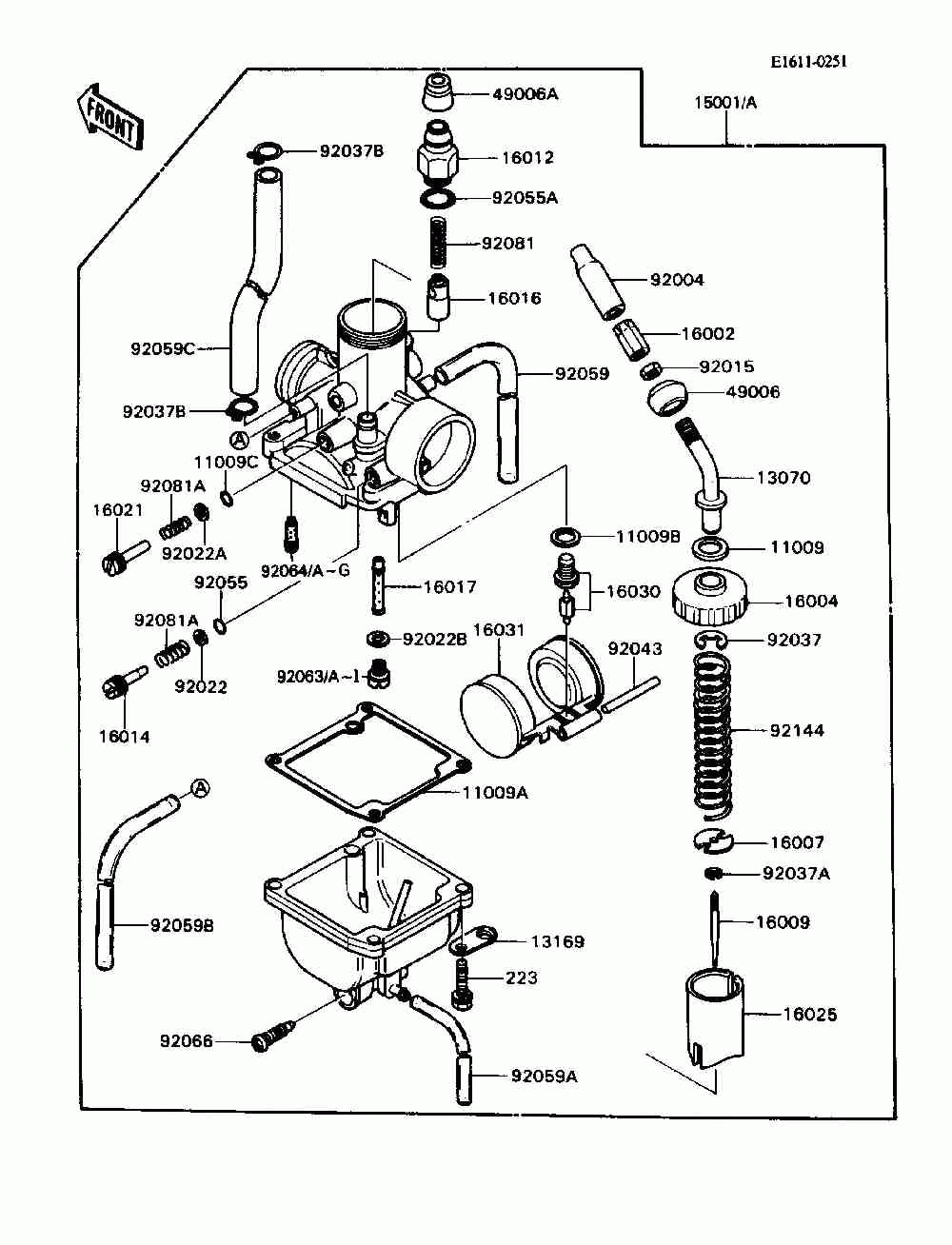

Карбюратор

Kawasaki KD80 (KD80-N1)

Карбюратор

#

oem код

название

цена

11009

Gasket, Cable Guide

Gasket, Cable Guide

11009A

Прокладка

Прокладка

11009B

Washer Valve Seat

Washer Valve Seat

11009C

Кольцо

Кольцо

13070

Направляющая троса

Направляющая троса

13169

Plate, Tube

Plate, Tube

15001

Carburetor-assy Us

Carburetor-assy Us

16002

Adjuster-cable

Adjuster-cable

16004

Cap-chamber, Mixing

Cap-chamber, Mixing

16007

Седло пружины

Седло пружины

16009

Needle-jet, 3g23-4

Needle-jet, 3g23-4

16012

Cap-starter Plunger

Cap-starter Plunger

16014

Screw-pilot Air

Screw-pilot Air

16016

Plunger-enrichner

Plunger-enrichner

16017

Jet-needle, D-8

Jet-needle, D-8

16021

Screw-throttle Stop

Screw-throttle Stop

16025

Valve-throttle, Ca3.0

Valve-throttle, Ca3.0

16030

Valve-float, #1.5

Valve-float, #1.5

16031

Поплавок

Поплавок

49006

Boot, Mixing Chamber C

Boot, Mixing Chamber C

49006A

Чехол защитный

Чехол защитный

92004

Boot, Cable Adjuster

Boot, Cable Adjuster

92015

Nut Cable Adjust Lock

Nut Cable Adjust Lock

92022

Washer, Pilot Screw

Washer, Pilot Screw

92022A

Washer, Throttle Stop

Washer, Throttle Stop

92022B

Шайба

Шайба

92037

Circlip, Cable Guide

Circlip, Cable Guide

92037A

Зажим

Зажим

92037B

Зажим

Зажим

92043

Палец

Палец

92055

"0" Ring, Pi

"0" Ring, Pi

92055A

Ring-o, Plunger

Ring-o, Plunger

92059

Tube, 3x5x475

Tube, 3x5x475

92059B

Tube, 3x5x350

Tube, 3x5x350

92059C

Tube, 5.3x10.5x115

Tube, 5.3x10.5x115

92063

Jet-main, #a85r Us

Jet-main, #a85r Us

92063A

Main Jet No 87.5r Cn

Main Jet No 87.5r Cn

92063B

Main Jet, #a90r Cn

Main Jet, #a90r Cn

92063C

Main Jet, #a95 Cn

Main Jet, #a95 Cn

92063D

Main Jet, #a92.5r Cn

Main Jet, #a92.5r Cn

92063E

Main Jet No 75r Us

Main Jet No 75r Us

92063F

Main Jet, #77.5r Us

Main Jet, #77.5r Us

92063G

Main Jet, #a80 Us

Main Jet, #a80 Us

92063H

Jet-main, #a82, 5r Us

Jet-main, #a82, 5r Us

92064

Pilot Jet #17.5 Iso (off Road Use Only)

Pilot Jet #17.5 Iso (off Road Use Only)

92064A

Jet-pilot, #a20 Us

Jet-pilot, #a20 Us

92064C

Pilot Jet, #a25 (off Road Use Only)

Pilot Jet, #a25 (off Road Use Only)

92064D

Jet-pilot No.22 Cn

Jet-pilot No.22 Cn

92064F

Pilot-jet Us

Pilot-jet Us

92064G

Jet-pilot, #27.5 Cn

Jet-pilot, #27.5 Cn

92066

Пробка, Дренажный

Пробка, Дренажный

92081

Spring Starter Plung

Spring Starter Plung

92081A

Spring, Air Screw

Spring, Air Screw

92144

Spring, Throttle Valve

Spring, Throttle Valve

223

Screw-pan-ws-cros

Screw-pan-ws-cros
