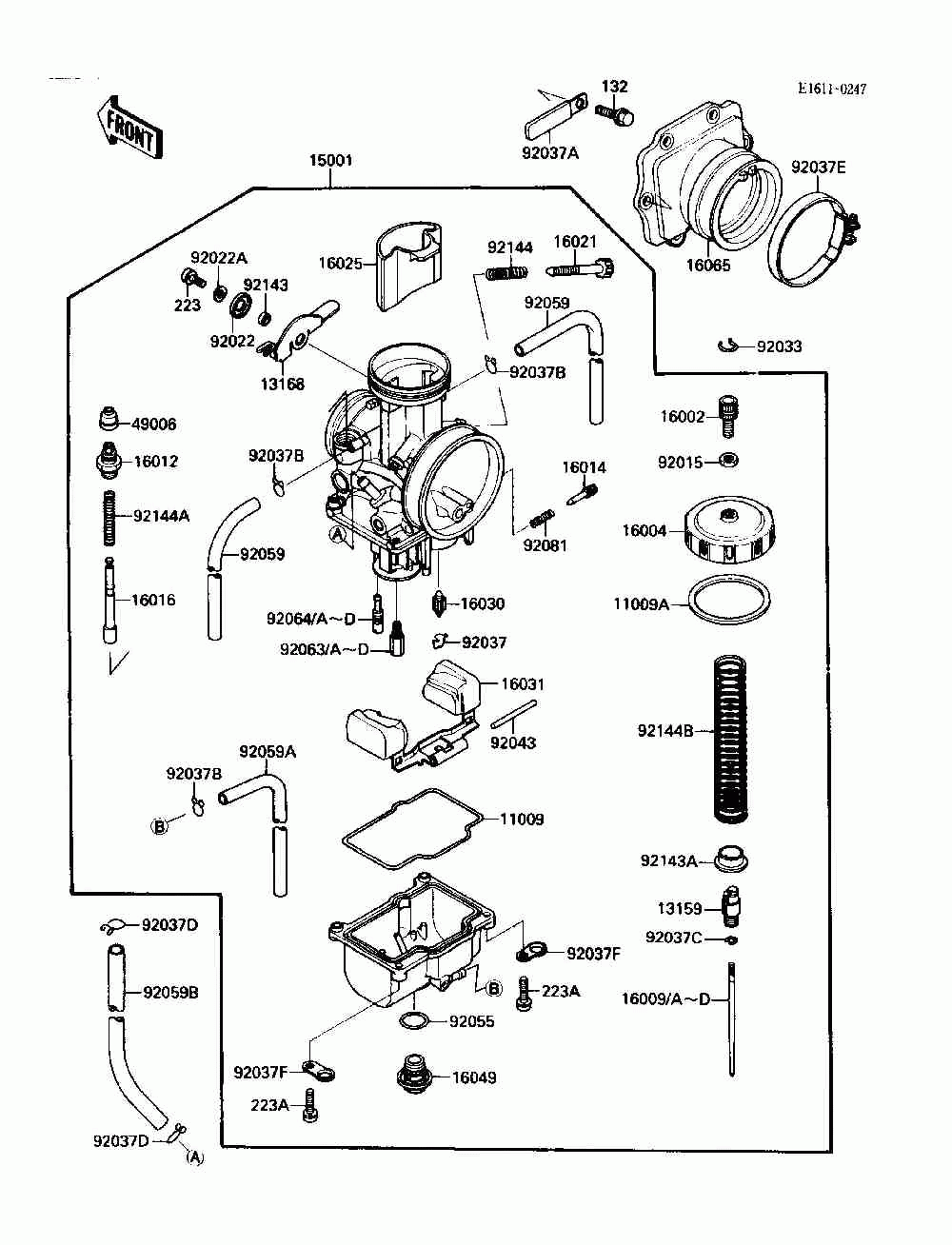

Карбюратор

Kawasaki KDX200 (KDX200-C3)

Карбюратор

#

oem код

название

цена

11009

Прокладка

Прокладка

11009A

Gasket, Chamber Cap

Gasket, Chamber Cap

13159

Connector, Throttle Ca

Connector, Throttle Ca

13168

Рычаг стартера

Рычаг стартера

15001

Carburetor-assy

Carburetor-assy

16002

Adjuster-cable

Adjuster-cable

16004

Cap-chamber, Mixing

Cap-chamber, Mixing

16009

Needle-jet (option)

Needle-jet (option)

16009A

Needle-jet (option)

Needle-jet (option)

16009B

Needle-jet, R-1368e

Needle-jet, R-1368e

16009C

Needle-jet (option)

Needle-jet (option)

16009D

Needle-jet (option)

Needle-jet (option)

16012

Cap-starter Plunger

Cap-starter Plunger

16014

Screw-pilot Air

Screw-pilot Air

16016

Плунжер

Плунжер

16021

Screw-throttle Stop

Screw-throttle Stop

16025

Valve-throttle, Ca6.0

Valve-throttle, Ca6.0

16030

Игла запорная

Игла запорная

16031

Поплавок

Поплавок

16049

Cover-main Jet

Cover-main Jet

16065

Holder-carburetor

Holder-carburetor

49006

Boot, Starter Plunger

Boot, Starter Plunger

92015

Гайка

Гайка

92022

Шайба

Шайба

92022A

Washer, 4.2x12x1.0

Washer, 4.2x12x1.0

92033

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

92037

Clip, Float Valve

Clip, Float Valve

92037A

Зажим

Зажим

92037B

Зажим

Зажим

92037C

Clamp, Jet Needle

Clamp, Jet Needle

92037D

Зажим

Зажим

92037E

Зажим

Зажим

92037F

Хомут

Хомут

92043

Палец

Палец

92055

Ring-o, Main Jet Cover

Ring-o, Main Jet Cover

92059

Tube, 4x7x420

Tube, 4x7x420

92059A

Tube, 3.5x6.5x390

Tube, 3.5x6.5x390

92059B

Tube, 2.5x5.8x270

Tube, 2.5x5.8x270

92063

Jet-main, #140 (option)

Jet-main, #140 (option)

92063A

Jet-main, #142 (option)

Jet-main, #142 (option)

92063B

Jet-main, #145

Jet-main, #145

92063C

Jet-main, #148 (option)

Jet-main, #148 (option)

92063D

Jet-main, #150 (option)

Jet-main, #150 (option)

92064

Jet-pilot, #52 (option)

Jet-pilot, #52 (option)

92064A

Jet-pilot, #42 (option)

Jet-pilot, #42 (option)

92064B

Jet-pilot (option)

Jet-pilot (option)

92064C

Jet-pilot, #48

Jet-pilot, #48

92064D

Jet-pilot (option)

Jet-pilot (option)

92081

Spring, Adjust Screw

Spring, Adjust Screw

92143

Collar, Starter Lever

Collar, Starter Lever

92143A

Collar, Throttle Valve

Collar, Throttle Valve

92144

Spring, Throttle Stop

Spring, Throttle Stop

92144A

Spring, Starter Plunge

Spring, Starter Plunge

92144B

Пружина

Пружина

132

Болт М6

Болт М6

223

Screw-pan-ws-cros, 4x8

Screw-pan-ws-cros, 4x8

223A

Screw-pan-ws-cros

Screw-pan-ws-cros
