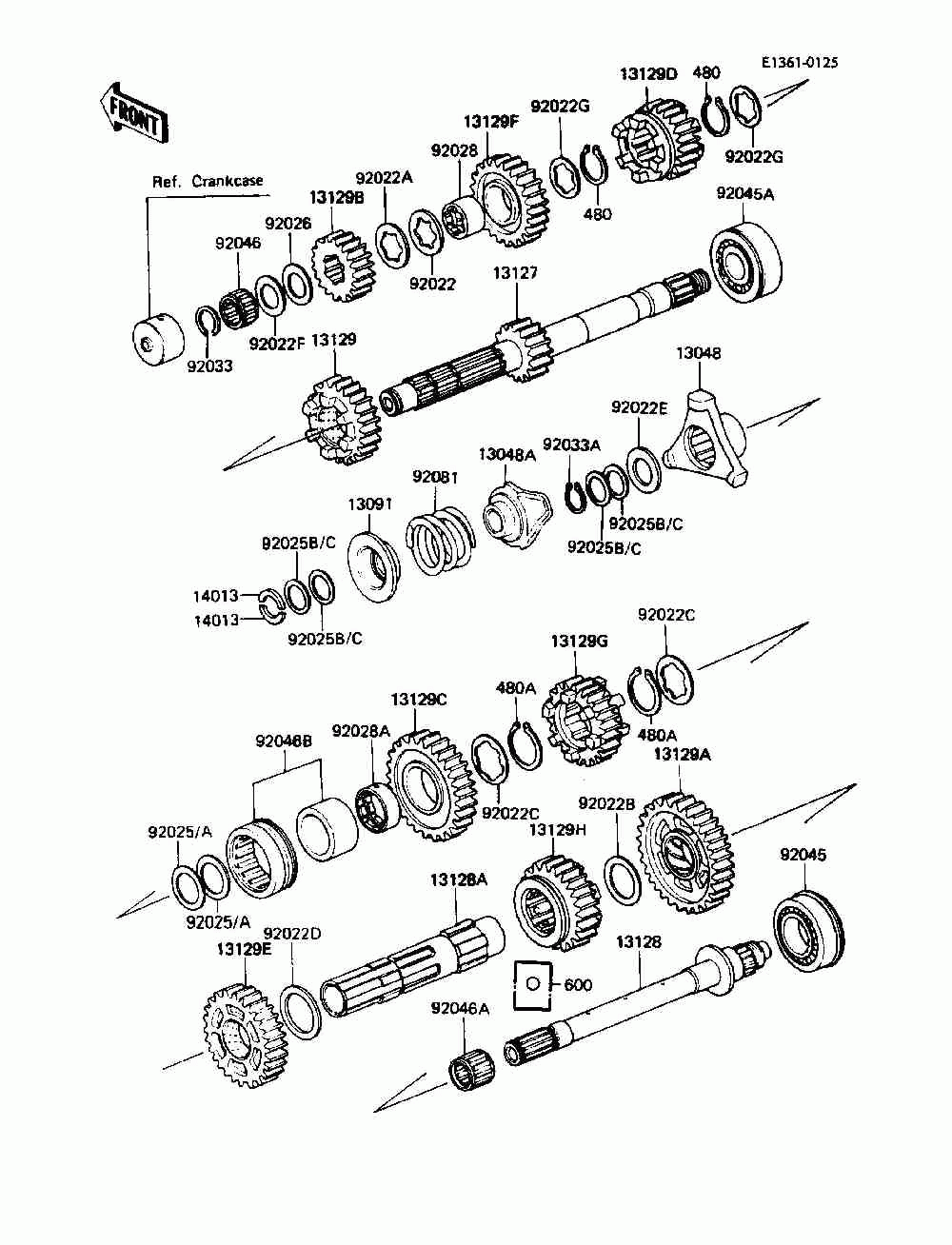

ТРАНСМИССИЯ

Kawasaki Voyager (ZN1300-A6)
Kawasaki
#oem кодцена
13048
13048-1010
Cam-damper
13048A
13048-1011
Cam-damper
13091
13091-1091
Holder, Spring
13127
13127-1113
Shaft-transmission
13128
13128-1050
Shaft-transmission Ou
13128A
13128-1109
Shaft-transmission
13129
13129-1098
4th Gear, Drive Shaft
13129A
13129-1426
Gear, Output Low, 41t
13129B
13129-1427
Gear, Input 2nd, 20t
13129C
13129-1428
Gear, Output 2nd, 36t
13129D
13129-1429
Gear, Input 3rd, 24t
13129E
13129-1430
Gear, Output 3rd, 33t
13129F
13129-1592
Gear-input Top, 29t
13129G
13129-1593
Gear-output Top, 27t
13129H
13129-1594
Gear-output 4th, 30t
14013
14013-1001
Ring, Positon
92022
92022-1098
Washer, Splined, 3.0t
92022A
92022-1099
Washer, Drive Top Gear
92022B
92022-1100
Washer, 34.3x44x1.0
92022C
92022-1101
Washer, Splined, 1.0t
92022D
92022-1102
Washer, 36.3x46x2.0
92022E
92022-1103
Washer, 23.2x38x3.0
92022F
92022-212
Washer, Plain, 22mm
92022G
92024-042
Washer, Thrust, 26mm
92026
92026-1020
Spacer (i.d=22 O.d=35
92028
92028-1302
Bushing, Input Top Gea
92028A
92028-1303
Bushing, Output 2nd Ge
92033
92033-025
Стопорное кольцо 25мм
92033A
92033-1021
Circlip, 22.8m/m
92045
92045-1018
Bearing, Ball, #3206
92045A
92045-1028
Bearing, Ball, 5305nsh2
92046
92046-031
Bearing, Pk223013.8
92046A
92046-1015
Bearing, N, K23x28x24
92046B
92046-1119
Игольчатый подшипник
92081
92081-1286
Spring, Damper
480
480J2800
Circlip 28mm
480A
480J3600
Circlip, 36m/m
600
600A0500
Ball Steel 5/32'
