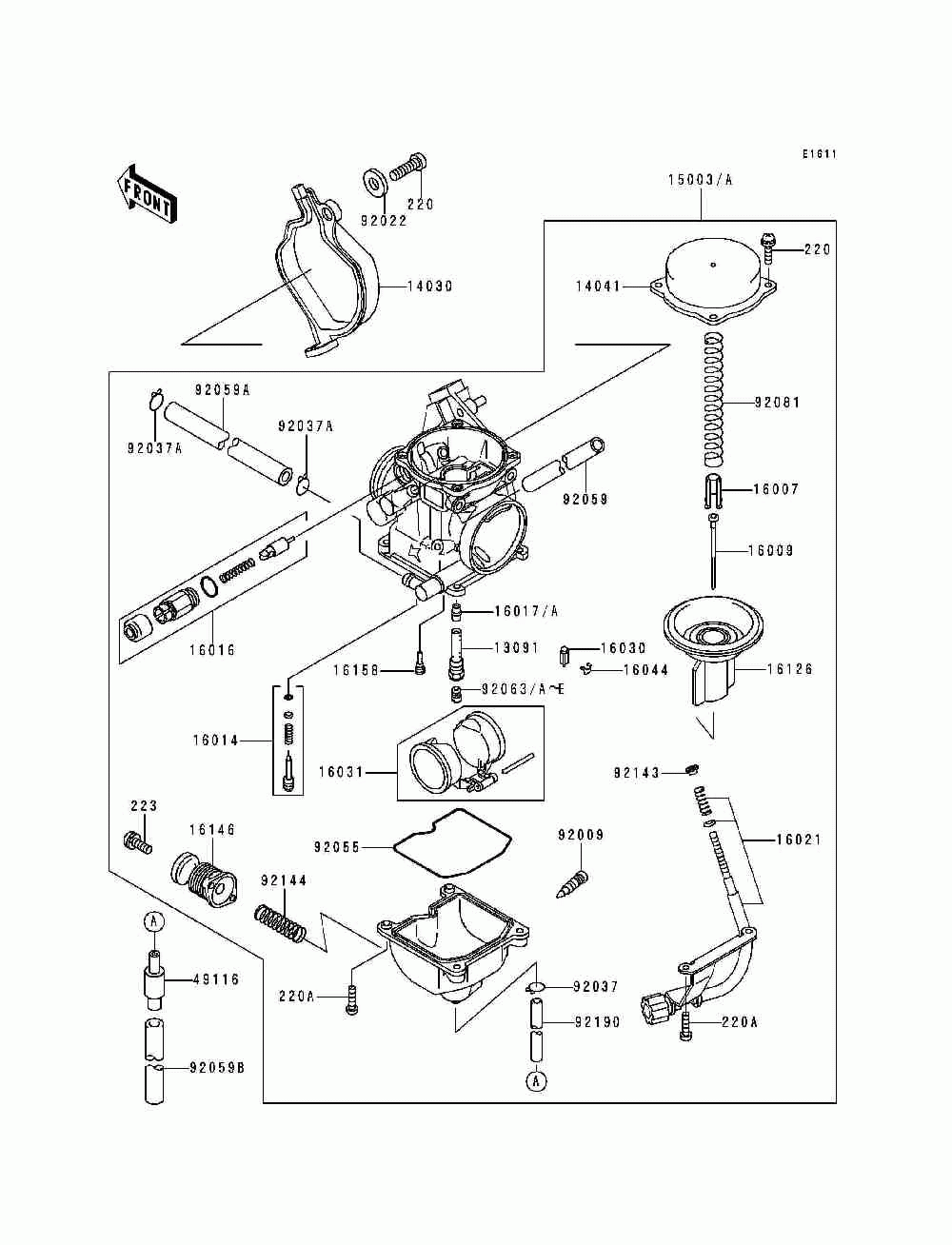

Carburetor(-lf400ae532917)

Kawasaki Bayou 400 4X4 (KLF400-B6)

Carburetor(-lf400ae532917)

#

oem код

название

цена

13091

Держатель

Держатель

14030

Cover-carburetor

Cover-carburetor

14041

Top-chamber

Top-chamber

15003

Carburetor-assy Ca

Carburetor-assy Ca

15003A

Carburetor-assy Cnus

Carburetor-assy Cnus

16007

Седло пружины

Седло пружины

16009

Needle-jet

Needle-jet

16014

Screw-pilot Air

Screw-pilot Air

16016

Плунжер

Плунжер

16017

Jet-needle Cnus

Jet-needle Cnus

16017A

Jet-needle Ca

Jet-needle Ca

16021

Screw-throttle Stop

Screw-throttle Stop

16030

Float Valve

Float Valve

16031

Поплавок

Поплавок

16044

Clip, Float Valve

Clip, Float Valve

16126

Valve, Vacuum

Valve, Vacuum

16146

Cover-assy, Pump

Cover-assy, Pump

16158

Jet-slow, #42

Jet-slow, #42

49116

Valve-assy

Valve-assy

92009

Винт

Винт

92022

Washer, 5.2x13x1

Washer, 5.2x13x1

92037

Зажим

Зажим

92037A

Зажим

Зажим

92055

Ring-o, Float Chamber

Ring-o, Float Chamber

92059

Tube, 6.5x11.5x150

Tube, 6.5x11.5x150

92059A

Tube, 6.5x9.5x430

Tube, 6.5x9.5x430

92059B

Tube, 7x10x100

Tube, 7x10x100

92063

Main Jet, 2nd, #85

Main Jet, 2nd, #85

92063A

Main Jet, 2nd, #125 (option)

Main Jet, 2nd, #125 (option)

92063B

Jet-main, #118 (option)

Jet-main, #118 (option)

92063C

Main Jet, 2nd, #120

Main Jet, 2nd, #120

92063D

Main Jet, 2nd, #122 (option)

Main Jet, 2nd, #122 (option)

92063E

Jet-main #115 (option)

Jet-main #115 (option)

220

Винт

Винт

220A

Винт

Винт

223

Screw-pan-ws-cros

Screw-pan-ws-cros

92081

Spring, Vacuum Valve

Spring, Vacuum Valve

92143

Втулка

Втулка

92144

Spring, Pump

Spring, Pump

92190

Tube, 4.5x8x330

Tube, 4.5x8x330
