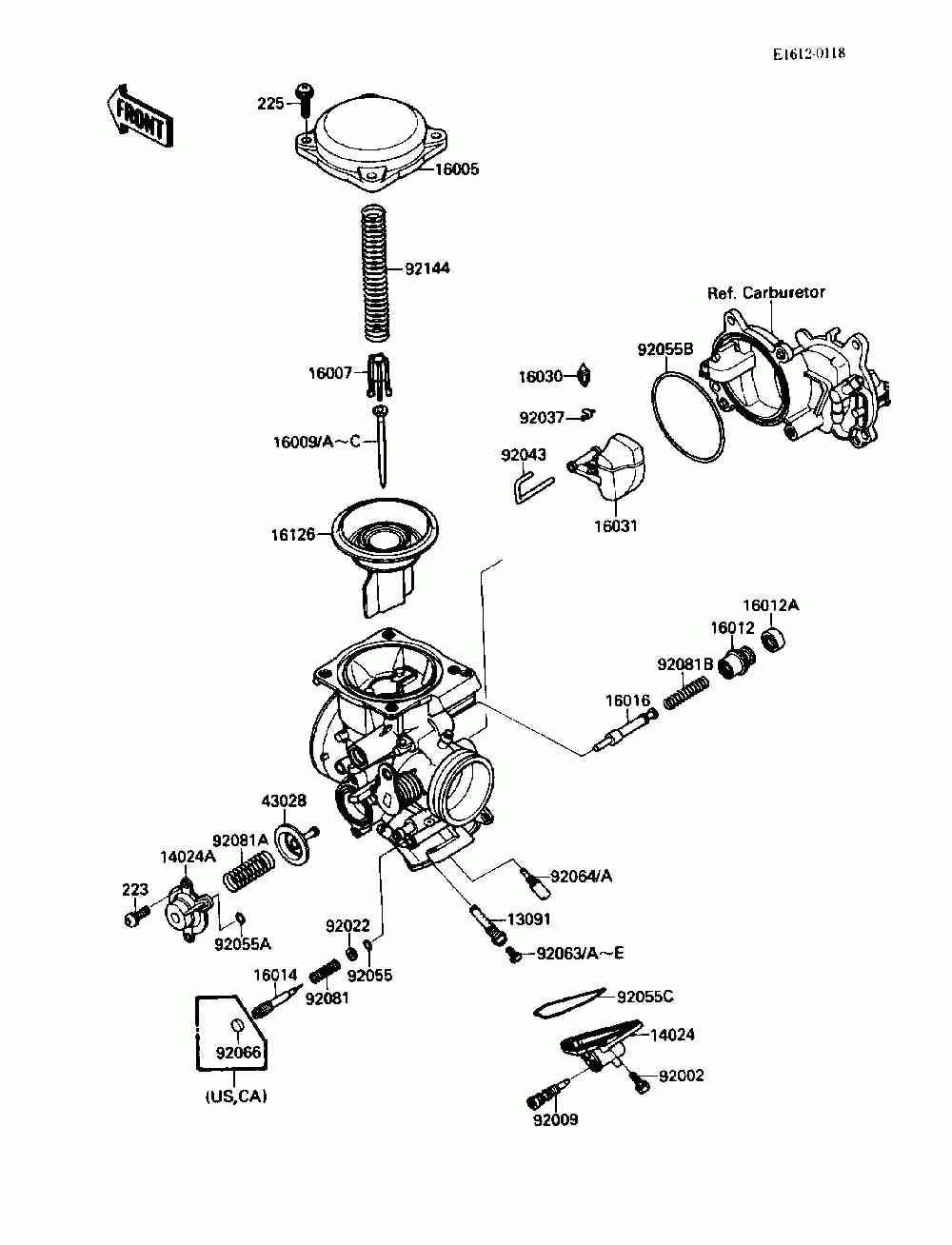

Карбюратор в разборе

Kawasaki Vulcan 88 SE (VN1500-B1)
Kawasaki
#oem кодцена
13091
13091-1513
Держатель
14024
14090-1517
Крышка
14024A
14025-1903
Cover, Air Cut Valve
16005
16005-1057
Top-chamber, Mixing
16007
16007-1117
Seat-spring, Throttle
16009
16009-1369
Needle-jet, Rr, N36q Us
16009A
16009-1370
Needle-jet, Fr, N36p Us
16009B
16009-1371
Needle-jet, Rr, N36s Ca
16009C
16009-1372
Needle-jet, Fr, N36r Ca
16012
16012-1051
Cap-starter Plunger
16012A
16012-1052
Cap-starter Plunger
16014
16014-1054
Screw-pilot Air
16016
16016-1071
Плунжер
16030
16030-1007
Float Valve
16031
16031-1066
Поплавок
16126
16126-1203
Valve, Vacuum
43028
43028-1053
Diaphragm, Air Cut Val
92002
92150-1851
Болт
92009
92009-1095
Винт
92022
92022-1003
Шайба
92037
16044-007
Clip, Float Valve
92043
92043-1285
Палец
92055
92055-1002
O Ring, Pilot Adj
92055A
92055-1245
Кольцо
92055B
92055-1291
Кольцо
92055C
92055-1400
Ring-o, Drain Cover
92063
92063-1014
Main Jet, #135 (racing Use Only)
92063A
92063-1015
Main Jet, #138 (racing Use Only)
92063B
92063-1069
Main Jet, 2nd, #125 (racing Use Only)
92063C
92063-1074
Main Jet, 2nd, #128 (racing Use Only)
92063D
92063-1075
Main Jet, 2nd, #130
92063E
92063-1076
Jet-main, #132
92064
92064-1135
Jet-pilot, #42
92064A
92064-1136
Jet-pilot, #40 (racing Use Only)
92066
92066-1051
Plug, Pilot Screw
92081
92081-1002
Spring, Pirot Adj Scrw
92081A
92081-1719
Spring, Air Cut Valve
92081B
92081-1761
Spring, Starter Plunge
92144
92144-1219
Spring, Vacuum Valve
223
223AA0408
Screw-pan-ws-cros, 4x8
225
225AB0418
Винт
