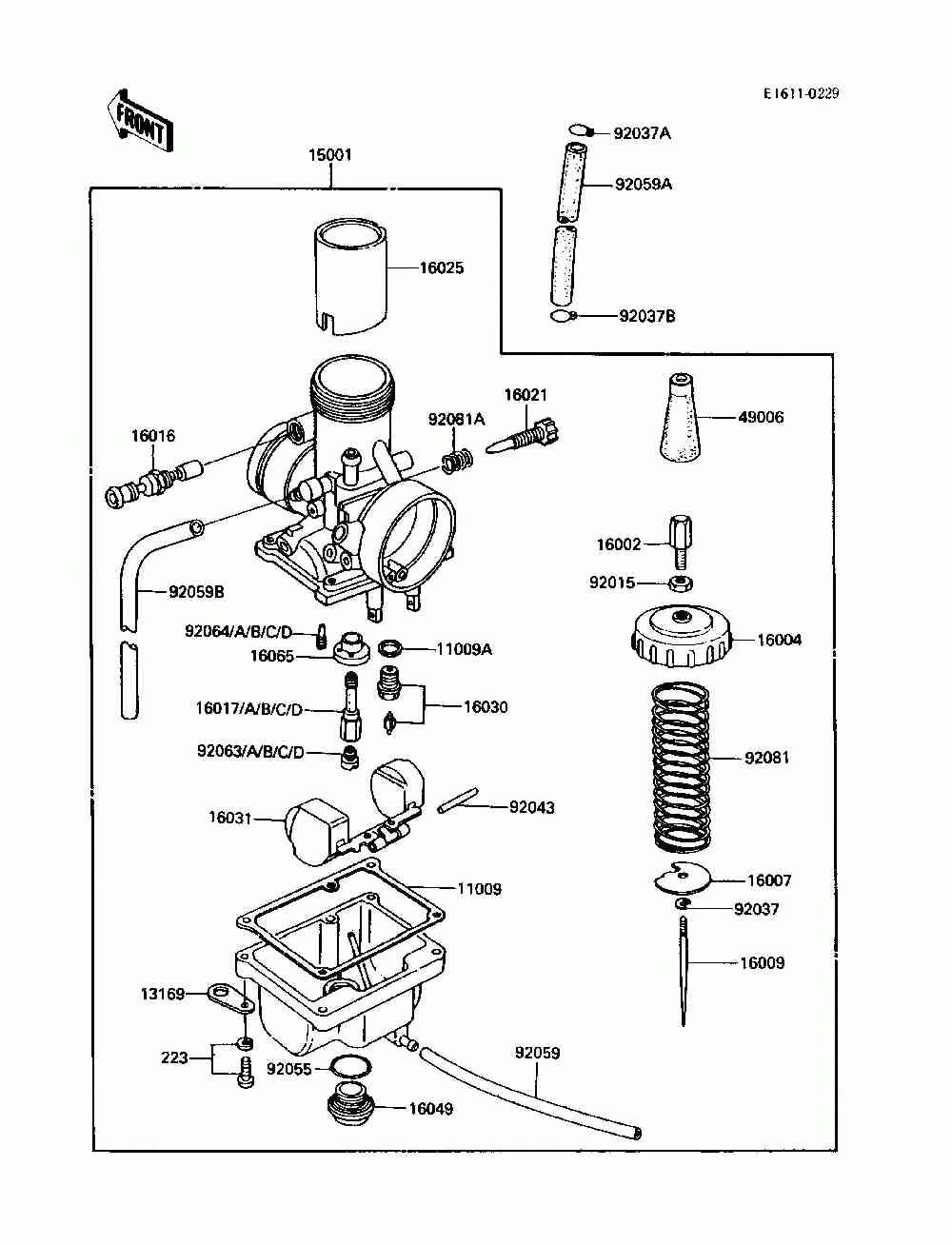

Carburetor(kdx80-c1/c2/c3)

Kawasaki KDX80 (KDX80-C1)
Kawasaki
#oem кодцена
11009
11009-1147
Прокладка
11009A
16029-004
Washer Float Vlv Seat
13169
13169-1951
Plate, Tube
15001
16001-1926
Carburetor
16002
16002-017
Adjuster, Cable
16004
16004-025
Cap, Mixing Chamber
16007
16007-023
Spring Seat, Thrtl Vl
16009
16009-1220
Needle-jet, 5i14-3
16016
16016-0008
Плунжер
16017
16017-1228
Jet-needle, 0-6
16017A
16017-1229
Jet-needle, P-0 (option)
16017B
16017-1230
Jet-needle, 0-8 (option)
16017C
16017-1231
Jet-needle, 0-4 (option)
16017D
16017-1232
Jet-needle, 0-2 (option)
16021
16021-1108
Screw-throttle Stop
16025
16025-1107
Valve-throttle, C.a 2.
16030
16030-1004
Float Valve Assy, 2.6
16031
16031-1005
Поплавок
16049
16049-1001
Cover, Main Jet
16065
16065-1020
Держатель
49006
16036-007
Cap, Carburetor
92015
16003-006
Nut-cable Adjust Lock
92037
16008-010
СТОПОРНОЕ КОЛЬЦО
92037A
92037-147
Зажим
92037B
92037-1712
Зажим
92043
16032-008
Палец
92055
92055-1061
"0" Ring, Ma
92059
92059-1755
Tube, 3x5x300
92059A
92059-1129
Tube, 5.3x10.5x150
92059B
92059-1655
Tube, 3x5x475
92063
92063-021
Jet-main No 190a (option)
92063A
92063-022
Jet-main No 200a (option)
92063B
92063-023
Jet-main No 210a
92063C
92063-024
Jet-main No 220a (option)
92063D
92063-025
Jet-main No 230a (option)
92064
92064-1023
Pilot Jet, #35
92064A
92064-1030
Pilot Jet, #30 (option)
92064B
92064-1038
Jet-pilot, #25 (option)
92064C
92064-1060
Jet-pilot, #45 (option)
92064D
92064-1104
Jet-pilot, #40 (option)
92081
16006-023
Пружина
92081A
16022-005
Spring Thr Stop Screw
223
223AA0416
Screw-pan-ws-cros
