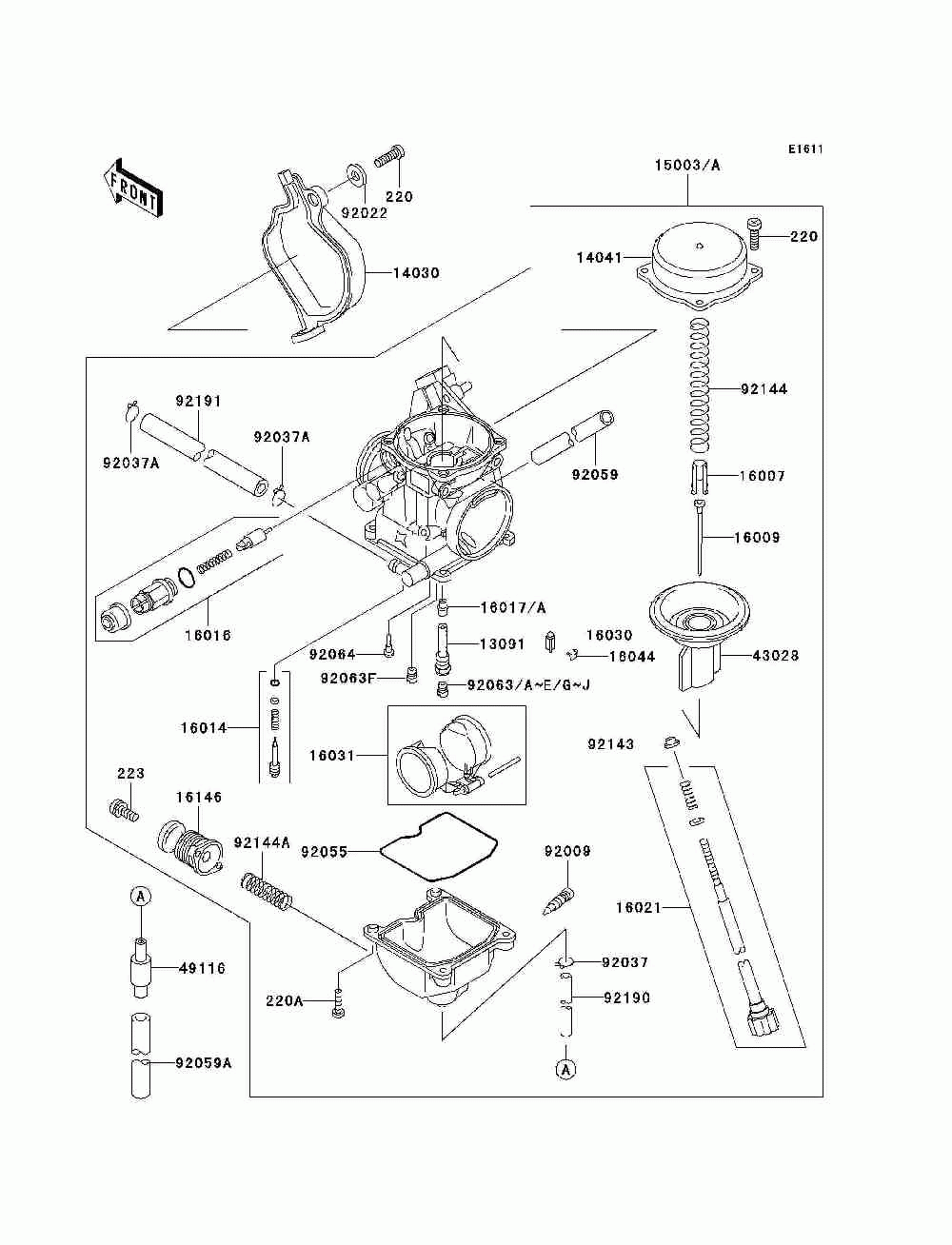

Carburetor(-vf400ae515522)

Kawasaki Prairie 400 4X4 (KVF400-A2)
Kawasaki
#oem кодцена
13091
13091-1259
Держатель
14030
14030-1054
Cover-carburetor
14041
16005-1065
Top-chamber, Mixing
15003
15003-1282
Carburetor-assy Cnus
15003A
15003-1415
Carburetor-assy Ca
16007
16007-1134
Seat-spring, Valve
16009
16009-1928
Needle-jet, N3rc
16014
16014-1080
Screw-pilot Air
16016
16016-1101
Плунжер
16017
16017-1319
Jet-needle Cnus
16017A
16017-1393
Jet-needle, #6 Ca
16021
16021-1213
Screw-throttle Stop
16030
16030-1007
Float Valve
16031
16031-1077
Поплавок
16044
16044-007
Clip, Float Valve
16146
16146-1129
Cover-assy, Pump
43028
43028-1081
Diaphragm, Valve
49116
49116-1126
Valve-assy
92009
92009-1551
Винт
92022
92022-1380
Washer, 5.2x13x1
92037
92037-1201
Зажим
92037A
92037-1531
Зажим
92055
92055-1518
Ring-o, Float Chamber
92059
92059-1465
Tube, 6.5x9.5x500
92059A
92059-1736
Tube, 7x10x100
92063
92063-1013
Main Jet, #140 (option)
92063A
92063-1014
Main Jet, #135 (option)
92063B
92063-1015
Main Jet, #138 (option)
92063C
92063-1016
Main Jet, #142 (option)
92063D
92063-1017
Main Jet, #145 Ca
220
220AA0408
Винт
220A
220AA0414
Винт
223
223AB0412
Screw-pan-ws-cros
92063F
92063-1023
Main Jet, 2nd, #85
92063G
92063-1324
Jet-main, #148 Cnus
92063I
92063-1330
Jet-main, #150 (option)
92063J
92063-1331
Jet-main, #152 Cnus (option)
92064
92064-1101
Jet-pilot, #35
92143
92143-1589
Втулка
92144
92144-1066
Spring, Vacuum Valve
92144A
92144-1672
Spring, Pump
92190
92190-1557
Tube, 4.5x8x330
92191
92191-1144
Tube, 6.5x11.5x130
92063E
92063-1017
Main Jet, #145 Cnus (option)
92063H
92063-1324
Jet-main, #148 Ca (option)
