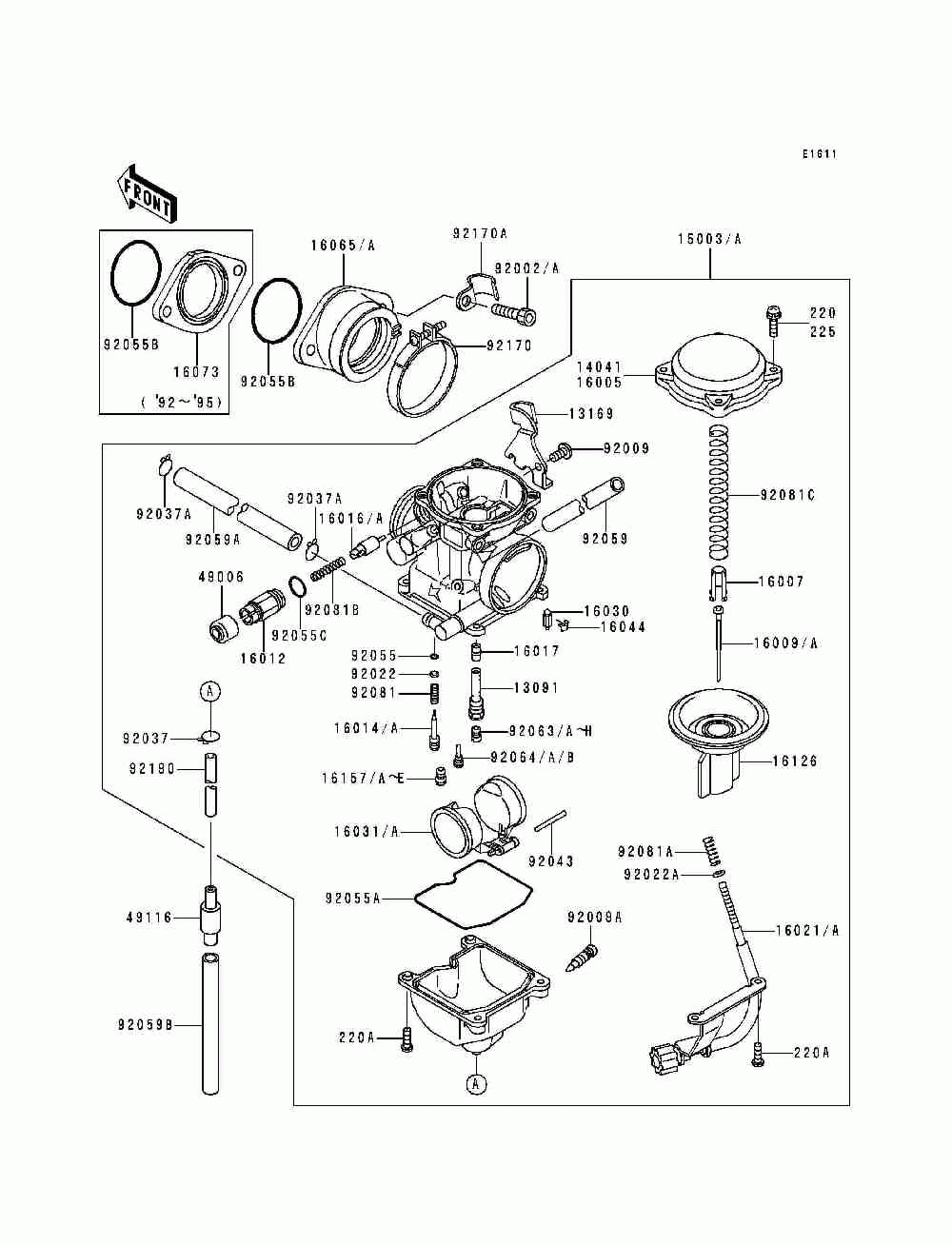

Карбюратор

Kawasaki Bayou 300 (KLF300-B9)
Kawasaki
#oem кодцена
13091
13091-1259
Держатель
14041
14041-1076
Top-chamber
15003A
15003-1739
Carburetor-assy
16007
16007-1120
Седло пружины
16009A
16009-1874
Needle-jet
16012
16012-1055
Cap-starter Plunger
16014A
16014-1081
Screw-pilot Air
16016A
16016-1101
Плунжер
16017
16017-1270
Jet-needle
16021A
16021-1175
Screw-throttle Stop
16030
16030-1007
Float Valve
16031A
16031-1077
Поплавок
16044
16044-007
Clip, Float Valve
16065A
16065-1301
Holder-carburetor
16126
16126-1199
Valve, Vacuum
16157C
16157-1063
Jet-starter
16157D
16157-1064
Jet-starter (option)
16157E
16157-1065
Jet-starter (option)
49006
49006-1165
Boot, Starter Plunger
49116
49116-1126
Valve-assy
92002A
92002-1143
Болт 6x16
92009
92009-1365
Винт
92009A
92009-1551
Винт
92022
92022-1003
Шайба
92022A
92022-1480
Washer, Plain, Stop Spr
92037
92037-1201
Зажим
92037A
92037-1531
Зажим
92043
92043-1148
Палец
92055
92055-1002
O Ring, Pilot Adj
92055A
92055-1222
Ring-o, Float Chamber
92055B
92055-1295
Ring-o, 38mm
92055C
92055-1416
Ring-o, Starter Plunge
92059
92059-1237
Tube, L=350
92059A
92059-1463
Tube, 6.5x11.5x150
92059B
92059-1736
Tube, 7x10x100
92063A
92063-1069
Main Jet, 2nd, #125
92063C
92063-1072
Main Jet, 2nd, #120 (option)
92063D
92063-1073
Main Jet, 2nd, #122 (option)
92063E
92063-1074
Main Jet, 2nd, #128 (option)
92063G
92063-1075
Main Jet, 2nd, #130 (option)
92064
92064-1101
Jet-pilot, #35 (option)
92064A
92064-1119
Jet-pilot
92064B
92064-1125
Jet-pilot (option)
92081
92081-1002
Spring, Pirot Adj Scrw
92081A
92081-1617
Spring, Throttle Stop
92081B
92081-1720
Пружина
92081C
92081-1912
Spring, Vacuum Valve
92170
92170-1438
Зажим
92170A
92170-1552
Зажим
92190
92190-1557
Tube, 4.5x8x330
220
220AA0408
Винт
220A
220AA0414
Винт
13169
13169-1977
Plate, Throttle Cable
