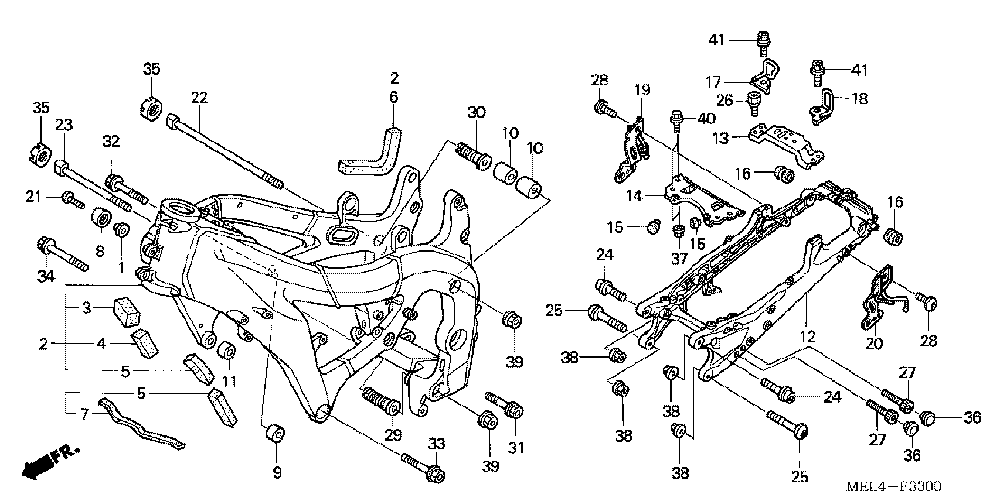

Рама

Honda CBR1000RR
Honda
#oem кодцена
01
19621-ZG3-880
Collar, Fan Cover
02
50010-MEL-671ZA
Frame Assy. *nh461m*
02
50010-MEL-771ZA
Frame Assy. *nh461m*
03
50131-MEL-300
Mat A, R. Eng Hgr
04
50132-MEL-300
Mat B, R. Eng Hgr
05
50133-MEL-300
Мат
06
50134-MEL-300
Mat, R. Pivot Plate
07
50135-MEL-300
Mat, Ram Duct
08
50141-MEL-000
Guard, Water Pipe
09
50191-MEL-000
Collar B, Eng Hgr
10
50192-MEL-000
Втулка
11
50193-MEL-000
Кольцо
12
50200-MEL-010ZA
Rail, Seat *nh461m*
13
50204-MEL-000
Plate, Center Cross
14
50214-MEL-000
Plate, Fr. Cross
15
50352-GS6-000
Резинка
16
45146-MEL-D00
Grommet, Brake Hose
17
77105-MEL-000
Guide, R. Hook
18
77106-MEL-000
Guide, L. Hook
19
84110-MEL-670
Hook, R. Rope
20
84120-MEL-670
Hook, L. Rope
21
90085-MAJ-A20
Болт (6x17)
22
90101-MEL-000
Bolt (12x311)
23
90102-MEL-000
Bolt (12x280)
24
90109-MEL-000
Bolt (10x38)
25
90110-MEL-000
Bolt (10x41.5)
26
90115-MJ1-830
Болт м8
27
90122-MCF-000
Bolt, Socket (8x30)
28
90128-KBP-900
Болт (8x16)
29
90151-MEL-000
Bolt (20x68.5)
30
90152-MEL-000
Bolt (20x51.5)
31
90161-MEL-000
Bolt, Flange (12x55)
32
90162-MEL-000
Bolt, Flange (12x70)
33
90163-MEL-000
Болт (12x50)
34
90164-MEL-000
Bolt, Flange (12x60)
35
90201-MW0-000
Nut, Lock (20mm)
36
91456-ME1-670
Cap (10mm)
37
94050-06000
Гайка (6mm)
38
94050-10000
Гайка(10mm)
39
94050-12000
Гайка (12mm)
40
96300-06018-00
Болт (6x18)
41
90128-KET-900
Болт (8x22)
