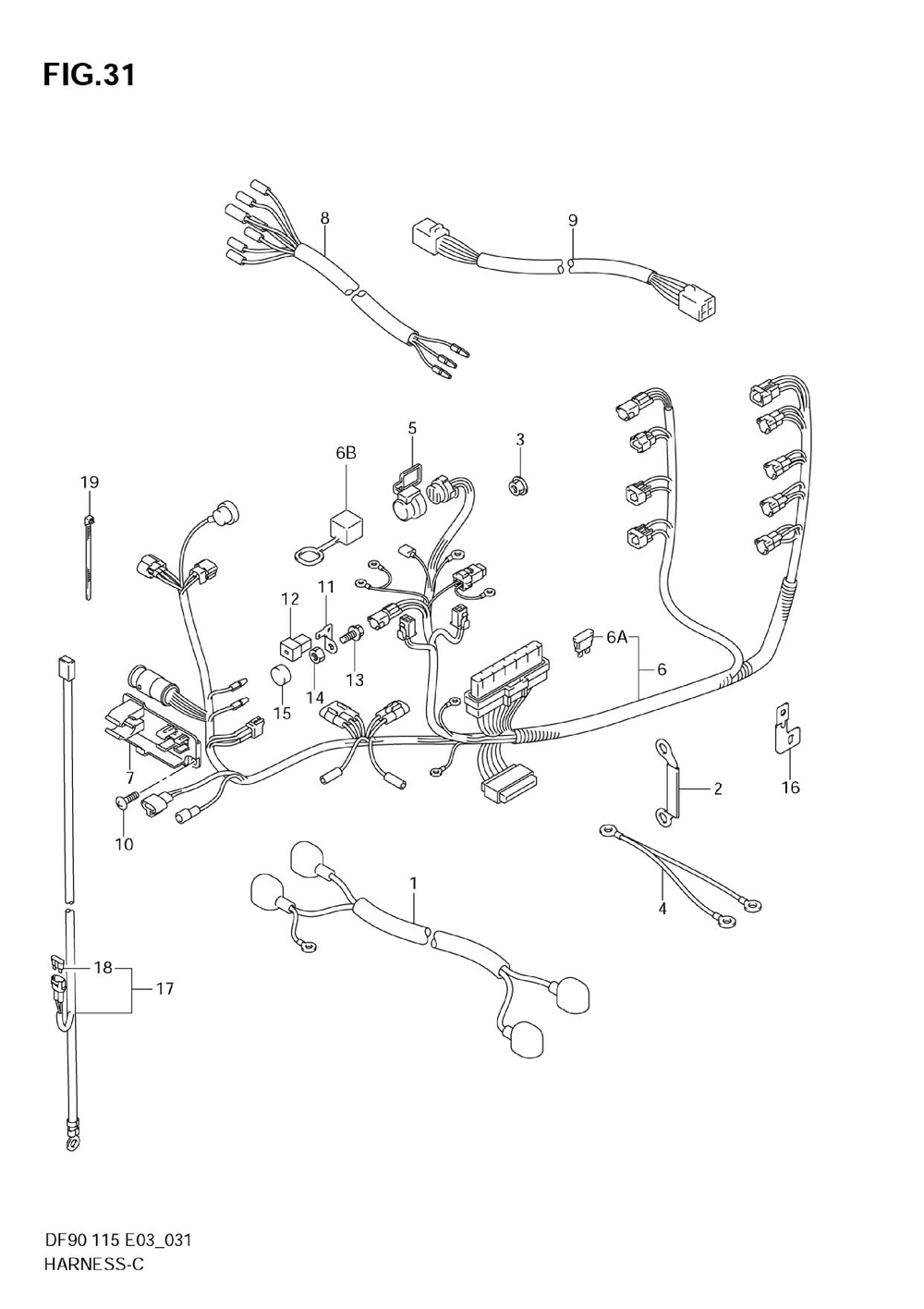

ПРОВОДКА

Suzuki Marine DF100-115
Suzuki Marine
#oem кодцена
1
33810-90J10
Cable Assy, Star ( )
2
33831-90J00
Plate, Ptt Relay (model:01~03 )
3
08316-10087
..nut ( )
4
33832-90J00
Cable Assy, Trim (model:01~03 )
5
33634-99E00
Cap, Service Con (model:01~07 )
6-1
36610-90J00
Harness Assy, Wi ( )
6-2
36610-90J20
Harness Assy, Wi (model:03 )
6-3
36610-90J30
Harness Assy, Wi (model:04 )
6-4
36610-90J60
Harness Assy, Wi (model:05~07 ->36610-90j60 )
6-5
36610-90J91
Harness Assy, Wi (model:08~09 )
6A
09481-30501
.fuse (30a) ( )
6B
33634-96J00
Cap, Service Con (model:08~09 )
7-1
36616-90J00
Holder, Remocon ( )
7-2
36616-90J10
Holder, Connecto (model:05~09 )
8
36630-92E00
Wire Assy, Instr (model:01~04 )
9-1
36682-92E00
Monitor Harness (model:01~04 )
9-2
36682-90J00
Wire, Trim Meter (opt Model:01~04 )
10
02142-06167
Screw ( )
11
36865-90J00
Terminal, Main F ( )
12
09481-60401
Fuse, 60amp ( )
13
01570-06107
Bolt ( )
14
08310-00067
.nut ( )
15
09251-09002
.cap ( )
16
36617-90J00
Bracket, Joint C (model:04~09 )
17-1
36625-93J00
Lead, Battery (l:3700 Model:05~09 )
17-2
36625-93J10
15a-batt-ecm-le (opt L:6500 Model:05~09 )
18
09481-15501
.fuse (15a) ( )
19
09407-14407
.clamp, Harness (l:140) (model:05~09 )
