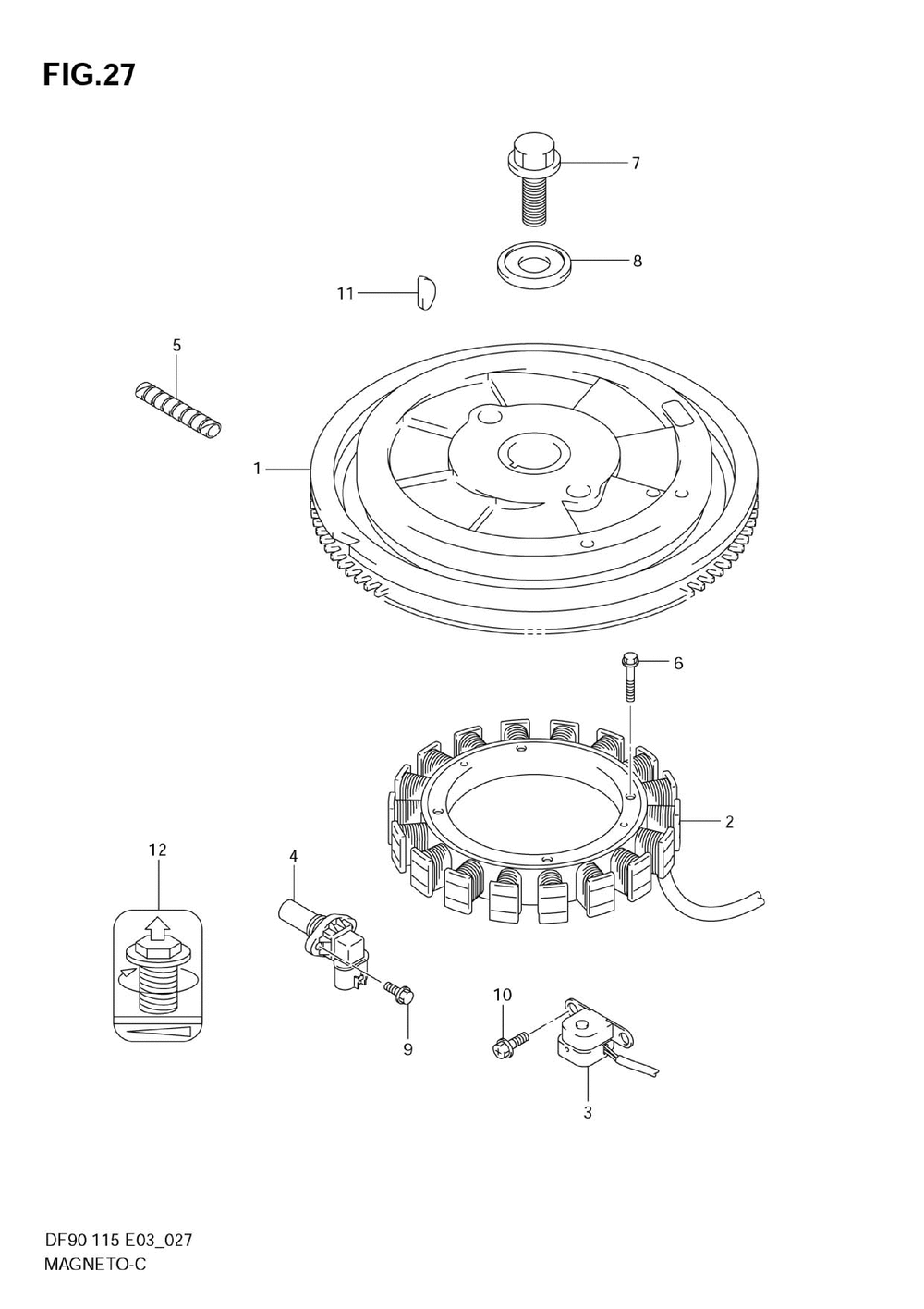

ГЕНЕРАТОР

Suzuki Marine DF100-115
Suzuki Marine
#oem кодцена
1-1
32102-90J00
Flywheel, Magnet (for 12220-90j01 )
1-2
32102-92J10
Flywheel Assy (df90:252072~ For 12220-92j00 )
2-1
32120-90J00
Coil, Btry Charg ( )
2-2
32120-90J10
Coil, Battery Ch (model:03~05 )
2-3
32120-90J20
Coil Comp, Batte (model:06~09 )
3-1
32160-87J00
Coil Assy, Ign T ( )
3-2
32160-87J10
Coil, Ignition T (model:03~09 )
4
33220-76G02
Sensor Assy, Cam ( )
5
33833-91J00
Tube, Sw Lead (l:250->100 <-38423-95510 )
6
09103-06231
Bolt (6x35) ( )
7-1
09103-16002
Bolt (16x45) (for 12220-90j01 )
7-2
09103-16003
Bolt (16x50) (df90:252072~ For 12220-92j00 )
8-1
09160-16047
Washer (16.5x48.5x4.5) (for 12220-90j01 )
8-2
09160-16048
Washer (16.5x60x7.0) (df90:252072~ For 12220-92j00 )
9
01550-06167
.bolt, Remocon Cable Holder ( )
10
02162-05167
Screw ( )
11
08341-31059
Key, Woodruff ( )
12
32118-90J00
Label, Mag Bolt ( )
3-2
32160-87L00
Coil Comp, Ign T (model:03~09 )
