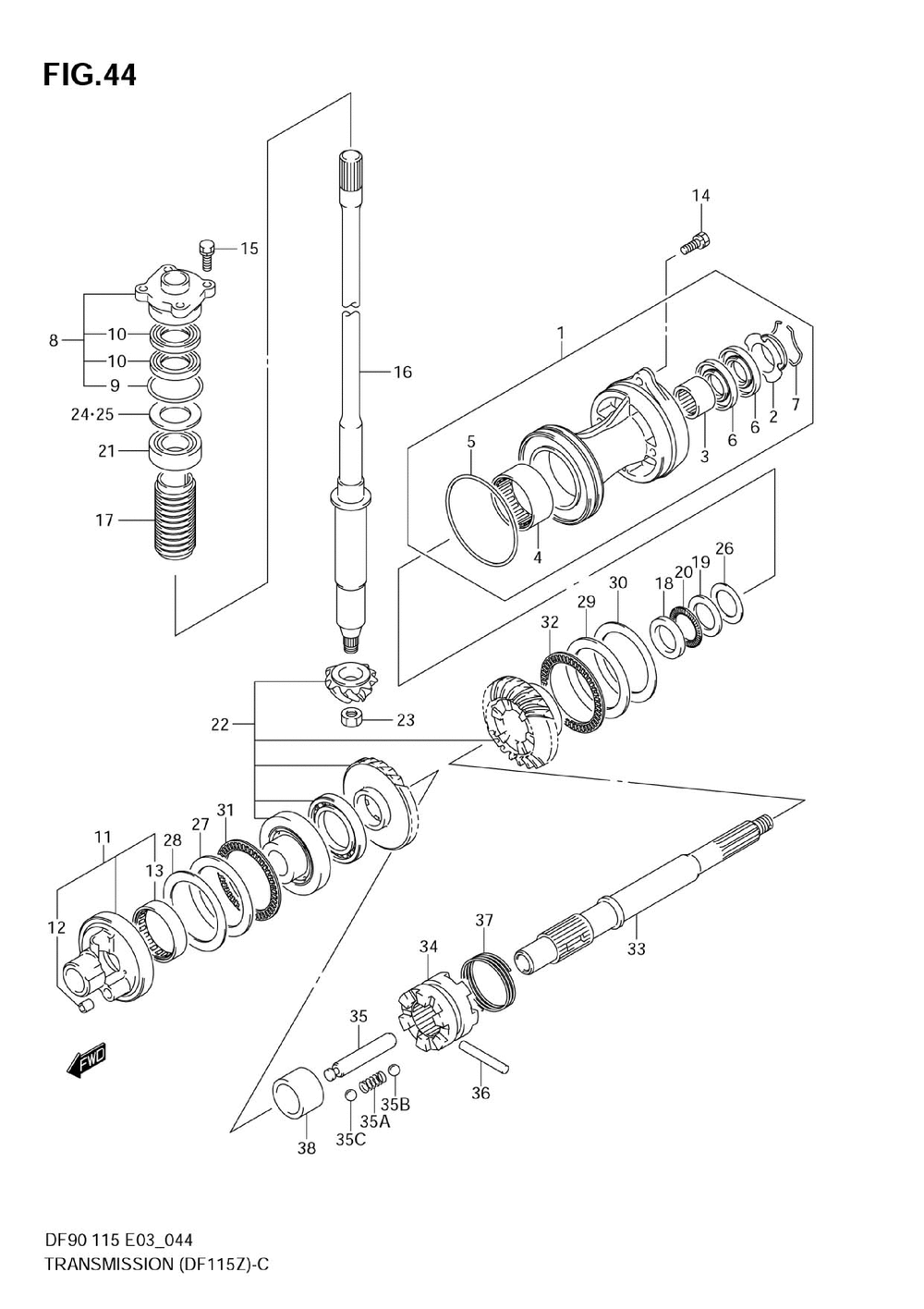

Transmission (df115z)
Transmission (df115z)

Transmission (df115z)

Suzuki Marine DF100-115

Transmission (df115z)

#

oem код

название

цена

1

56120-92J12-0EP

Housing Comp, Pr ( )

Housing Comp, Pr ( )

2

Washer, Oil Seal ( )

Washer, Oil Seal ( )

3

Needle Brng 30x ( )

Needle Brng 30x ( )

4

.bearing (50x62x25) ( )

.bearing (50x62x25) ( )

5

.o Ring (d:3.5, Id:95.0) ( )

.o Ring (d:3.5, Id:95.0) ( )

6

Seal, Oil ( )

Seal, Oil ( )

7

Set Ring (sus) ( )

Set Ring (sus) ( )

8

Hsg Comp, Drive ( )

Hsg Comp, Drive ( )

9

.o Ring (d:3.5, Id:45.7) ( )

.o Ring (d:3.5, Id:45.7) ( )

10

.oil Seal ( )

.oil Seal ( )

11

Housing, Rev Gea ( )

Housing, Rev Gea ( )

12

Pin ( )

Pin ( )

13

.bearing (45x52x16) ( )

.bearing (45x52x16) ( )

14

Bolt (8x30) ( )

Bolt (8x30) ( )

15

Bolt (8x25) ( )

Bolt (8x25) ( )

16

Shaft Comp, Driv ( )

Shaft Comp, Driv ( )

17

Collar ( )

Collar ( )

18

Washer, Prop Rev (30x47x6) (prop Shaft Rev )

Washer, Prop Rev (30x47x6) (prop Shaft Rev )

19

Washer, Prop Rev (32x47x3) (prop Shaft Rev )

Washer, Prop Rev (32x47x3) (prop Shaft Rev )

20

Bearing, Prop Shaft Rev Thrus (prop Shaft Rev )

Bearing, Prop Shaft Rev Thrus (prop Shaft Rev )

21

Bearing ( )

Bearing ( )

22

Pinion / Gear S ( )

Pinion / Gear S ( )

23

Nut ( )

Nut ( )

24

Shim Set, Drive ( )

Shim Set, Drive ( )

25-1

.shim (t:0.50) ( )

.shim (t:0.50) ( )

25-2

Shim ( )

Shim ( )

25-3

.shim (t:0.60) ( )

.shim (t:0.60) ( )

25-4

.shim (t:0.65) ( )

.shim (t:0.65) ( )

25-5

.shim (t:0.70) ( )

.shim (t:0.70) ( )

25-6

.shim (t:0.75) ( )

.shim (t:0.75) ( )

25-7

.shim (t:0.80) ( )

.shim (t:0.80) ( )

25-8

.shim (t:0.85) ( )

.shim (t:0.85) ( )

25-9

.shim (t:0.90) ( )

.shim (t:0.90) ( )

25-10

.shim (t:0.95) ( )

.shim (t:0.95) ( )

25-11

.shim (t:1.00) ( )

.shim (t:1.00) ( )

25-12

.shim (t:1.05) ( )

.shim (t:1.05) ( )

25-13

.shim (t:1.10) ( )

.shim (t:1.10) ( )

25-14

.shim (t:1.15) ( )

.shim (t:1.15) ( )

26-1

Washer, 35x46x0. (prop Shaft Rev )

Washer, 35x46x0. (prop Shaft Rev )

26-2

Washer, 35x46x0. ( )

Washer, 35x46x0. ( )

26-3

Washer, 35x46x0. ( )

Washer, 35x46x0. ( )

26-4

Washer, 35x46x0. ( )

Washer, 35x46x0. ( )

26-5

Washer, 35x46x0. ( )

Washer, 35x46x0. ( )

26-6

Washer, 35x46x1. ( )

Washer, 35x46x1. ( )

26-7

Washer, 35x46x1. ( )

Washer, 35x46x1. ( )

26-8

Washer, 35x46x1. ( )

Washer, 35x46x1. ( )

26-9

Washer, 35x46x1. ( )

Washer, 35x46x1. ( )

27

Washer, 60x85x3 (rev Gear )

Washer, 60x85x3 (rev Gear )

28-1

Washer (60x85x0.8) (rev Gear )

Washer (60x85x0.8) (rev Gear )

28-2

Washer (60x85x0.9) ( )

Washer (60x85x0.9) ( )

28-3

Washer (60x85x1.0) ( )

Washer (60x85x1.0) ( )

28-4

Washer (60x85x1.1) ( )

Washer (60x85x1.1) ( )

28-5

Washer (60x85x1.2) ( )

Washer (60x85x1.2) ( )

28-6

Washer (60x85x1.3) ( )

Washer (60x85x1.3) ( )

28-7

Washer (60x85x1.4) ( )

Washer (60x85x1.4) ( )

29

Washer (70x95x2.0) (fwd Gear )

Washer (70x95x2.0) (fwd Gear )

30-1

Shim (fwd Gear )

Shim (fwd Gear )

30-2

Shim, Forward Ge ( )

Shim, Forward Ge ( )

30-3

Shim ( )

Shim ( )

30-4

Shim, Forward Ge ( )

Shim, Forward Ge ( )

30-5

Shim ( )

Shim ( )

30-6

Shim, Forward Ge ( )

Shim, Forward Ge ( )

30-7

Shim ( )

Shim ( )

30-8

Shim, Forward Ge ( )

Shim, Forward Ge ( )

30-9

Shim ( )

Shim ( )

31

Rc 60x85x3 Brg (rev )

Rc 60x85x3 Brg (rev )

32

Rc 70x95x4 Brg (fwd )

Rc 70x95x4 Brg (fwd )

33

Shaft Comp, Prop ( )

Shaft Comp, Prop ( )

34

Shifter, Clutch ( )

Shifter, Clutch ( )

35

Pin, Connector ( )

Pin, Connector ( )

35A

Spring, Detent ( )

Spring, Detent ( )

35B

Ball, Detent No.1 ( )

Ball, Detent No.1 ( )

35C

Ball ( )

Ball ( )

36

Pin ( )

Pin ( )

37

Spring ( )

Spring ( )

38

Spacer, Clutch D ( )

Spacer, Clutch D ( )

16

Shaft, Drive (x) ( )

Shaft, Drive (x) ( )
