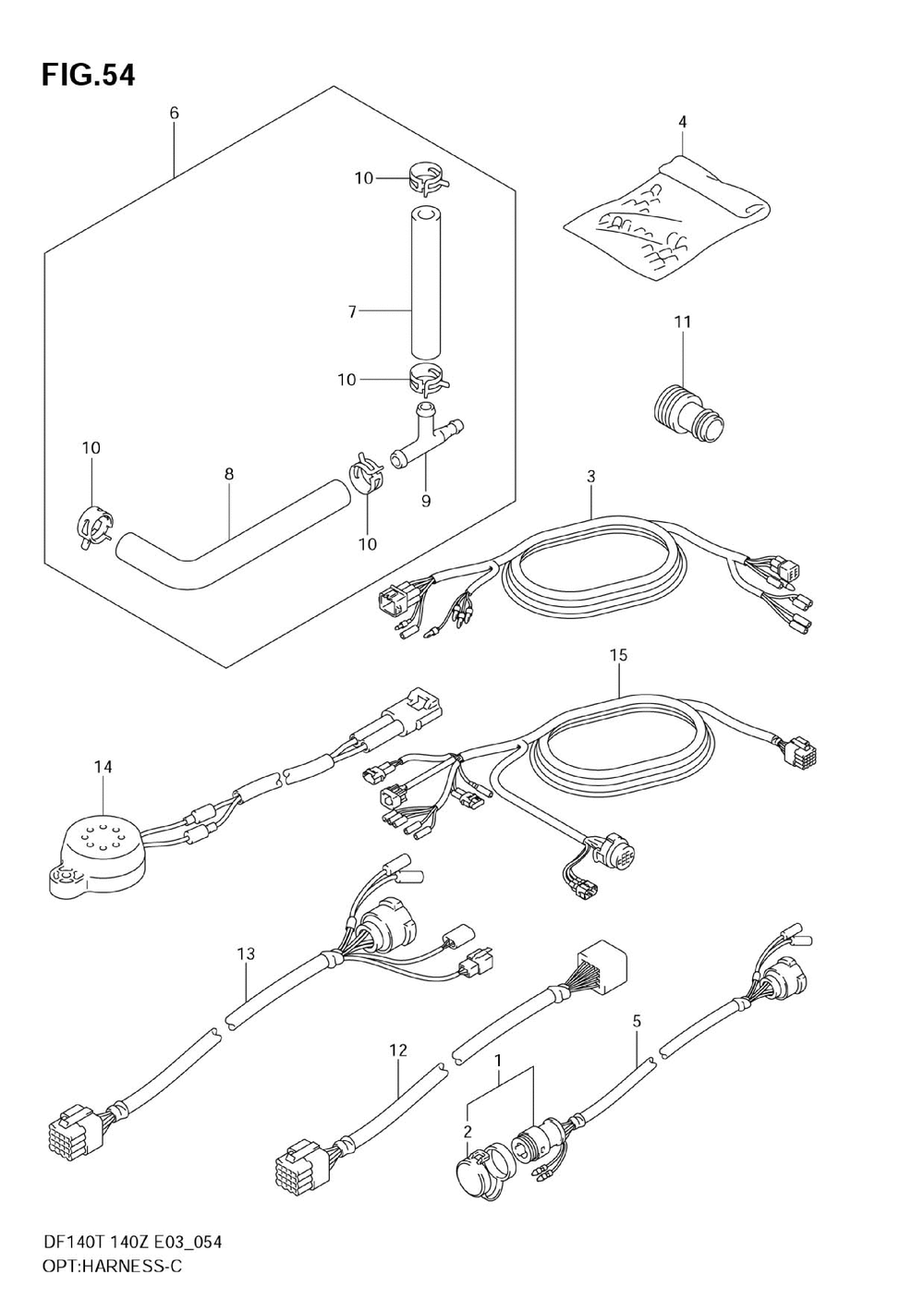

ОПЦИЯ:ЖГУТ ПРОВОДОВ

Suzuki Marine DF140T,Z
Suzuki Marine
#oem кодцена
1-1
36620-87D20
Harness Wiring (l:5000 Model:02~04 )
1-2
36620-95302
Harness Assy, Ex (l:2000 Model:02~04 )
2
36631-94300
Cap Remo Con Ha ( )
3-1
36660-94400
(l:6500 Model:02~04 )
3-2
36660-94480
Wire, Trim Gauge (l:2000 Model:02~04 )
4
36990-87D00
Terminal&sleeve ( )
5
36620-92E00
Wire Assy, Remoc (model:02~04 )
6
34660-90J01
Sub Kit, Water P ( )
7
09352-50903-600
.hose (l:600->160 )
9
09367-06006
.3 Way ( )
10
09401-08413
Clip ( )
11
17917-99E00
Connector, Flush ( )
12-1
36620-93J10
Main Harness Ex (l:2000 Model:05~09 )
12-2
36620-93J40
Harness Ext 10' (l:3000 Model:05~09 )
13-1
36620-93J20
Harnessadapter (l:2000 Model:04 )
13-2
36620-93J30
Harness Adapter (l:2000 Model:05~09 )
14
38500-93J00
Buzzer Assy, War (model:05~09 )
15-1
36620-93J01
Main Harness 21 (l:5000 )
15-2
36620-93J51
Main Harness 16 (l:3500 )
15-3
36620-93J61
Main Harness 26 (l:6500 )
