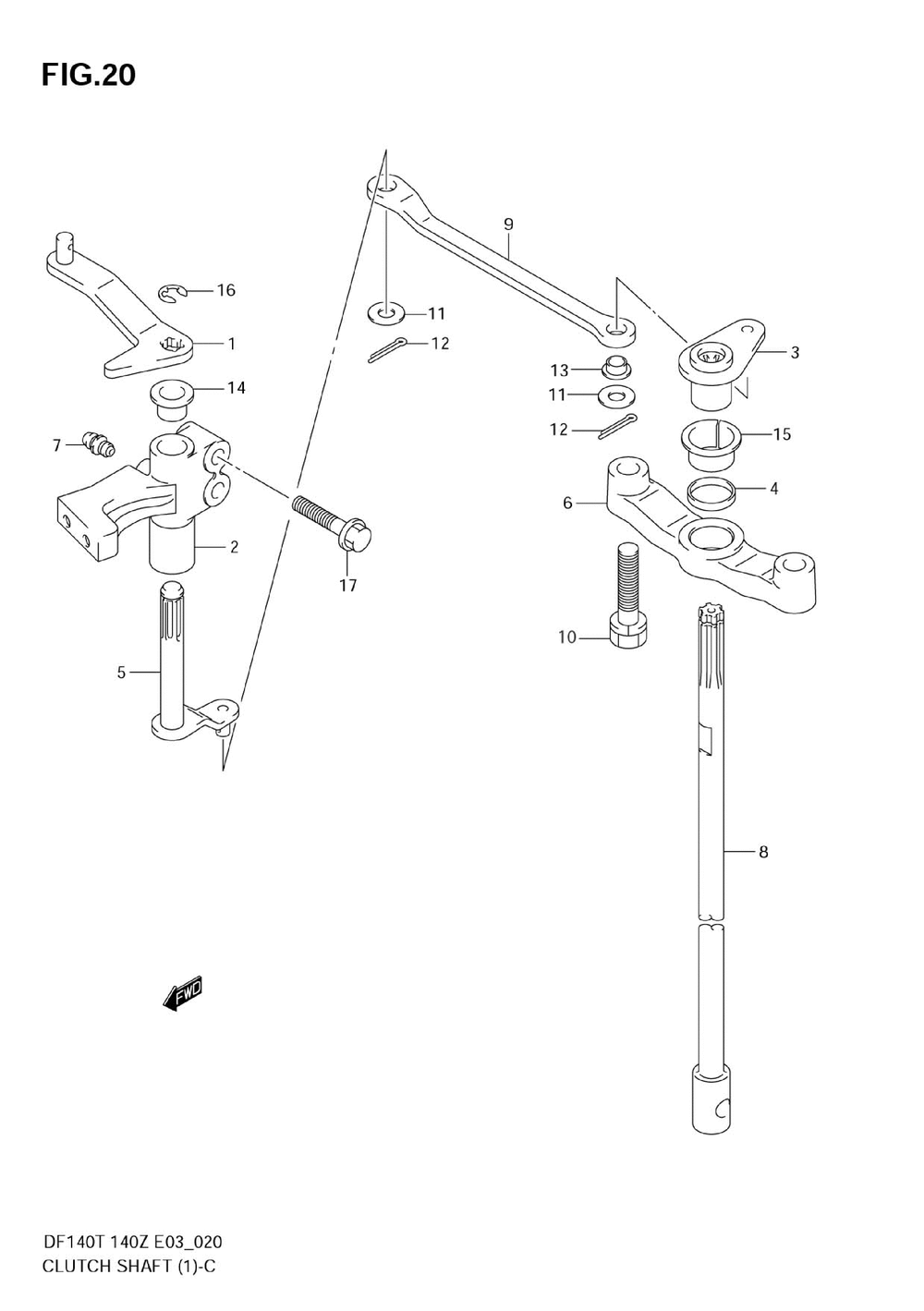

Suzuki Marine DF140T,Z

ВАЛ СЦЕПЛЕНИЯ

#

oem код

название

цена

1

Lever, Clutch ( )

Lever, Clutch ( )

2

Holder, Clutch L ( )

Holder, Clutch L ( )

3

Shaft, Clutch ( )

Shaft, Clutch ( )

4

Bush, Clutch Sha ( )

Bush, Clutch Sha ( )

5

Arm, Clutch Shaf ( )

Arm, Clutch Shaf ( )

6

Holder, Clutch S ( )

Holder, Clutch S ( )

7

Nipple, Grease ( )

Nipple, Grease ( )

8-1

Rod, Clutch (l) (df140t )

Rod, Clutch (l) (df140t )

8-2

Rod, Clutch (x) (df140t, 140z )

Rod, Clutch (x) (df140t, 140z )

9

Link, Clutch Lev ( )

Link, Clutch Lev ( )

10

.bolt (8x35) ( )

.bolt (8x35) ( )

11

Washer (6.5x15x1.5) ( )

Washer (6.5x15x1.5) ( )

12

Pin ( )

Pin ( )

13

Bush, Clutch Lever Link ( )

Bush, Clutch Lever Link ( )

14

Bush ( )

Bush ( )

15

Bush, Clutch Shaft ( )

Bush, Clutch Shaft ( )

16

E Ring ( )

E Ring ( )

17

Bolt ( Refer To Fig.22(d- 4) For Df140t:682149~, Df140z:680234~ )

Bolt ( Refer To Fig.22(d- 4) For Df140t:682149~, Df140z:680234~ )
