Картер (Gear Case) (DF140T/WT) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF140T,Z (2009)

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2009
DF140T,Z

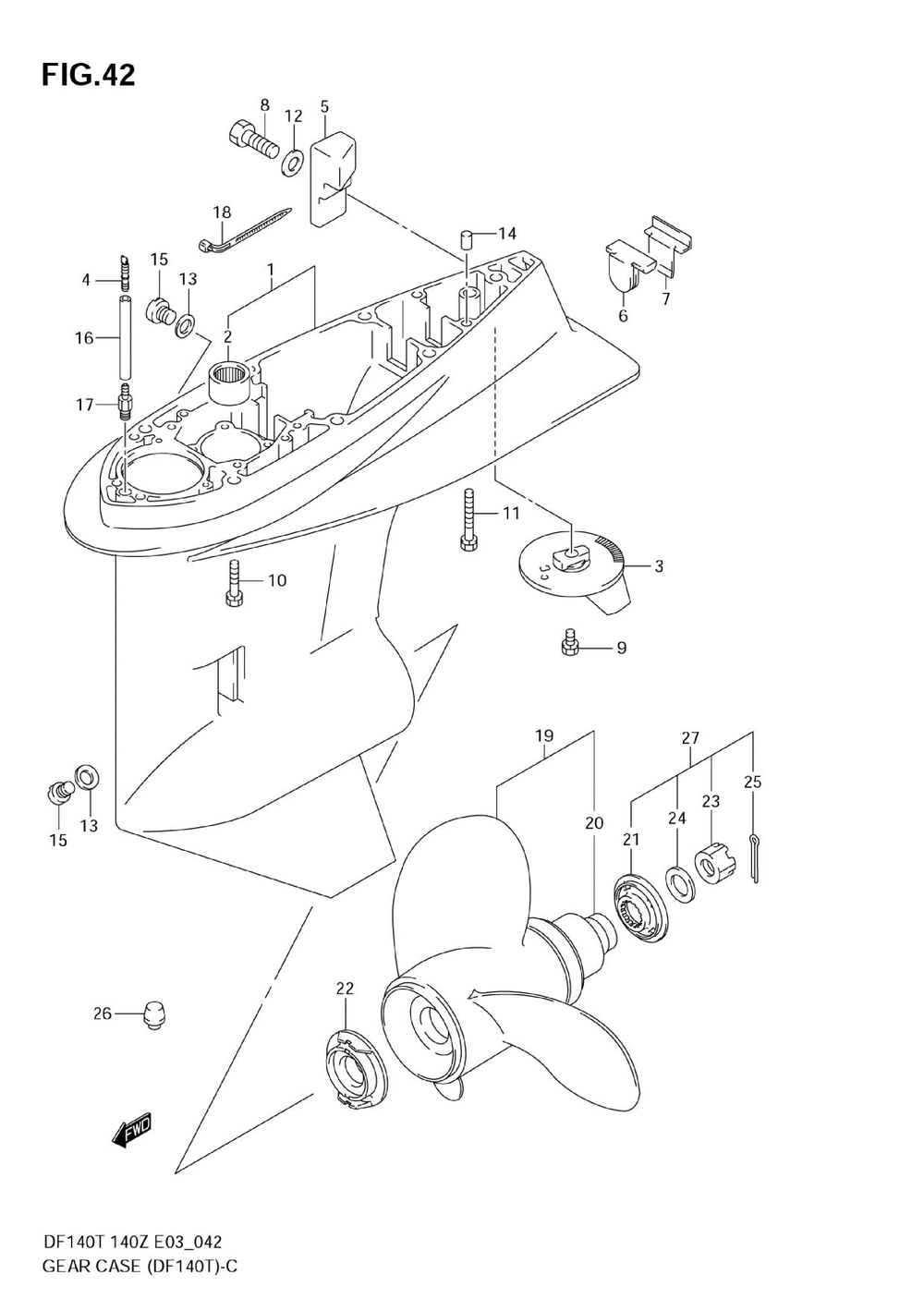

Картер (Gear Case) (DF140T/WT)
Картер (Gear Case) (DF140T/WT)

Картер (Gear Case) (DF140T/WT)

Suzuki Marine DF140T,Z

oem код

название

цена

Case Comp, Gear ( )

.bearing, Pinion ( )

Tab, Trim ( )

Union, Speedomet ( )

Anode, Gear Case ( )

Rubber, Exhaust ( )

Plate, Exhaust S ( )

.bolt (6x12) ( )

Bolt, 8x22 ( )

10-1

Bolt, 10x55 ( )

Bolt (10x80) ( )

Washer ( )

Gasket (10x17x1.5) ( )

09202-08006

Pin ( )

09248-10008

Plug (10x7.5) ( )

16-1

09355-40805-00B

Hose (type:x L:2000->1100 )

09362-09008

Nipple ( )

09407-14407

.clamp, Harness (l:140) ( )

19-1

58100-90J01-019

Prop 17p Df90-1 ( )

19-2

58100-90J11-019

Prop 19p Df90-1 ( )

19-3

58100-90J21-019

Prop 21p Df90-1 ( )

19-4

58100-90J31-019

Prop 23p Df90-1 ( )

19-5

58100-90J41-019

Prop 15p Df90-1 ( )

19-6

99105-00700-18P

Ss Prop Df 90-1 (not For Us Market )

58120-90J00

Bushing, Propel ( Refer To Fig.43(g- 4) For Df140z )

Spacer, Propelle ( )

Stopper, Propell ( )

Nut ( )

Washer (18.5x31x1.0) ( )

09204-03003

Cotter Pin (l:25) ( )

55116-87E00

Plug, Gear Case (opt )

57630-90J00

Prop Hdwr Df 90 (opt )

25700-92J00

Lu Seal Kit Df1 (opt Not Shown )
