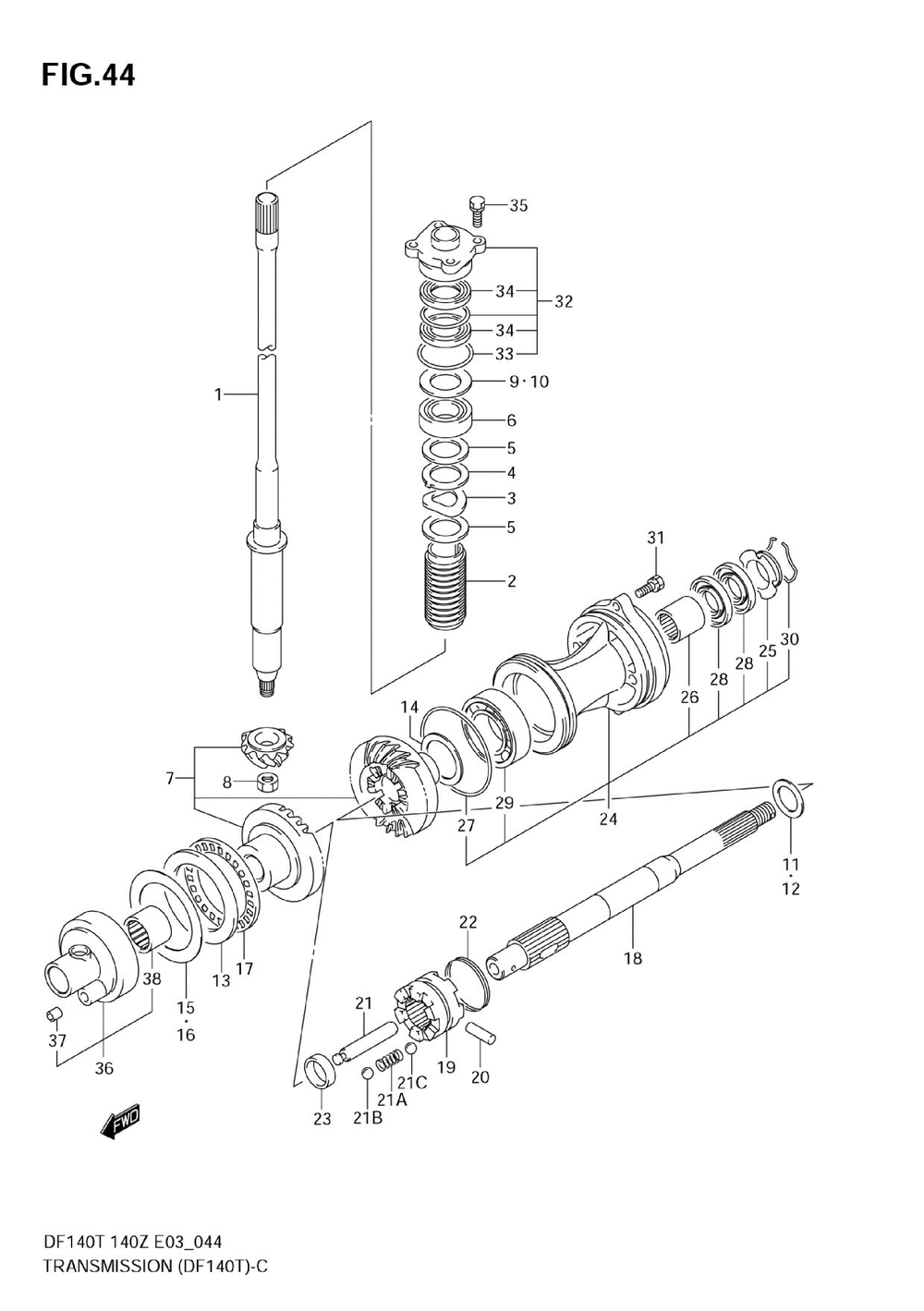

Трансмиссия (DF140T, DF140WT)
Трансмиссия (DF140T, DF140WT)

Трансмиссия (DF140T, DF140WT)

Suzuki Marine DF140T,Z

Трансмиссия (DF140T, DF140WT)

#

oem код

название

цена

1-1

Shaft, Drive (l) ( )

Shaft, Drive (l) ( )

1-2

Shaft Comp, Driv (model:04~06 )

Shaft Comp, Driv (model:04~06 )

1-4

Shaft, Drive (ul ( )

Shaft, Drive (ul ( )

1-5

Shaft Comp, Driv (model:04~06 )

Shaft Comp, Driv (model:04~06 )

2

Collar ( )

Collar ( )

3

Washer, Wave (model:02,03 )

Washer, Wave (model:02,03 )

4

Washer (model:02, 03 )

Washer (model:02, 03 )

5

Washer (model:02, 03 )

Washer (model:02, 03 )

6

Bearing ( )

Bearing ( )

7-1

Pinion/gear Set ( )

Pinion/gear Set ( )

7-2

Pinion / Gear S (df140t:682149~ )

Pinion / Gear S (df140t:682149~ )

7-3

Pinion / Gear S (model:07~09 )

Pinion / Gear S (model:07~09 )

8-1

Nut ( )

Nut ( )

8-2

Nut (model:07~09 )

Nut (model:07~09 )

9

Shim Set, Drive ( )

Shim Set, Drive ( )

10-1

.shim (t:0.50) ( )

.shim (t:0.50) ( )

10-2

Shim ( )

Shim ( )

10-3

.shim (t:0.60) ( )

.shim (t:0.60) ( )

10-4

.shim (t:0.65) ( )

.shim (t:0.65) ( )

10-5

.shim (t:0.70) ( )

.shim (t:0.70) ( )

10-6

.shim (t:0.75) ( )

.shim (t:0.75) ( )

10-7

.shim (t:0.80) ( )

.shim (t:0.80) ( )

10-8

.shim (t:0.85) ( )

.shim (t:0.85) ( )

10-9

.shim (t:0.90) ( )

.shim (t:0.90) ( )

10-10

.shim (t:0.95) ( )

.shim (t:0.95) ( )

10-11

.shim (t:1.00) ( )

.shim (t:1.00) ( )

10-12

.shim (t:1.05) ( )

.shim (t:1.05) ( )

10-13

.shim (t:1.10) ( )

.shim (t:1.10) ( )

10-14

.shim (t:1.15) ( Refer To Fig.45(g- 9) For Df140z )

.shim (t:1.15) ( Refer To Fig.45(g- 9) For Df140z )

11

Shim Set, Revers ( )

Shim Set, Revers ( )

12-1

.washer (30x38x1.5) ( )

.washer (30x38x1.5) ( )

12-2

.washer (30x38x1.7) ( )

.washer (30x38x1.7) ( )

12-3

Washer (30x38x1.9) ( )

Washer (30x38x1.9) ( )

12-4

.washer (30x38x2.1) ( )

.washer (30x38x2.1) ( )

12-5

.washer (30x38x2.3) ( )

.washer (30x38x2.3) ( )

12-6

.washer (30x38x2.4) ( )

.washer (30x38x2.4) ( )

12-7

.washer (30x38x2.6) ( )

.washer (30x38x2.6) ( )

12-8

.washer (30x38x2.7) ( )

.washer (30x38x2.7) ( )

12-9

.washer (30x38x2.8) ( )

.washer (30x38x2.8) ( )

13

Washer (70x95x5.25) (fwd Gear )

Washer (70x95x5.25) (fwd Gear )

14-1

Shim (rev Gear )

Shim (rev Gear )

14-2

Shim (t:1.1) ( )

Shim (t:1.1) ( )

14-3

Shim ( )

Shim ( )

14-4

Shim ( )

Shim ( )

14-5

Shim ( )

Shim ( )

14-6

Shim ( )

Shim ( )

14-7

Shim ( )

Shim ( )

15

Shim Set, Forwar ( )

Shim Set, Forwar ( )

16-1

Shim ( )

Shim ( )

16-2

Shim ( )

Shim ( )

16-3

Shim ( )

Shim ( )

16-4

Shim ( )

Shim ( )

16-5

Shim ( )

Shim ( )

16-6

Shim, Forward Ge ( )

Shim, Forward Ge ( )

16-7

Shim, Forward Ge ( )

Shim, Forward Ge ( )

16-8

Shim, Forward Ge ( )

Shim, Forward Ge ( )

16-9

Shim, Forward Ge ( )

Shim, Forward Ge ( )

17

Rc 70x95x4 Brg (fwd Gear )

Rc 70x95x4 Brg (fwd Gear )

18-1

Shaft Comp, Prop ( )

Shaft Comp, Prop ( )

18-2

Shaft Comp, Prop (df140t:682149~ )

Shaft Comp, Prop (df140t:682149~ )

19-1

Shifter, Clutch ( )

Shifter, Clutch ( )

19-2

Shifter, Clutch (df140t:682149~ )

Shifter, Clutch (df140t:682149~ )

20

Pin ( )

Pin ( )

21-1

Pin, Connector ( )

Pin, Connector ( )

21-2

Pin, Connector (df140t:682149~ )

Pin, Connector (df140t:682149~ )

21A

Spring, Detent (df140t:682149~ )

Spring, Detent (df140t:682149~ )

21B

Ball, Detent No.1 (df140t:682149~ )

Ball, Detent No.1 (df140t:682149~ )

21C

Ball (df140t:682149~ )

Ball (df140t:682149~ )

22-1

Spring Dog ( )

Spring Dog ( )

22-2

Spring (model:03~09 )

Spring (model:03~09 )

23

Spacer, Clutch D ( )

Spacer, Clutch D ( )

24

56120-92J01-0EP

Housing, Prop Sh ( )

Housing, Prop Sh ( )

25

Washer, Oil Seal ( )

Washer, Oil Seal ( )

26

Needle Brng 30x ( )

Needle Brng 30x ( )

27

.o Ring (d:3.5, Id:95.0) ( )

.o Ring (d:3.5, Id:95.0) ( )

28

Seal, Oil ( )

Seal, Oil ( )

29

.bearing ( )

.bearing ( )

30

Set Ring (sus) ( )

Set Ring (sus) ( )

31

Bolt (8x30) ( )

Bolt (8x30) ( )

32

Hsg Comp, Drive ( )

Hsg Comp, Drive ( )

33

.o Ring (d:3.5, Id:45.7) ( )

.o Ring (d:3.5, Id:45.7) ( )

34

.oil Seal ( )

.oil Seal ( )

35

Bolt (8x25) ( )

Bolt (8x25) ( )

36

Housing, Fwd Gea ( )

Housing, Fwd Gea ( )

37-1

Pin ( )

Pin ( )

38

.bearing (50x62x25) ( )

.bearing (50x62x25) ( )

1-5

Shaft, Drive (x) (model:04~06 )

Shaft, Drive (x) (model:04~06 )
