МАСЛЯНЫЙ НАСОС
МАСЛЯНЫЙ НАСОС

МАСЛЯНЫЙ НАСОС

Suzuki Marine DF140T,Z

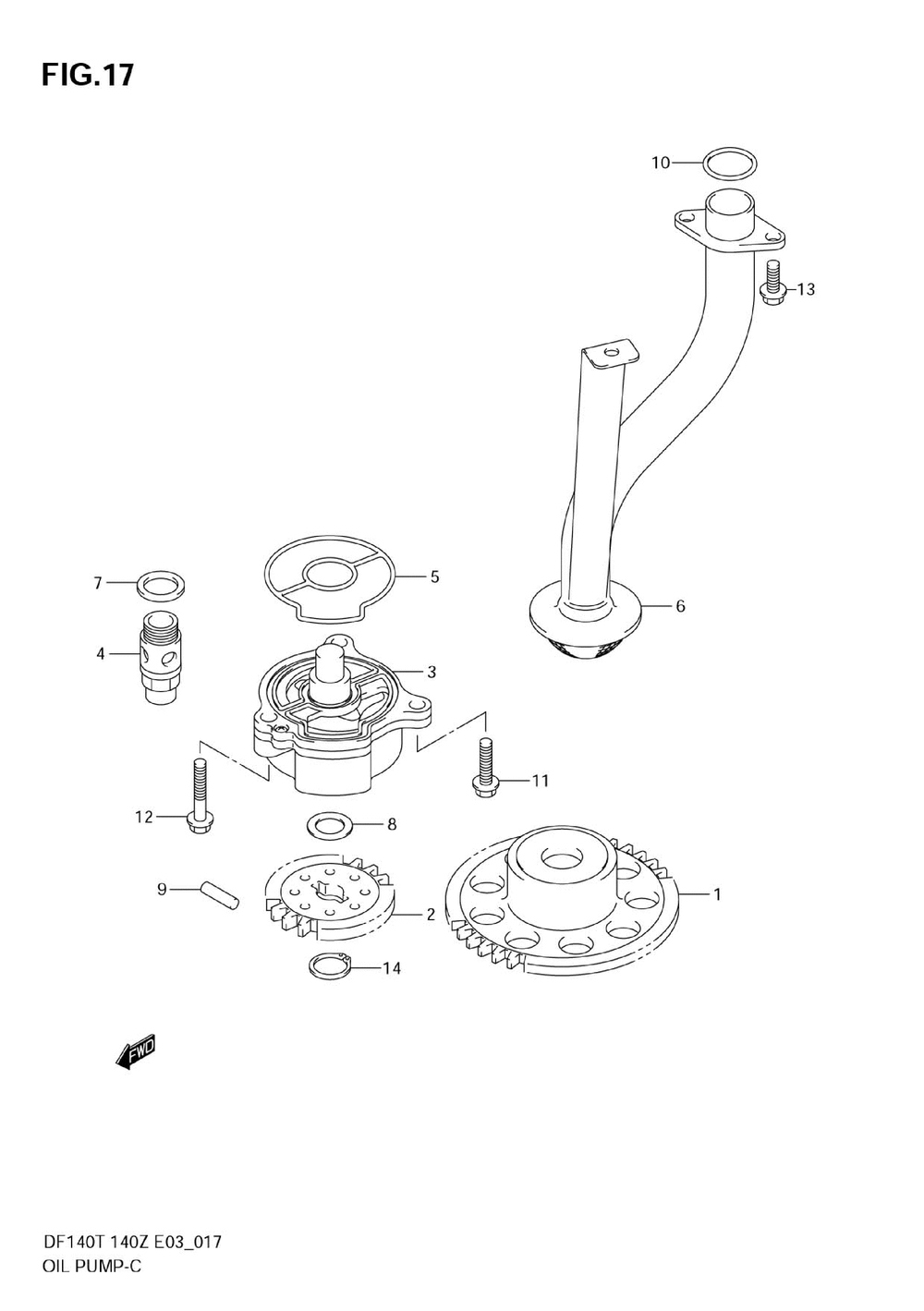

МАСЛЯНЫЙ НАСОС

#

oem код

название

цена

1-1

Gear Set, Oil Pu (->12630-92810 (drive+driven) )

Gear Set, Oil Pu (->12630-92810 (drive+driven) )

1-2

Gear, Oil Pump D (df140t:425120~ Df140z:421437~ )

Gear, Oil Pump D (df140t:425120~ Df140z:421437~ )

2-1

Gear, Oil Pump D (->12630-92810 (drive+driven) )

Gear, Oil Pump D (->12630-92810 (drive+driven) )

2-2

Gear, Oil Pump D (df140t:425120~ Df140z:421437~ )

Gear, Oil Pump D (df140t:425120~ Df140z:421437~ )

3

Pump Assy, Oil ( )

Pump Assy, Oil ( )

4

Valve Assy, Oil ( )

Valve Assy, Oil ( )

5

O Ring, Oil Pump ( )

O Ring, Oil Pump ( )

6

Strainer, Oil Pu ( )

Strainer, Oil Pu ( )

7

Gasket (16x22x2.0) ( )

Gasket (16x22x2.0) ( )

8

Washer (12x20x0.5) ( )

Washer (12x20x0.5) ( )

9

Pin ( )

Pin ( )

10-1

O Ring (d:2.4, Id:21.8) (df140t:684376~ Df140z:680510~ )

O Ring (d:2.4, Id:21.8) (df140t:684376~ Df140z:680510~ )

11

Bolt ( )

Bolt ( )

12

Bolt ( )

Bolt ( )

13

Bolt ( )

Bolt ( )

14

Circlip, Gear Shift Lever ( )

Circlip, Gear Shift Lever ( )
