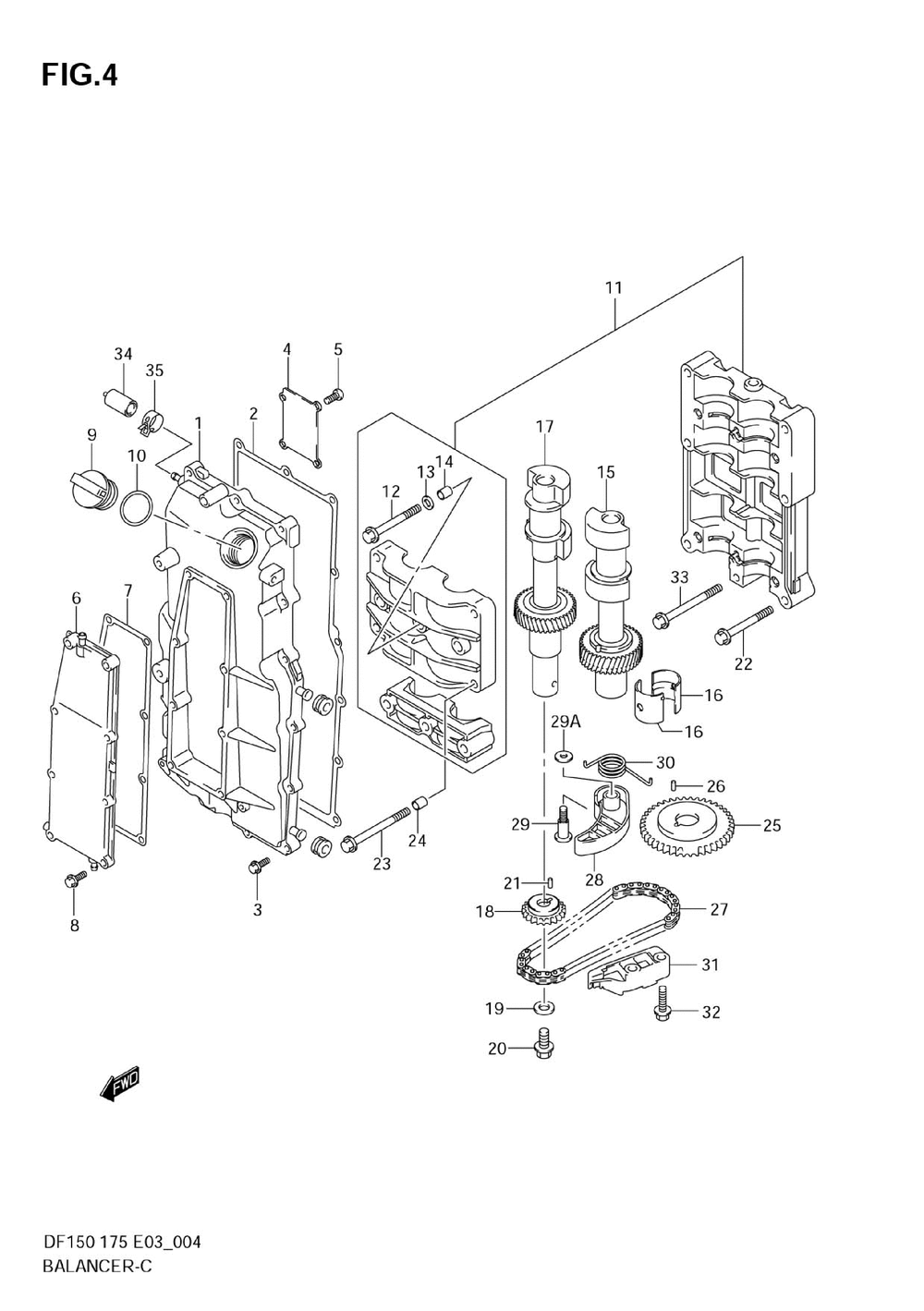

Балансирный вал

Suzuki Marine DF150 175
Suzuki Marine
#oem кодцена
1-1
11330-96J00
Cover Comp, Bala ( )
1-2
11330-96J10
Cover, Balancer (df150t:782346~ Df175z:780481~ )
2
11332-96J00
Gasket, Balancer ( )
3
01550-06257
..bolt ( )
4
11345-96J00
Plate, Balancer (df150t:~782345 Df175z:~780480 )
5
02112-0612A
Screw (df150t:~782345 Df175z:~780480 )
6
11340-96J00
Cover Comp, Bala ( )
7
11342-96J00
Gasket, Bal Wtr ( )
9
11382-93J00
Cap, Oil Filler ( )
10
09280-26006
O Ring (d:3.1, Id:26.4) ( (id:26.4, Dd:3.1) )
11
12600-96J00
Housing Assy, Ba ( )
12
12643-96J00
Bolt, Balancer ( )
13
12644-96J00
Washer ( )
14
04211-11129
.pin ( )
15
12605-96J01
Shaft Assy, Bala ( )
16
12645-96J00
Bearing ( )
17
12650-96J00
Balancer Comp ( )
18
12665-96J00
Sprocket, Bal Dr ( )
19
09160-10039
Washer (10.5x22x2.3) ( (10.5x22x2.3) )
20
01550-1020A
Bolt, Bal Sprocket ( )
21
04221-04089
Pin ( )
22
09103-08414
Bolt, Bal Housing No.1 (8x53) ( )
23
09103-08423
Bolt, Bal Housing No.3 (8x80) ( )
25
12662-96J00
Sprocket, Bal Dr ( )
26
09202-05032
Pin, Camshaft Ti ( )
27
12670-96J00
Chain Comp, Bala ( )
28-1
12671-96J00
Tensioner, Balan (->12670-96810 Bolt & Tensioner Set )
28-2
12671-96J01
Tensioner, Balan (model:09 )
29-1
12672-96J00
Bolt, Bal Chain (->12670-96810 Bolt & Tensioner Set )
29-2
12672-96J01
Bolt, Balncr Cha (model:09 )
29A
09160-08079
Washer (model:09 (8x17x2.0) )
30
12673-96J00
Spring, Bal Chai ( )
31
12695-96J00
Guide, Balancer ( )
32
01550-0825A
Bolt ( )
33
09103-08158
Bolt, Bal Housing No.2 (8x75) ( )
34
09251-05006
Plug (df150t:780701~782345 Df175z:780119~780480 )
35
09401-10411
Clip (df150t:780701~782345 Df175z:780119~780480 )
