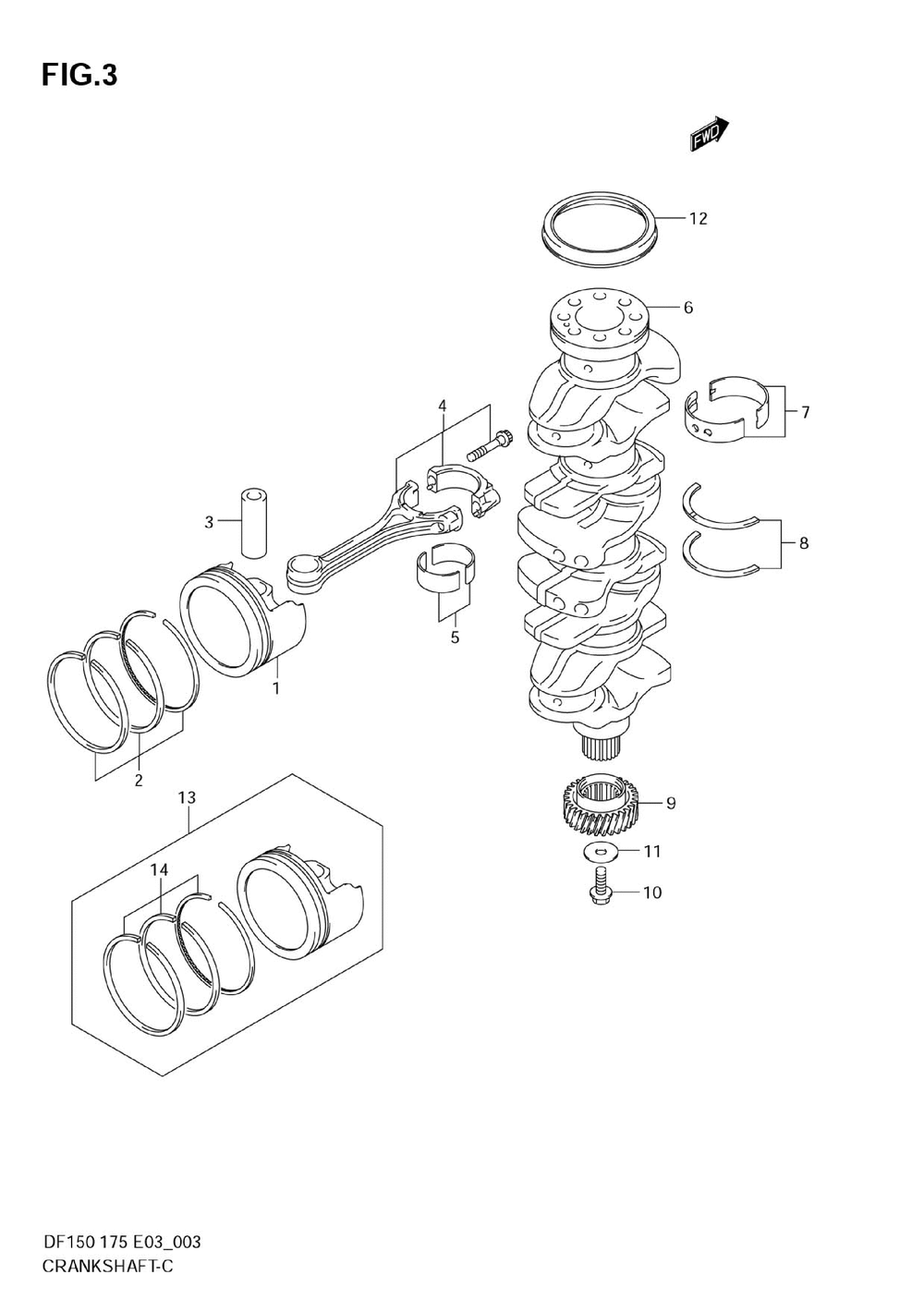

КОЛЕНЧАТЫЙ ВАЛ

Suzuki Marine DF150 175
Suzuki Marine
#oem кодцена
1
12111-96J01-0B0
Piston ( )
2
12140-96J00
Ring Set, Piston ( )
3
12151-96J00
Pin, Piston ( )
4
12160-96J00
Connrod Assy ( )
5-1
12100-96810-0A0
Bearing Set, Con ( )
5-2
12100-96810-025
Bearing Set, Con (opt )
6-1
12221-96J00
Crankshaft ( )
6-2
12221-96J10
Crankshaft (df150t:681545~ Df175z:680174~ )
7-1
12340-96J00-0B0
Bearing Set, Cra ( (black) )
7-2
12340-96J00-0C0
Bearing Set, Cra ( (non) )
7-3
12340-96J00-0D0
Bearing Set, Cra ( (yellow) )
7-4
12340-96J00-0E0
Bearing Set, Cra ( (blue) )
7-5
12340-96J00-0F0
Bearing Set, Cra ( (pink) )
7-6
12300-96810-0BA
Bearing Set, Cra (us:0.25 (red/black) )
7-7
12300-96810-0CA
Bearing Set, Cra (us:0.25 (red) )
7-8
12300-96810-0DA
Bearing Set, Cra (us:0.25 (red/yellow) )
7-9
12300-96810-0EA
Bearing Set, Cra (us:0.25 (red/blue) )
7-10
12300-96810-0FA
Bearing Set, Cra (us:0.25 (red/pink) )
8-1
12300-85830
Bearing Set, Cra ( )
8-2
12300-85830-012
Bearing Set, Cra (opt (os:0.25) )
9
12242-96J00
Gear, Drive ( )
10
09103-10229
Bolt, Crankshaft (10x32) ( )
11
09160-10120
Washer, Crankshaft (10x42x3) ( )
12
09283-91001
Seal, Crankshaft ( )
13
12100-96J01-050
Piston Set, Os(0 (opt )
14
12140-96J00-050
Ring Set, Piston (opt Model. Part Number 99104-dfkit-008. )
