ГОЛОВКА ЦИЛИНДРА Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF150 175 (2009)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2009
DF150 175

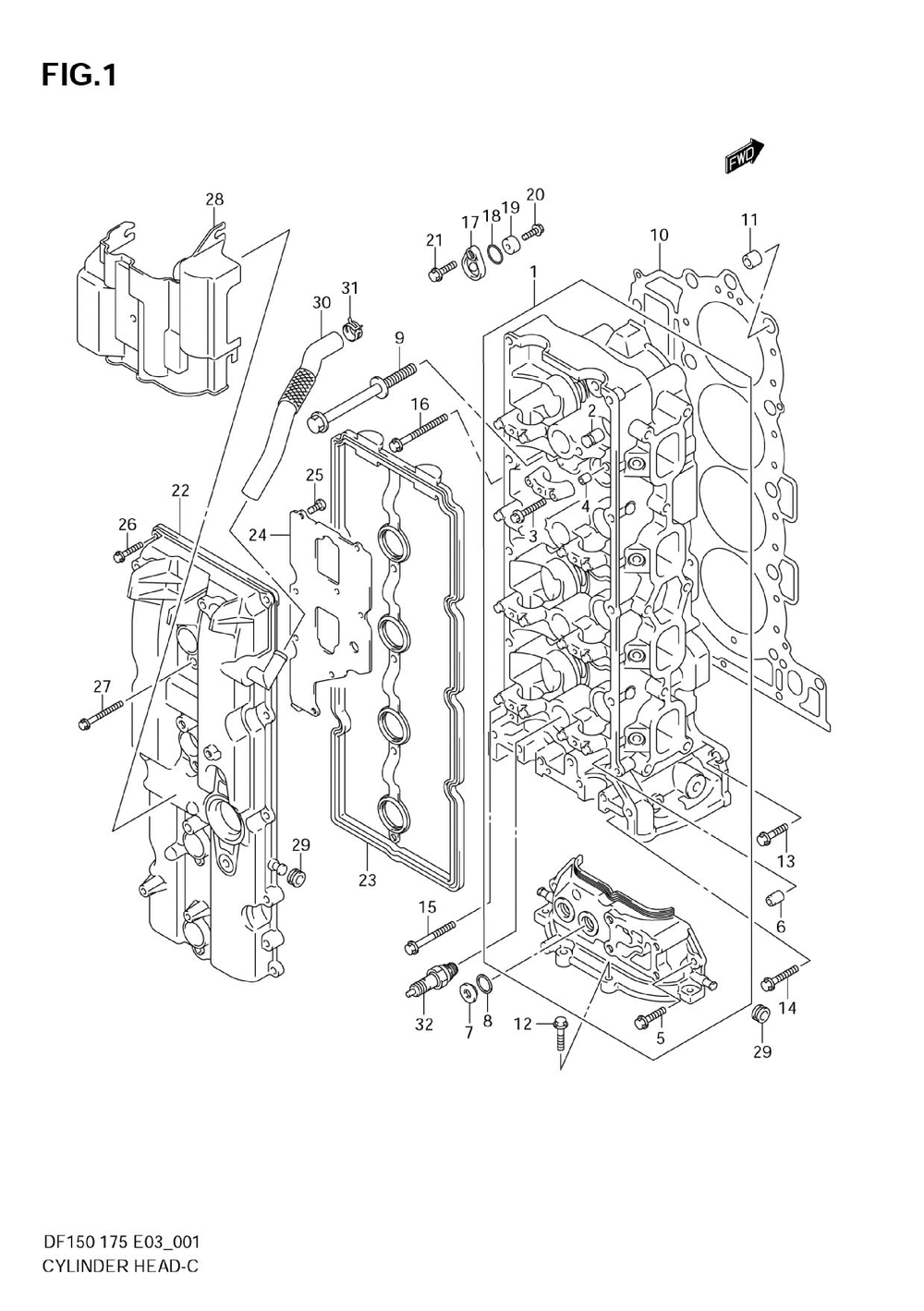

ГОЛОВКА ЦИЛИНДРА
ГОЛОВКА ЦИЛИНДРА

ГОЛОВКА ЦИЛИНДРА

Suzuki Marine DF150 175

ГОЛОВКА ЦИЛИНДРА

#

oem код

название

цена

1

Cylinder Head, S ( )

Cylinder Head, S ( )

2

11115-93J00-001

Guide, Valve Os ( )

Guide, Valve Os ( )

3

Bolt, Camshaft H ( )

Bolt, Camshaft H ( )

4

Pin ( )

Pin ( )

5

Bolt, Lower ( )

Bolt, Lower ( )

6

Plug, Oil Ventur ( )

Plug, Oil Ventur ( )

7

Plug ( )

Plug ( )

8

Gasket ( )

Gasket ( )

9

Bolt, Cylinder H ( )

Bolt, Cylinder H ( )

10

Gasket, Cyl Head ( )

Gasket, Cyl Head ( )

11

Pin ( )

Pin ( )

12

..bolt, Upper ( )

..bolt, Upper ( )

14

Bolt ( )

Bolt ( )

15

Bolt ( )

Bolt ( )

16

Bolt, Throttle Body ( )

Bolt, Throttle Body ( )

17

Cover, Protction ( )

Cover, Protction ( )

18

O Ring ( )

O Ring ( )

19

Anode, Protectio ( )

Anode, Protectio ( )

20

Bolt (6x14) ( )

Bolt (6x14) ( )

21

..bolt, Lower ( )

..bolt, Lower ( )

22-1

Cover Comp, Cyli (df150 )

Cover Comp, Cyli (df150 )

22-2

Cover Comp, Cyli (df175 )

Cover Comp, Cyli (df175 )

23

Gasket, Cylinder ( )

Gasket, Cylinder ( )

24

Plate, Breather ( )

Plate, Breather ( )

25

Screw ( )

Screw ( )

26

Bolt ( )

Bolt ( )

27

Bolt ( )

Bolt ( )

28

Guide, Air Intak ( )

Guide, Air Intak ( )

29

Grommet, Air Duct ( )

Grommet, Air Duct ( )

30

Hose, Breather ( )

Hose, Breather ( )

31

Clip ( )

Clip ( )

32

Spark Plug Bkr6 ( )

Spark Plug Bkr6 ( )
