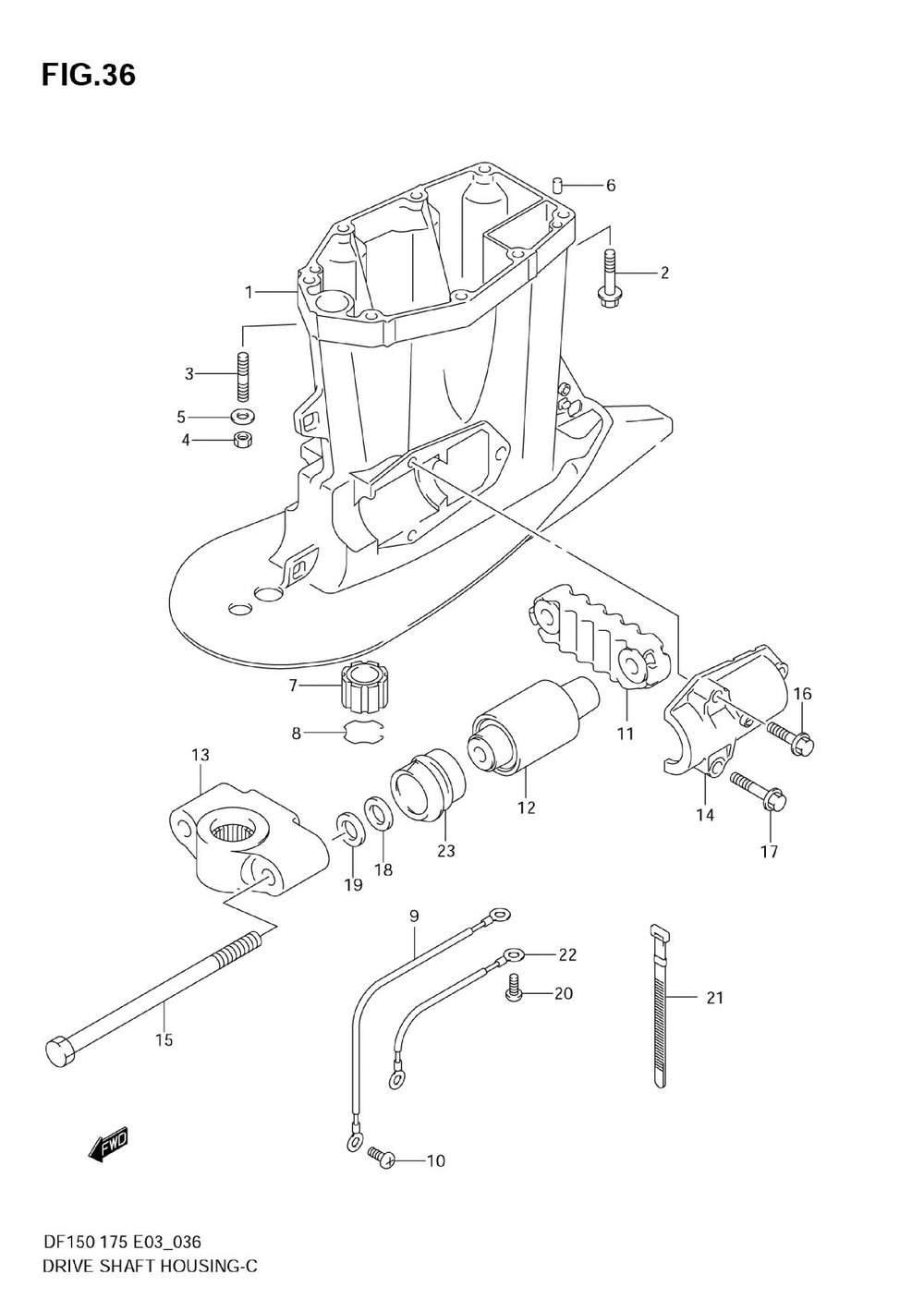

КОРПУС ПРИВОДНОГО ВАЛА

Suzuki Marine DF150 175
Suzuki Marine
#oem кодцена
1-1
52111-96J00-0EP
Housing, Drive S ( )
1-2
52111-96J10-0EP
Housing, Drive S ( )
2-1
09116-10139
Bolt, Drive Shaf (type:l )
3
09108-10150
Bolt, Drive Shaft Hsg Stud (type:l )
4
29141-93J20
Nut (type:l <-09140-10031 )
5
09160-10141
Washer (10.5x19x2) (type:l (10.5x19x2) )
6
09202-08006
Pin ( )
7
57130-87D10
Bush, Drive Shaf (type:x )
8
09387-38002
Ring, Drive Shaft Bush Snap (type:x )
9
36895-87D10
Lead Swivel ( )
10
09125-06063
Screw (6x10) ( (6x10) )
11
54151-96J01
Mount, Lower Thr ( )
12
54160-96J01
Mount Comp, Lowe ( )
13-2
54211-96J01
Bracket, Lower M (df150:681545~ Df175:681213~ )
14
54221-96J00-0EP
Cover, Lower Mou ( )
15
09100-14004
Bolt, Upper Moun ( )
16
09116-10131
Bolt (10x35) ( )
17
09116-10136
Bolt, Oil Pan No ( )
18
09160-16050
Washer, Lower Mo ( (16x32x3) )
21
09407-10404
.clamp ( )
22
36894-87D00
Lead, Clamp To S ( )
23
54167-96J00
Mount, Lower Sid ( )
