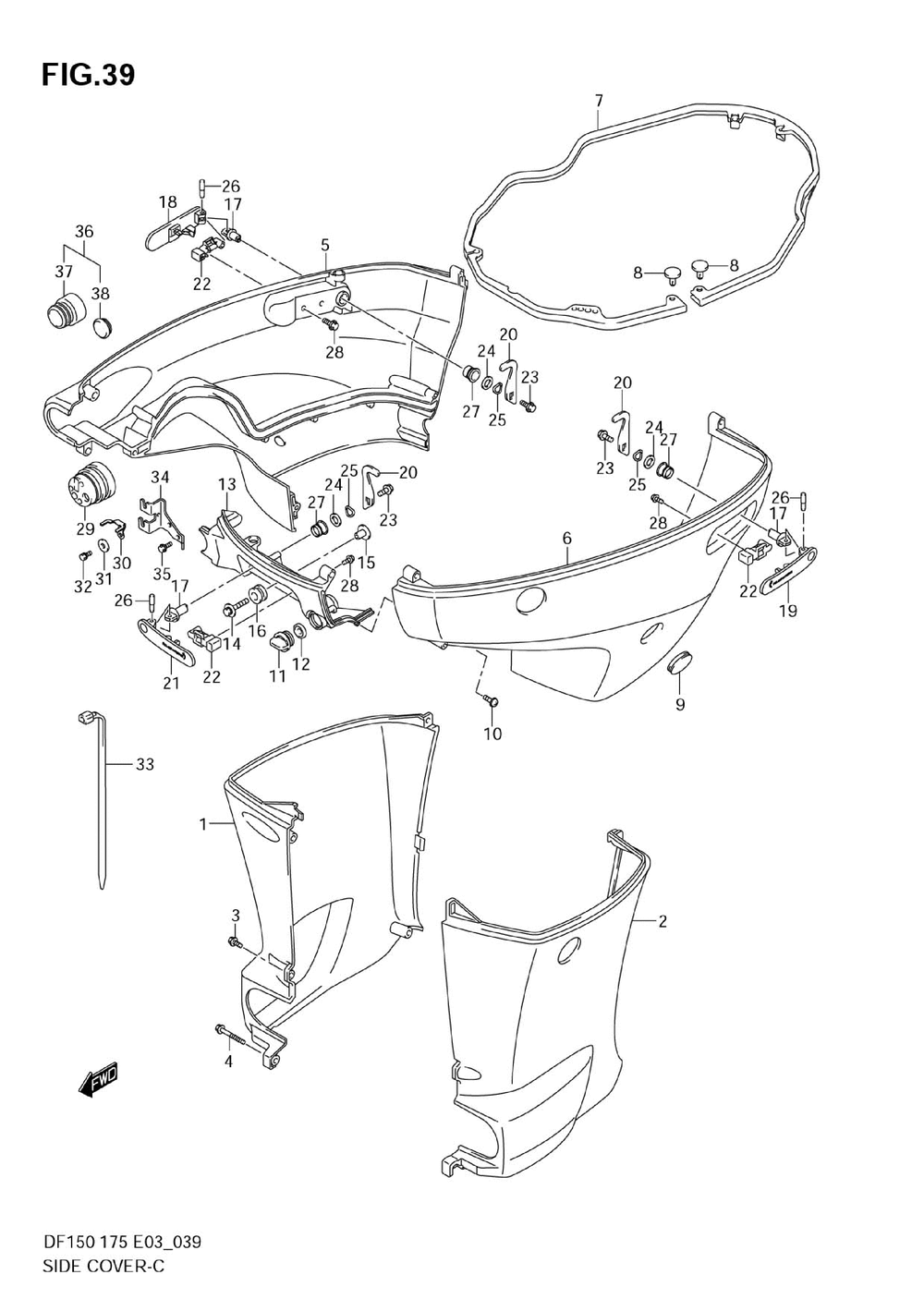

БОКОВАЯ КРЫШКА
БОКОВАЯ КРЫШКА

БОКОВАЯ КРЫШКА

Suzuki Marine DF150 175

oem код

название

цена

1-1

61131-96J01-0EP

Cover, Oil Pan S ( (black) )

1-2

61131-96J11-0EP

Cover, Oil Pan S ( (black) )

2-1

61141-96J01-0EP

Cover, Oil Pan P ( (black) )

2-2

61141-96J11-0EP

Cover, Oil Pan P ( (black) )

3-1

09139-06135

Screw, Oil Pan C (type:l )

09139-06147

Bolt, Oil Pan Cover (type:l )

Cover, Side Stbd ( )

Cover, Side Port ( )

Seal, Side Cover ( )

Pin ( )

Plug, Side Cover ( )

Screw ( )

Plug, Water ( )

Gasket, Water Pl ( )

13-1

61831-96J00-0EP

Panel, Front ( )

13-2

61831-96J01-0EP

Panel, Front (model:08~09 )

Bolt (8x40) ( )

Washer ( )

Cushion ( )

Shaft, Engine Co ( )

18-1

61633-96J00-0EP

Lever, Hook Rear ( )

18-2

61633-96J02

Lever, Hook Rear (df150t:782346~ Df175z:780481~ )

19-1

61634-96J02

Lever, Hook Rear ( )

61641-93J10

Hook, Engine Cov ( )

21-1

Lever, Hook Fron ( )

Latch, Hook Leve ( )

Bolt (6x12) ( )

Washer (13.2x25x1.0) ( (13.2x25x1.0) )

Washer, Wave ( )

Pin,hook Lever, ( )

Bush ( )

Bolt ( )

Grommet, R/con C ( )

Stopper, R/con C ( )

.washer, Throttle Lever ( )

01570-06127

Bolt, Fuse Terminal ( )

09407-25402

.clamp ( )

67341-96J00

Holder, R/con Ca ( )

01550-06167

.bolt, Remocon Cable Holder ( )

67300-93J00

Rigging Kit Ada (opt )

67361-93J00

Adapter, Hose (opt )

09250-21003

Plug (opt )
