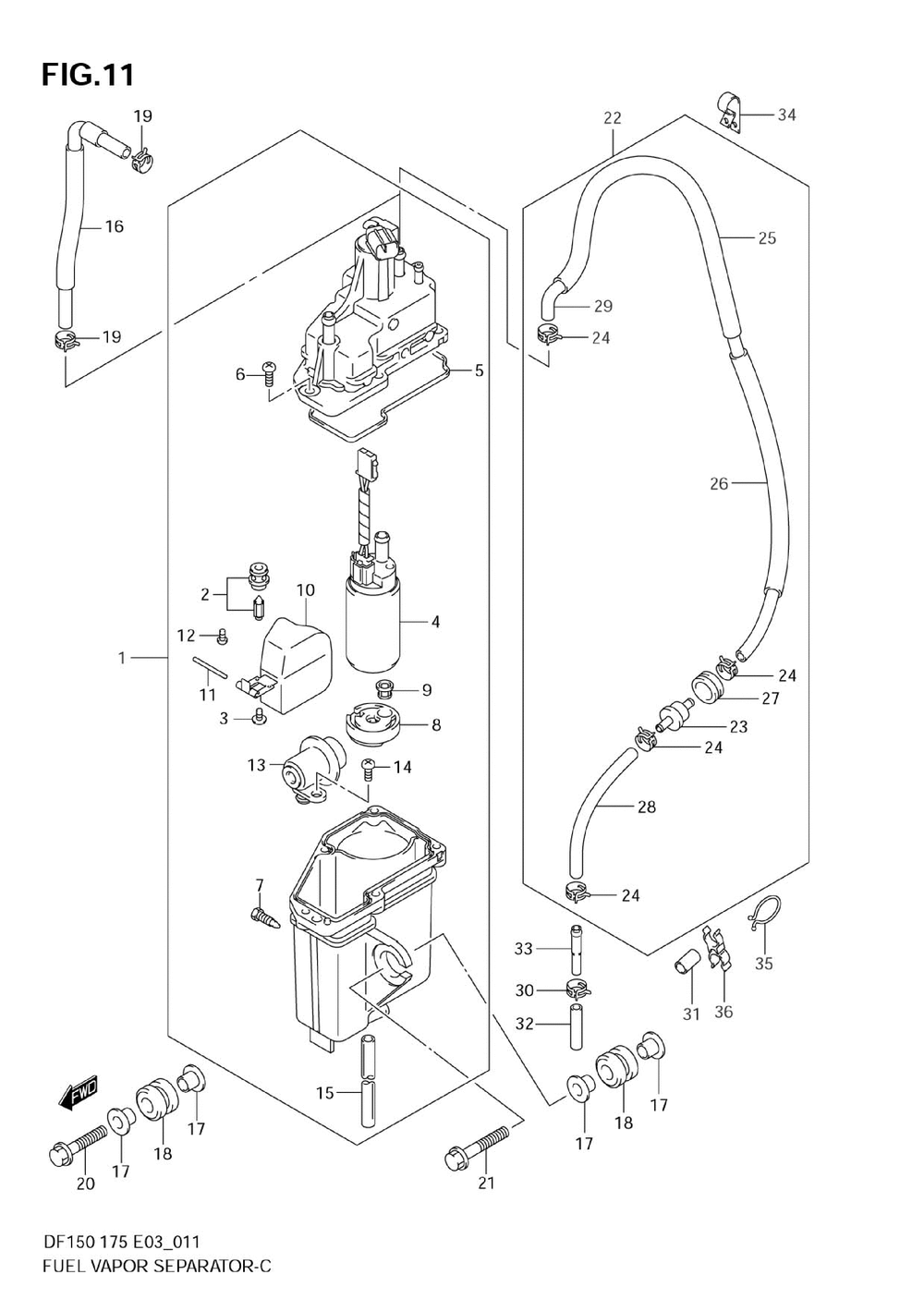

СЕПАРАТОР ТОПЛИВНЫХ ПАРОВ

Suzuki Marine DF150 175
Suzuki Marine
#oem кодцена
1
15600-96J00
Separator Assy, ( )
2
13370-96J00
Valve, Needle ( )
3
02142-0408B
Screw ( )
4
15200-96J00
Pump Assy, Fuel( ( )
5
15626-96J00
Seal ( )
6
15628-99E00
Screw(l:15) ( )
7
15629-99E10
Screw, Drain ( )
8
15641-96J00
Spacer, Fuel Pum ( )
9
15642-90J00
Filter ( )
10
15650-96J00
Float ( )
11
13254-01010
.pin ( )
12
02112-0408A
.screw ( )
13
15760-93J00
Regulator, Fuel ( )
14
02112-05107
.screw, Regulator ( )
15
15683-87J00
Hose ( )
16
15660-96J00
Hose Comp, Evapo (df150t:~780700 Df175z:~780118 )
17
09169-08042
Washer, Fuel Vapor Separator ( )
18
09320-12072
Cushion, Fuel Va ( )
19
09401-08412
Clip (df150t:780701~ Df175z:780119~ )
20
01550-08357
Bolt ( )
21
01550-08407
Bolt ( )
22
15660-96J11
Hose Comp, Evap (df150t:780701~ Df175z:780119~ )
23
15410-98500
Filter, Fuel (df150t:780701~ Df175z:780119~ )
25
18498-87JC0
Protector(l:450 (l:450->300 Df175z:780119~ )
27
09320-20008
Cushion (df150t:780701~ Df175z:780119~ )
28
09352-50823-600
Hose (l:600->45 Df175z:780119~ )
29
09352-50823-00B
Hose (l:2000->860 Df175z:780119~ )
31
18498-96J40
Protector (df150t:780701~ Df175z:780119~ )
33
09364-06010
Union (df150t:780701~ Df175z:780119~ )
34
09403-13408
Clamp, Hose (df150t:780701~ Df175z:780119~ )
35
09408-00008
Clamp (df150t:780701~ Df175z:780119~ )
36
09408-00078
Clamp (df150t:780701~ Df175z:780119~ )
