Редуктор (df150z,df175z)
Редуктор (df150z,df175z)

Редуктор (df150z,df175z)

Suzuki Marine DF150 175

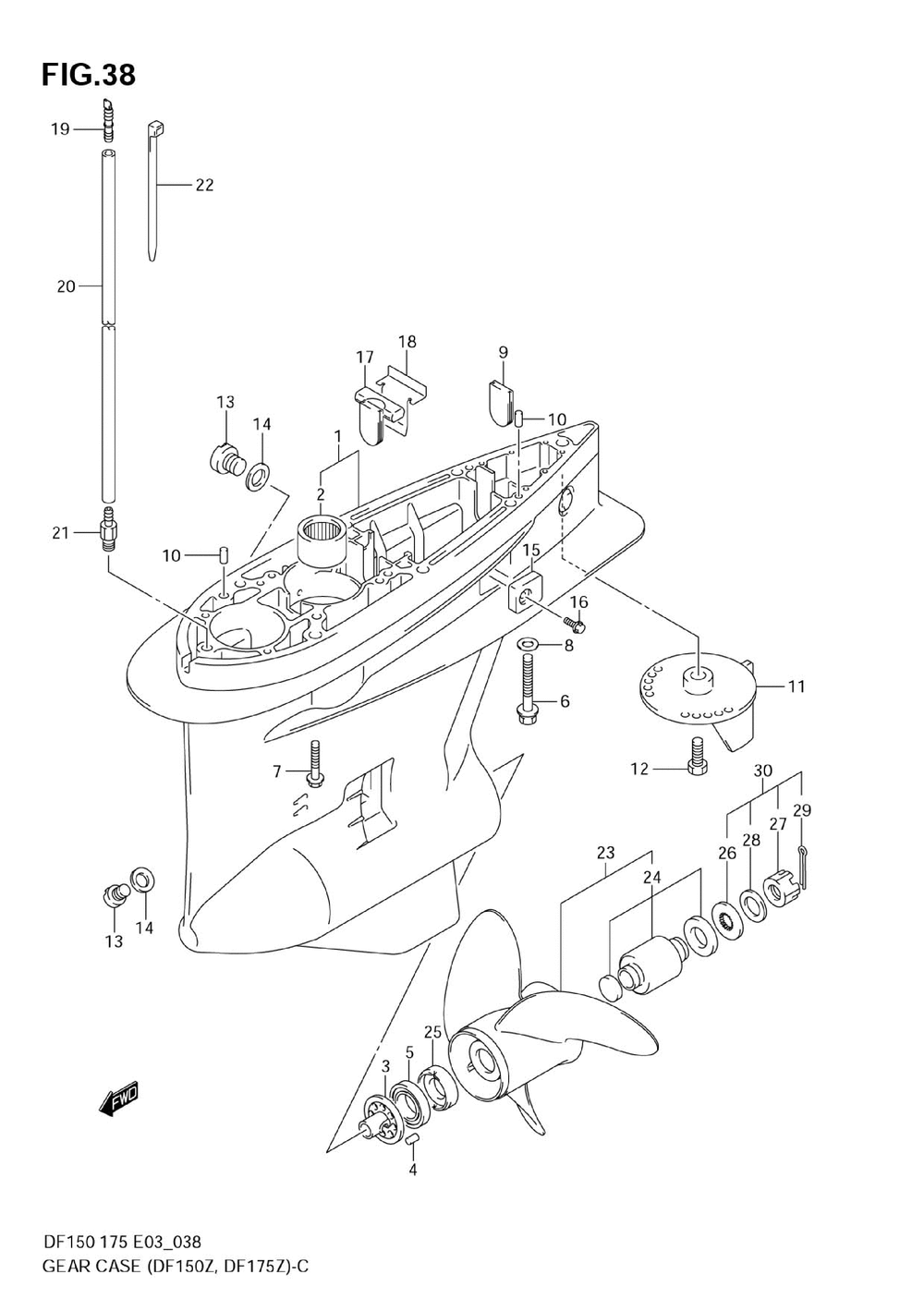

Редуктор (df150z,df175z)

#

oem код

название

цена

1

55110-93J30-0EP

Case Comp, Gear ( )

Case Comp, Gear ( )

2

.bearing, Pinion ( )

.bearing, Pinion ( )

3

Housing, Shift C ( )

Housing, Shift C ( )

4

.pin, Shift Cam Housing ( )

.pin, Shift Cam Housing ( )

5

.bearing, Fwd Thrust ( (50x60x21.75) )

.bearing, Fwd Thrust ( (50x60x21.75) )

6

Bolt L:70(sus) ( )

Bolt L:70(sus) ( )

7

Bolt, 10x55 ( )

Bolt, 10x55 ( )

8

.washer (12.5x22x2.5) ( )

.washer (12.5x22x2.5) ( )

9

Grommet ( )

Grommet ( )

10

Pin ( )

Pin ( )

11

55125-98J00-0EP

Tab, Trim ( )

Tab, Trim ( )

12

Bolt, 8x22 (<-09116-08121 )

Bolt, 8x22 (<-09116-08121 )

13

Plug, Drain ( )

Plug, Drain ( )

14

Gasket, Drain Pl ( (9.5x16.5x2) )

Gasket, Drain Pl ( (9.5x16.5x2) )

15

Zinc Set, Protec ( )

Zinc Set, Protec ( )

16

Bolt, 6x15 ( )

Bolt, 6x15 ( )

17

Rubber, Exhaust ( )

Rubber, Exhaust ( )

18

Plate, Exhaust S ( )

Plate, Exhaust S ( )

19

Union, Speedomet ( )

Union, Speedomet ( )

20

09355-40805-00B

Hose (l:2000->1700 )

Hose (l:2000->1700 )

21

Nipple ( )

Nipple ( )

22

.clamp ( )

.clamp ( )

23-1

99105-0080L-185

Sspropcrv63x16x (not For Us Market Counter Rotation )

Sspropcrv63x16x (not For Us Market Counter Rotation )

23-2

99105-0080L-20P

Sspropcrv63x16x (not For Us Market Counter Rotation )

Sspropcrv63x16x (not For Us Market Counter Rotation )

23-3

99105-0080L-215

Sspropcrv63x16x (not For Us Market Counter Rotation )

Sspropcrv63x16x (not For Us Market Counter Rotation )

23-4

99105-0080L-23P

Sspropcrv63x16x (not For Us Market Counter Rotation )

Sspropcrv63x16x (not For Us Market Counter Rotation )

23-5

99105-0080L-17P

Sspropcrdfv63x1 (not For Us Market Counter Rotation )

Sspropcrdfv63x1 (not For Us Market Counter Rotation )

23-6

99105-0080L-245

Sspropcrv63x16x (not For Us Market Counter Rotation )

Sspropcrv63x16x (not For Us Market Counter Rotation )

24

Bush Set, Propel ( )

Bush Set, Propel ( )

25

Stopper, Propell ( )

Stopper, Propell ( )

26

Spacer, Nut(t:6. ( )

Spacer, Nut(t:6. ( )

27

Nut ( )

Nut ( )

28

Washer (18.5x31x1.0) ( )

Washer (18.5x31x1.0) ( )

29

Cotter Pin (l:25) ( )

Cotter Pin (l:25) ( )

30

Prop Hdwr V-6 M (opt )

Prop Hdwr V-6 M (opt )

31

Lu Sealkit Df V (opt Not Shown )

Lu Sealkit Df V (opt Not Shown )
