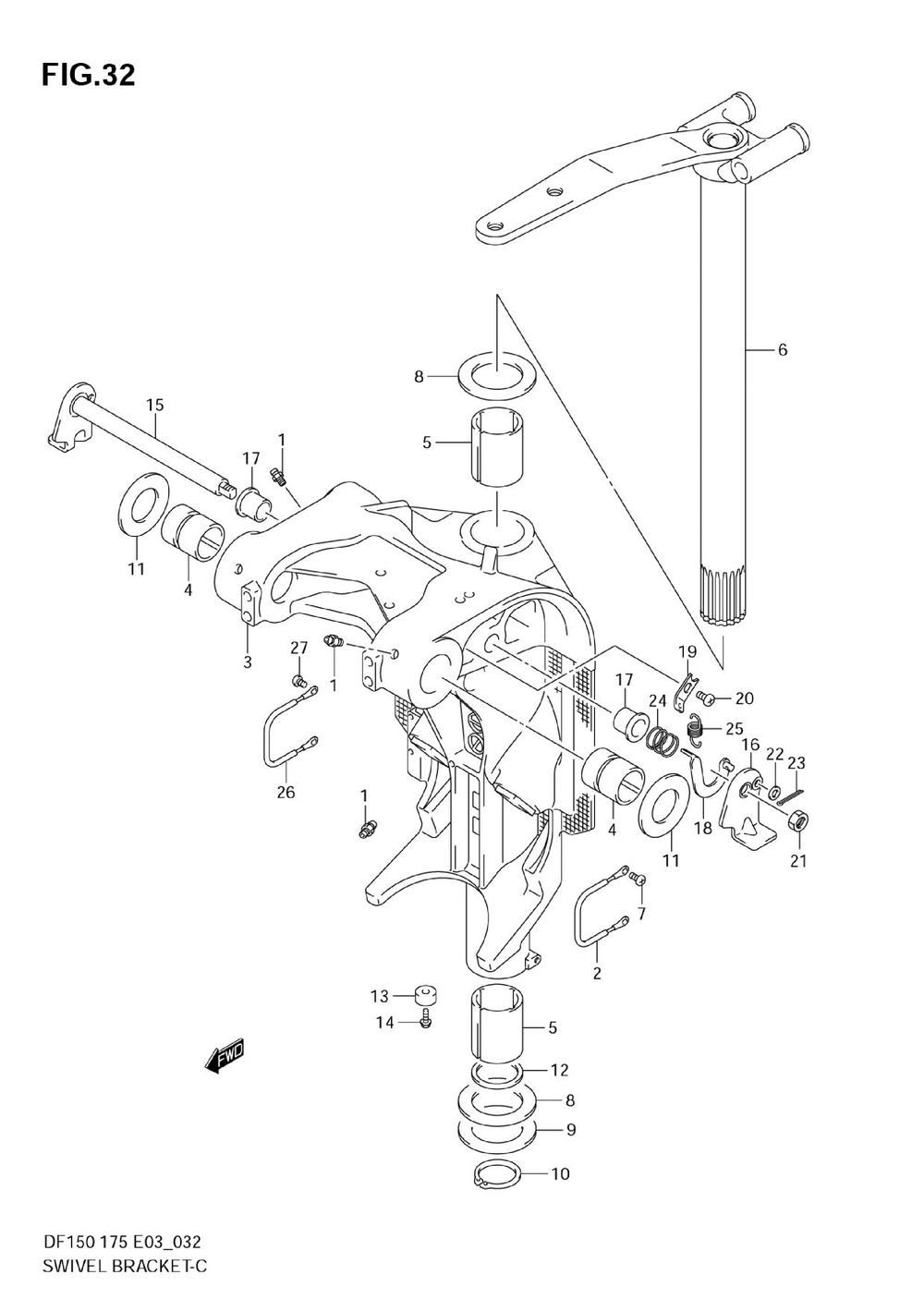

ПОВОРОТНЫЙ КРОНШТЕЙН

Suzuki Marine DF150 175
Suzuki Marine
#oem кодцена
1
22511-99011
Nipple, Grease ( )
2
36894-87D00
Lead, Clamp To S ( )
3-1
43111-96J00-0EP
Bracket, Swivel( ( )
3-2
43111-96J10-0EP
Bracket, Swivel( ( )
4
43211-93J00
Bushing, Swivel ( )
5
43711-97E00
Bush, Steering ( )
6-1
43750-96J00-0EP
Bracket, Steerin ( )
6-2
43750-96J10-0EP
Bracket, Steerin ( )
7
09125-06063
Screw (6x10) ( (6x10) )
8
09160-39001
Washer (39.5x64x1.0) ( (39.5x64x1.0) )
9
09181-39001
Shim ( (39.5x64x0.3) )
10
09380-38003
Circlip ( )
11
09169-28003
Washer ( (26.2x52x1) )
12
09282-39001
Oil Seal 39x51x ( (26.2x52x1) )
13-1
55321-87J00
Anode, Protectio ( )
13-2
55321-87J10
Magnesium Anode (opt )
14
09103-06281
Bolt (6x14) ( )
15
41200-96810
Lever & Link Se (<-41220-93j01 )
17
41224-95E01
Bush, Tilt Stop ( )
18
41230-95E00
Link, Tilt Lock ( )
19
41233-95E10
Bracket, Tilt Lo ( )
21
09140-10032
Nut ( )
22
09160-06082
.washer, Clutch Lever ( (6.5x13x1) )
23
09204-01006
Pin ( )
24
09440-19028
Spring ( )
25
09443-10043
Spring, Tilt Loc ( )
