ЦЕПЬ ГРМ Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF150 175 (2009)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

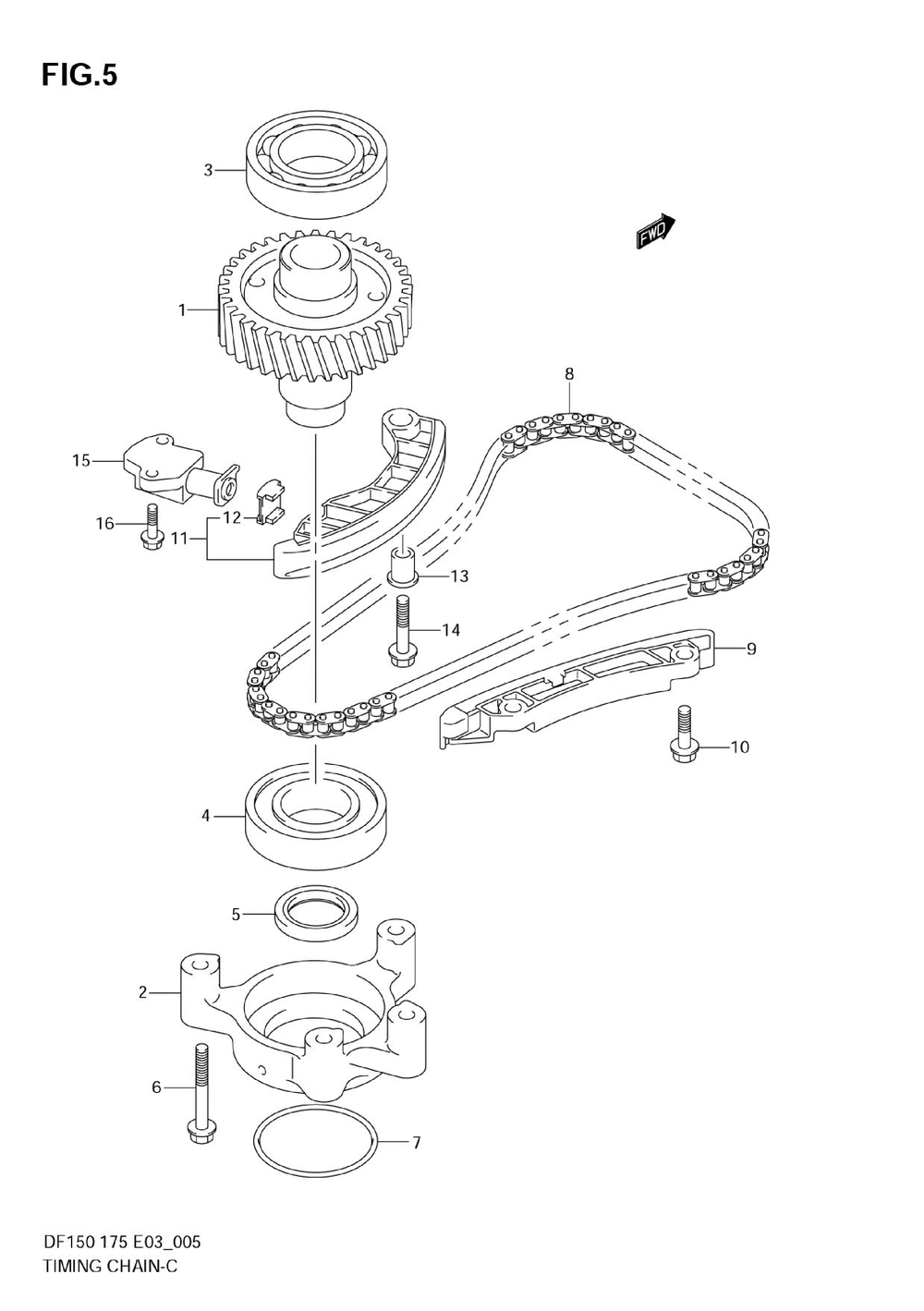

ЦЕПЬ ГРМ

Suzuki Marine DF150 175

ЦЕПЬ ГРМ

#

oem код

название

цена

1

Gear Comp, Drive ( )

Gear Comp, Drive ( )

2

Holder, Driven G ( )

Holder, Driven G ( )

3

Bearing, Upper ( )

Bearing, Upper ( )

4-1

Bearing, Lower ( )

Bearing, Lower ( )

5

Seal, Oil ( (32x47x6) )

Seal, Oil ( (32x47x6) )

6

Bolt, Holder ( )

Bolt, Holder ( )

7

O-ring, Holder(i ( (id:69.6, Dd:5.7) )

O-ring, Holder(i ( (id:69.6, Dd:5.7) )

8

Chain Comp, Timi ( )

Chain Comp, Timi ( )

9

Guide, Timing Ch ( )

Guide, Timing Ch ( )

10

Bolt ( )

Bolt ( )

11

Tensioner Assy, ( )

Tensioner Assy, ( )

12

Rod, Timing Chai ( )

Rod, Timing Chai ( )

13

Spacer, Timing C ( )

Spacer, Timing C ( )

14

Bolt ( )

Bolt ( )

15

Adjuster Assy, T ( )

Adjuster Assy, T ( )

16

Bolt ( )

Bolt ( )
