ВОДЯНОЙ НАСОС Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF150 175 (2009)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2009
DF150 175

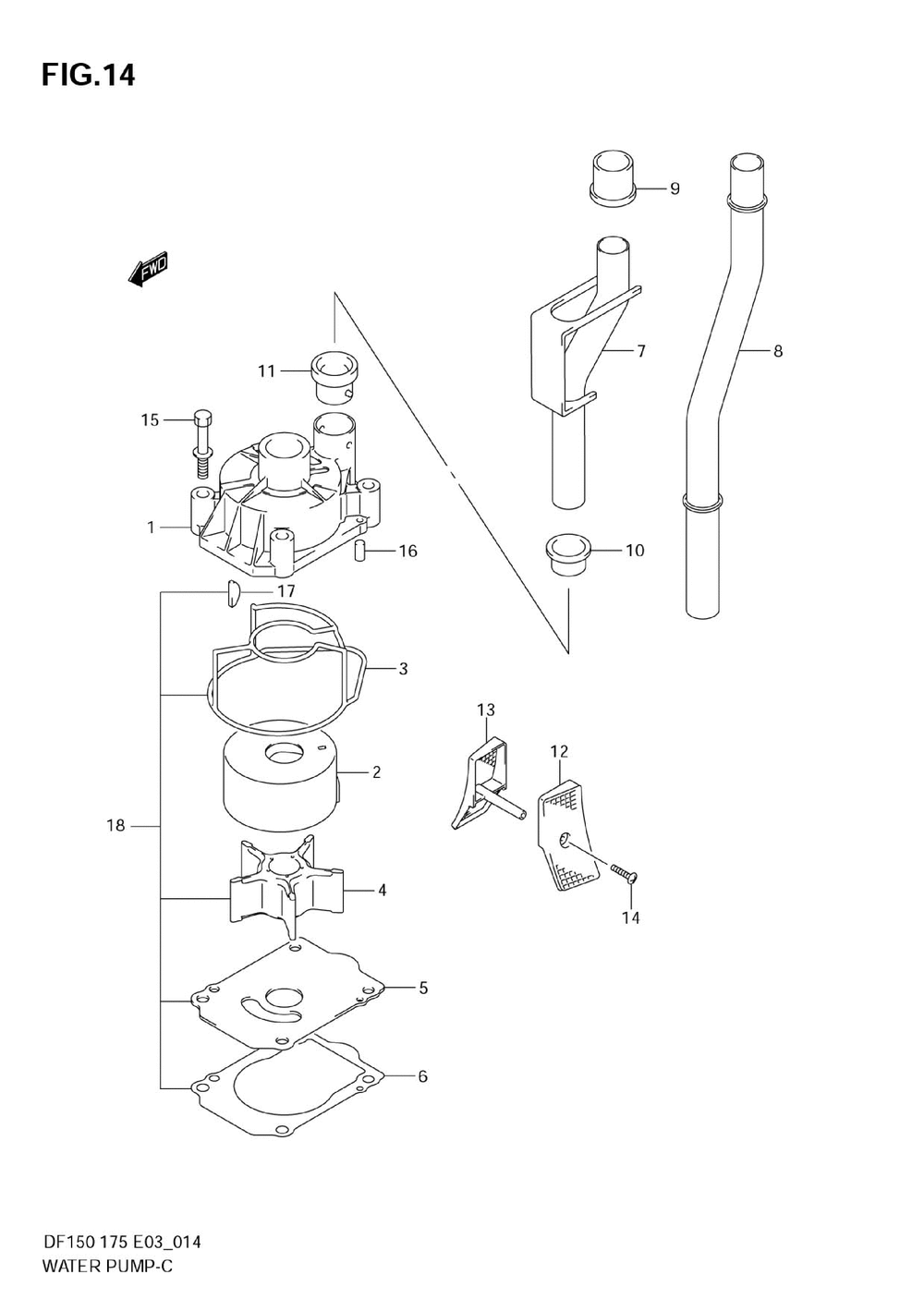

ВОДЯНОЙ НАСОС
ВОДЯНОЙ НАСОС

ВОДЯНОЙ НАСОС

Suzuki Marine DF150 175

ВОДЯНОЙ НАСОС

#

oem код

название

цена

1

Case, Water Pump ( )

Case, Water Pump ( )

2

Sleeve, Water Pu ( )

Sleeve, Water Pu ( )

3

Seal, Pump Case ( )

Seal, Pump Case ( )

4

Impeller, Water ( )

Impeller, Water ( )

5

Panel, Pump Case ( )

Panel, Pump Case ( )

6

Gasket, Pump Cas ( )

Gasket, Pump Cas ( )

7

Tube, Water(l) ( )

Tube, Water(l) ( )

8

Tube, Water (x) ( )

Tube, Water (x) ( )

9

Bush, Water Tube ( )

Bush, Water Tube ( )

10

Bush, Water Tube ( )

Bush, Water Tube ( )

11

Bush, Water Pump ( )

Bush, Water Pump ( )

12-1

Filter, Water Po ( )

Filter, Water Po ( )

12-2

Filter, Water Po (opt )

Filter, Water Po (opt )

13-1

Filter, Water St ( )

Filter, Water St ( )

13-2

Filter, Water St (opt )

Filter, Water St (opt )

14

Screw (4x18) ( )

Screw (4x18) ( )

15

Bolt, Gearcase ( )

Bolt, Gearcase ( )

16

Pin ( )

Pin ( )

17

Key, Water Pump ( )

Key, Water Pump ( )

18

Kit, Wtr Pump Re (opt )

Kit, Wtr Pump Re (opt )
