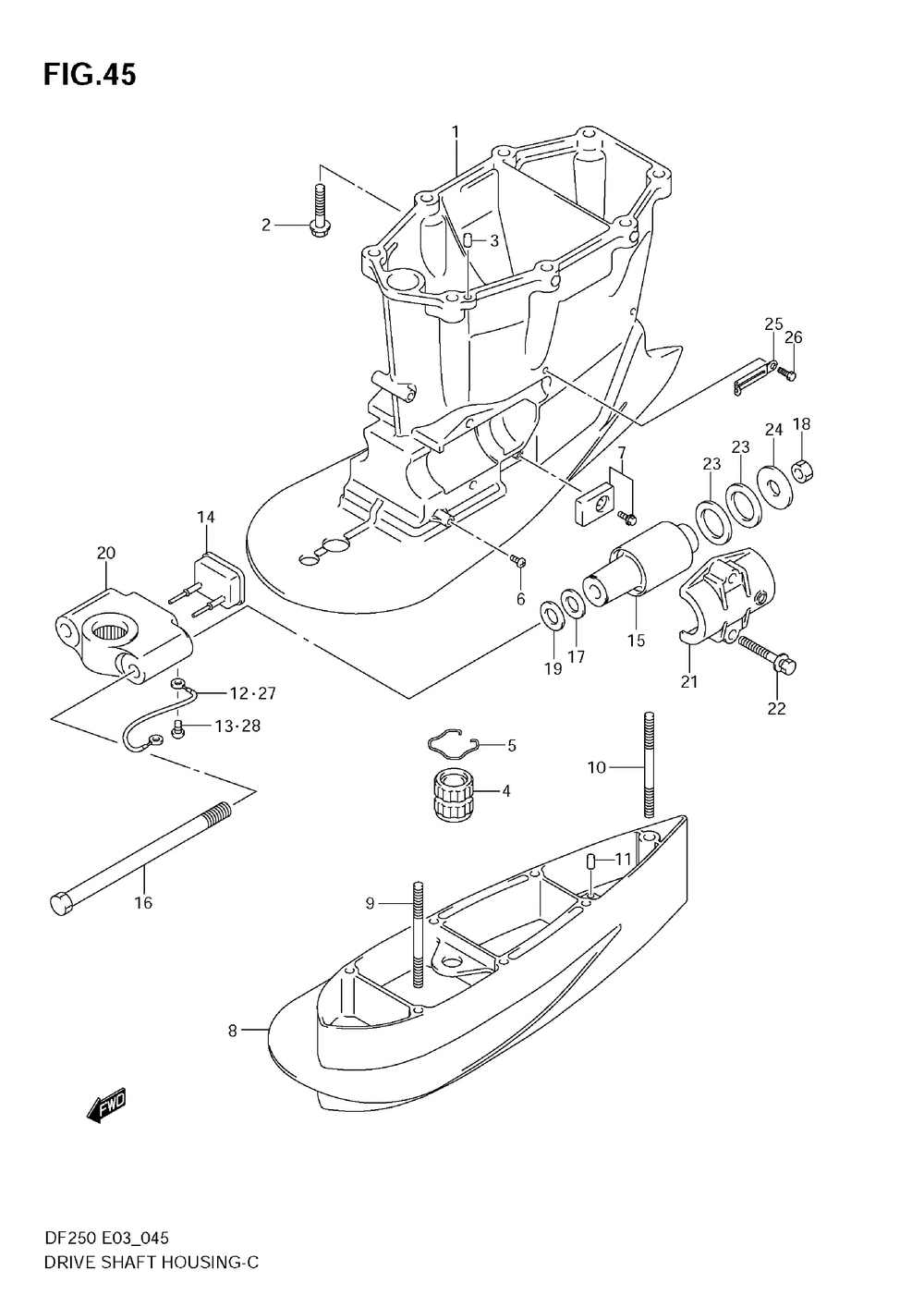

КОРПУС ПРИВОДНОГО ВАЛА
КОРПУС ПРИВОДНОГО ВАЛА

КОРПУС ПРИВОДНОГО ВАЛА

Suzuki Marine DF200 225 250

oem код

название

цена

1-1

52111-93J03-0EP

Housing, Drive S

1-3

52111-93J11-0EP

Housing, Drive S (df200t:680188~ Df250z:680144~ )

Bolt, Drive Shaf

Штифт

Bush, Drive Shaf

Ring, Drive Shaft Bush Snap

09125-06063

Screw (6x10) (df200t:680188~ Df250z:680144~ )

55320-95311

Zinc Set, Protec

52131-93J00-0EP

Case, Extension( (type:xx)

09108-10115

Bolt, Stud (type:xx)

09108-12013

Bolt, Extension (type:xx)

36894-87D00

Lead, Clamp To S (df200t:680188~ Df250z:680144~ )

54151-93J00

Mount, Lower Thr ( Refer To Fig.46(h- 6) For Df250s, Df200tl )

Mount Comp, L0we

Bolt, Upper Moun

Washer, Lower Mo

Nut, Upper Mount

Bracket, Lower M

Cover, Lower Mou

Bolt, Oil Pan No

Stopper, Lower T (<-54165-87d00)

09160-14066

Washer, Rev Stop

29404-93J10

Clamp (df200t:510092~ Df250z:510048~ )

26-1

09100-06131

.bolt (6x12) (df200t:510092~ Df250z:510048~ )

26-2

29103-93J00

Bolt (model:06~09)
