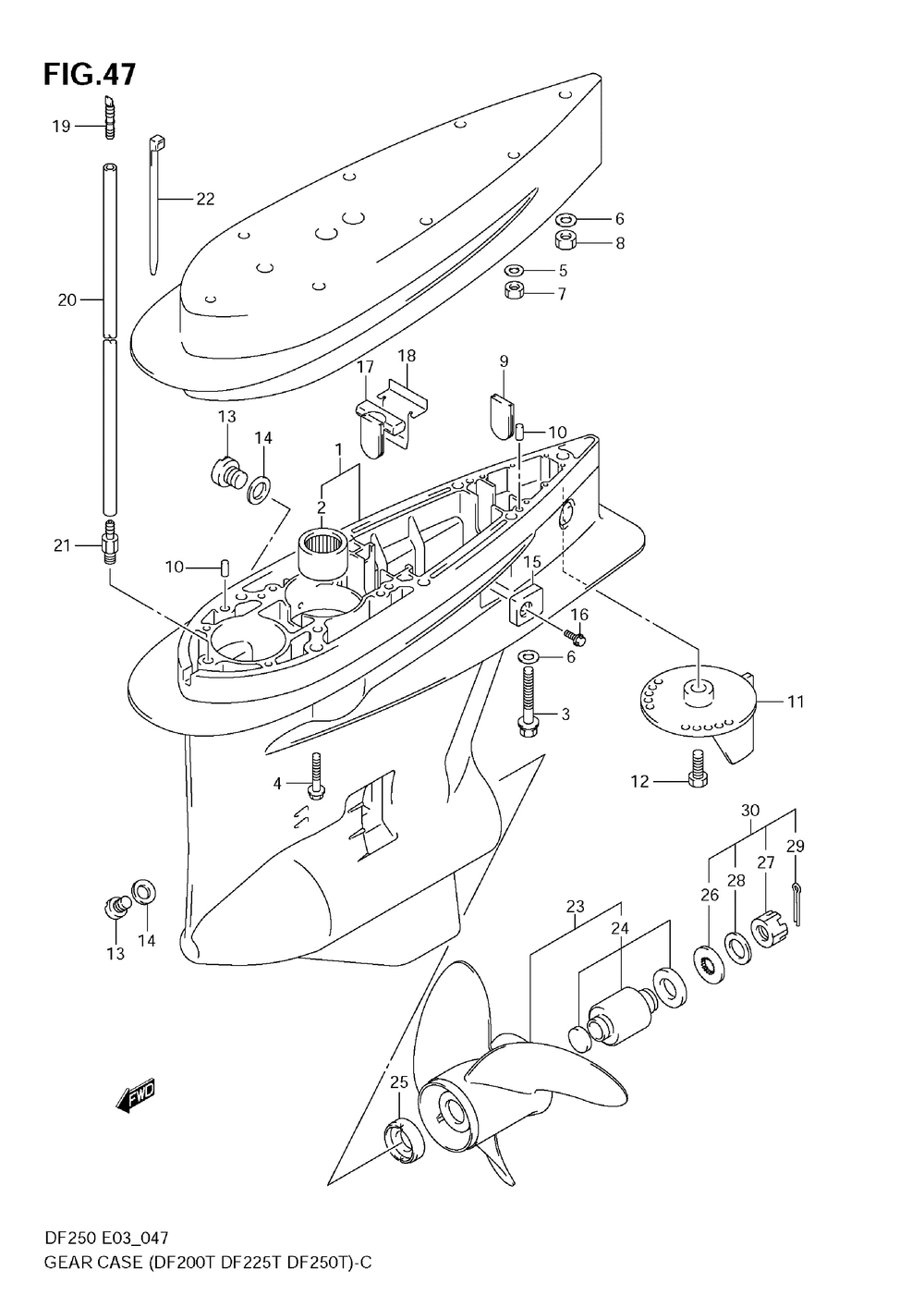

Картер (Gear Case) (DF200T, DF225T, 250T)
Картер (Gear Case) (DF200T, DF225T, 250T)

Картер (Gear Case) (DF200T, DF225T, 250T)

Suzuki Marine DF200 225 250

Картер (Gear Case) (DF200T, DF225T, 250T)

#

oem код

название

цена

1-1

55110-93J20-0EP

Case Comp, Gear

Case Comp, Gear

2-1

Brg, Pinion, 32x4

Brg, Pinion, 32x4

2-2

.bearing, Pinion (df200t:510124~ Df250t:510308~ )

.bearing, Pinion (df200t:510124~ Df250t:510308~ )

3

Bolt L:70(sus) (type:l, X)

Bolt L:70(sus) (type:l, X)

4

Bolt, 10x55 (type:l, X)

Bolt, 10x55 (type:l, X)

5

Washer (10.5x19x2) (type:xx <-09160-10082 )

Washer (10.5x19x2) (type:xx <-09160-10082 )

6

.washer (12.5x22x2.5)

.washer (12.5x22x2.5)

7

Nut (type:xx (10x14) <-09140-10031 )

Nut (type:xx (10x14) <-09140-10031 )

8

Nut (type:xx (12x17) )

Nut (type:xx (12x17) )

9

Уплотнитель

Уплотнитель

10

Штифт

Штифт

11

55125-98J00-0EP

Tab, Trim

Tab, Trim

12

Bolt, 8x22 (<-09116-08121)

Bolt, 8x22 (<-09116-08121)

13-1

Plug, Drain (df200t:510124~ Df250t:510308~ )

Plug, Drain (df200t:510124~ Df250t:510308~ )

14-1

Gasket, Drain Pl (df200t:510124~ Df250t:510308~ )

Gasket, Drain Pl (df200t:510124~ Df250t:510308~ )

15

Zinc Set, Protec

Zinc Set, Protec

16

Болт 6x15

Болт 6x15

17

Rubber, Exhaust

Rubber, Exhaust

18

Plate, Exhaust S ( Refer To Fig.49(h-11) For Df250s )

Plate, Exhaust S ( Refer To Fig.49(h-11) For Df250s )

19

Union, Speedomet

Union, Speedomet

20-1

09355-40805-00B

Hose (type:xx L:2000->1700 )

Hose (type:xx L:2000->1700 )

21

Ниппель

Ниппель

22

Стяжка L-140

Стяжка L-140

23-1

99105-00800-17P

Ssprop Dfv63x16 (not For Us Market)

Ssprop Dfv63x16 (not For Us Market)

23-2

99105-00800-185

Ssprop Dfv63x16 (not For Us Market)

Ssprop Dfv63x16 (not For Us Market)

23-3

99105-00800-20P

Ssprop Dfv63x16 (not For Us Market)

Ssprop Dfv63x16 (not For Us Market)

23-4

99105-00800-215

Ssprop Dfv63x16 (not For Us Market)

Ssprop Dfv63x16 (not For Us Market)

23-5

99105-00800-23P

Ssprop Dfv63x16 (not For Us Market)

Ssprop Dfv63x16 (not For Us Market)

23-6

99105-00800-245

Ssprop Dfv63x16 (not For Us Market)

Ssprop Dfv63x16 (not For Us Market)

24

Bush Set, Propel (opt)

Bush Set, Propel (opt)

25-1

Stopper, Propell

Stopper, Propell

26

Spacer, Nut(t:6.

Spacer, Nut(t:6.

27

Гайка

Гайка

28

Washer (18.5x31x1.0)

Washer (18.5x31x1.0)

29

Cotter Pin (l:25)

Cotter Pin (l:25)

30

Prop Hdwr V-6 M (opt)

Prop Hdwr V-6 M (opt)

31

Lu Sealkit Df V (opt Not Shown)

Lu Sealkit Df V (opt Not Shown)
