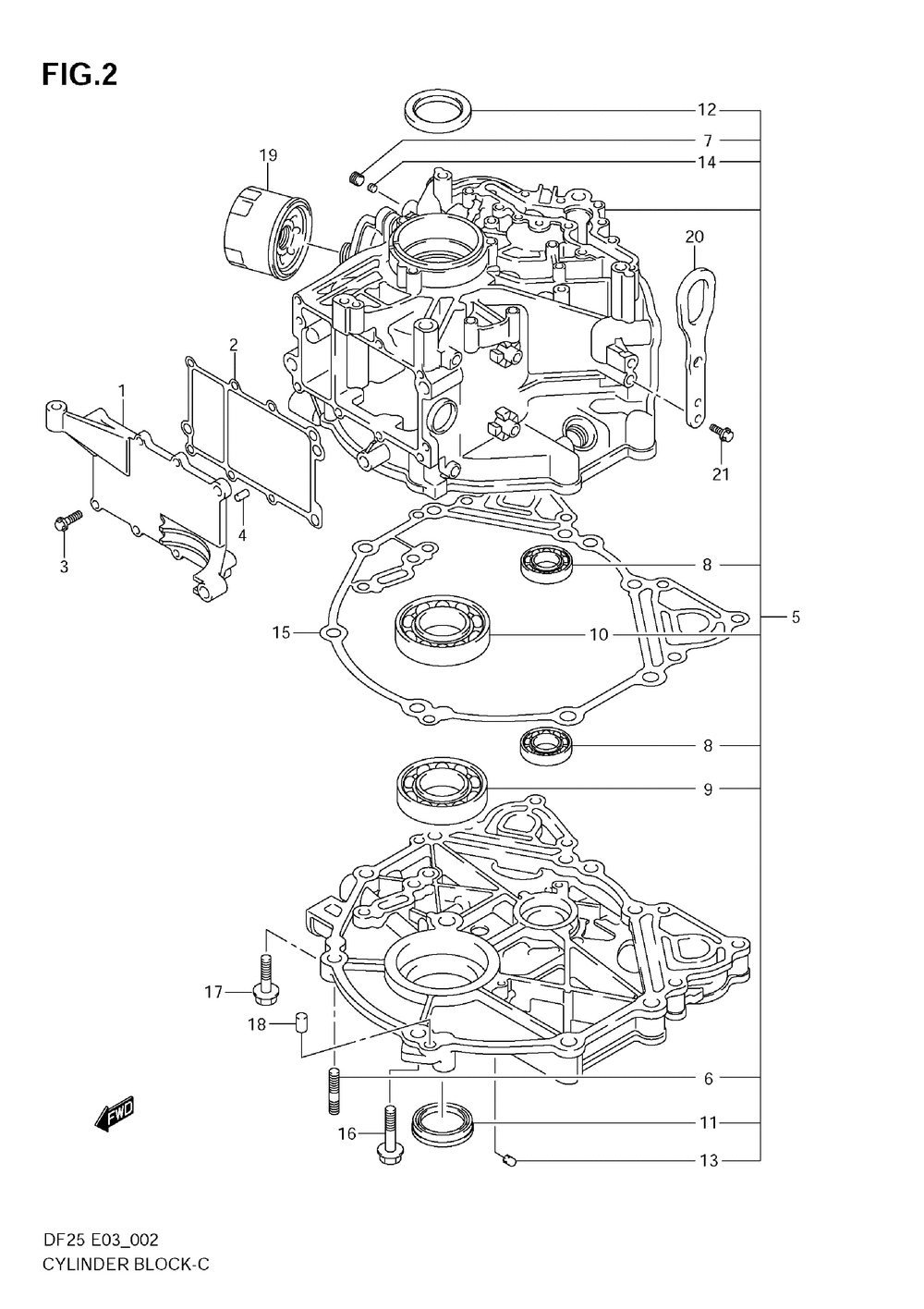

БЛОК ЦИЛИНДРОВ

Suzuki Marine DF25
Suzuki Marine
#oem кодцена
1
11218-95J00
Cover, Cyl Block
2
11219-95J01
Gasket, Cyl Bloc
3
01547-06207
Bolt, Lower
4
04221-06129
Pin, Knock
5
11300-95850
Block Set, Cylin
7
09246-05006
.plug
8
09262-25145
.bearing, Camshaft (25x42x9)
9
09262-35067
.bearing, Crankshaft Lower ( (35x72x17) )
10
08110-62080
Bearing, Upper
11
09283-34014
.seal, Crankshaft Oil Lower
12
09283-38025
.seal, Crankshaft Oil Upper ( (38x56x7) )
14
09493-20012
Jet Oil Gallery (for Cylinder Block)
15
11351-95J01
Прокладка
16
09116-10143
Bolt, Drive Shaft Hsg (10x40)
17
09116-08128
Bolt, 8x40
18
04221-08149
Штифт
19
16510-87J00
Filter, Oil Df25
20
11291-95J00
Крюк
21
01550-06167
.bolt, Remocon Cable Holder
1
11200-97J00
BLOCK ASSY, CYLINDER
4
11300-97J00
CASE ASSY, CRANKSHAFT
6
11351-97J01
Прокладка картера
7
04221-05109
Штифт
8
01550-06257
Болт
9
59295-97J10
SEAL, DRIVE SHAFT OIL
10
59295-97J20
SEAL, CRANKSHAFT OIL LOWER
11
11382-97J00
Крышка заливная
12
09280-15007
O RING, CAP (D:2.4 ID:15.8)
13
09168-10022
GASKET, DRAIN PLUG
14
09248-10008
PLUG, DRAIN (10X7.5)
15
55321-95J00
ANODE, PROTECTION
16
09126-05011
SCREW, PROTECTION ANODE
17
17670-91J00
Термостат
18
17681-97J00
Крышка термостата
19
17685-97J00
GASKET, THERMOSTAT COVER
20
01550-06207
BOLT, THERMOSTAT COVER
21
11173-97J00
Пластина сапуна
22
02142-06127
BOLT, BREATHER PLATE
23
11179-97J00
GASKET, BREATHER PLATE
24
11174-97J00
Трубка,резина
25
11452-91J00
Клапан
26
02112-0612A
SCREW, REED VALVE
27
11431-97J11
PLATE, UNDER OIL SEAL
28
11432-97J00
BOLT, UNDER OIL SEAL PLATE
