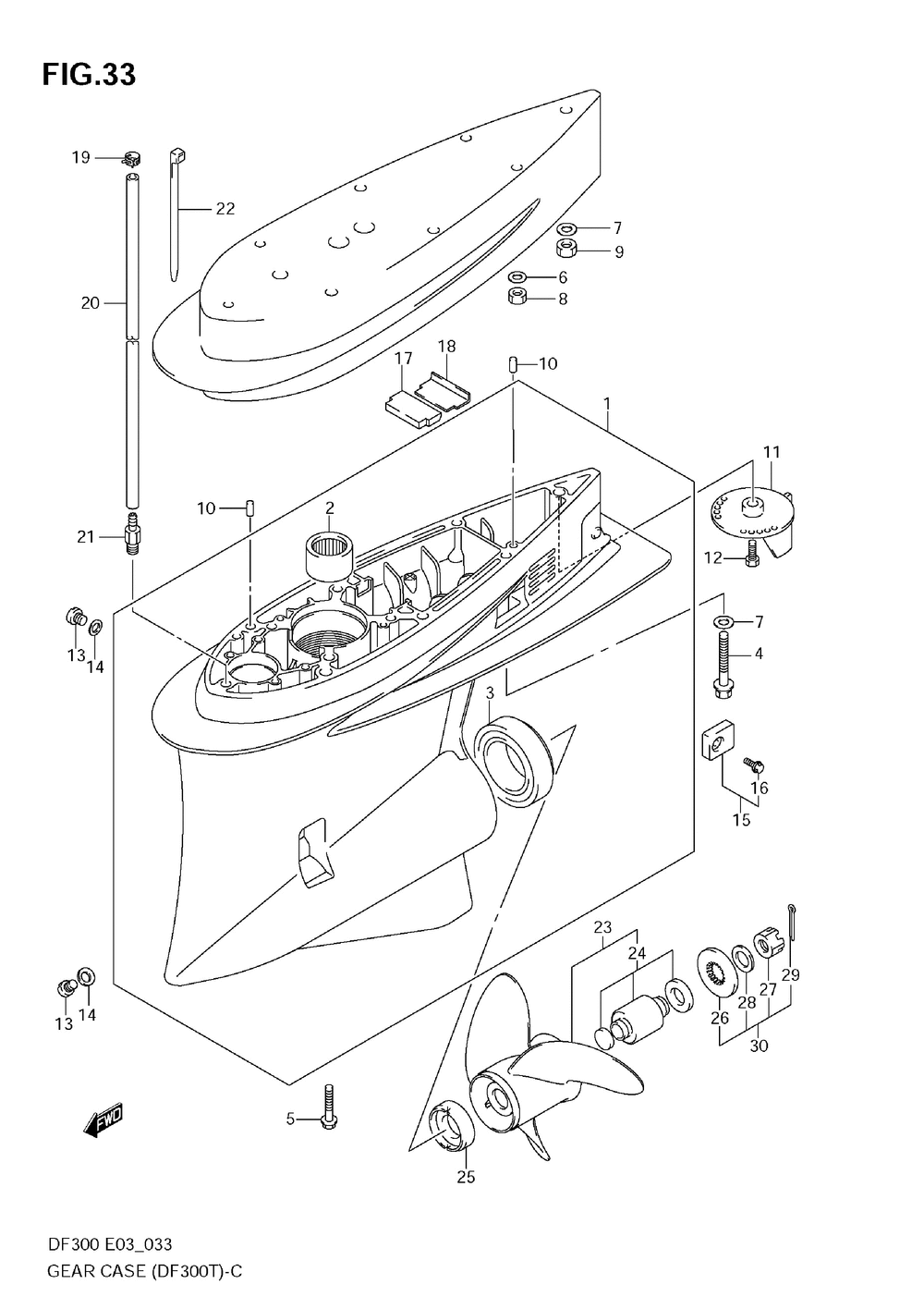

Картер (DF300T)

Suzuki Marine DF300
Suzuki Marine
#oem кодцена
1
55110-98J01-0EP
Case Comp, Gear(
2
09263-36004
.bearing, Pinion (36x51x32)
3
09265-50001
.bearing, Fwd Gear (50x90x32)
4
09100-12052
Bolt L:70(sus) (type:x)
5
09116-10150
Bolt, 10x55 (type:x)
6
09160-10141
Washer (10.5x19x2) (type:xx)
7
09160-12066
.washer (12.5x22x2.5)
8
29141-93J20
Nut (type:xx (10x14) )
9
09159-12014
Nut (type:xx (12x17) )
10
09202-08006
Штифт
11
55125-98J00-0EP
Tab, Trim
12
09116-08137
Bolt, 8x22
13
55128-93J00
Пробка, Дренажный
14
09168-10034
Gasket, Drain Pl
15
55320-95311
Zinc Set, Protec
16
09116-06094
Болт 6x15
17
55332-98J00
Rubber, Exhaust
18
55333-98J00
Plate, Exhaust S
19
09401-08412
Зажим
20
09355-40805-00B
Hose (l:2000->1300)
21
09362-09008
Ниппель
22
09407-10404
.clamp ( Refer To Fig.34(f-11) For Df300z )
23-1
99105-00800-17P
Ssprop Dfv63x16 (opt)
23-2
99105-00800-185
Ssprop Dfv63x16 (opt)
23-3
99105-00800-20P
Ssprop Dfv63x16 (opt)
23-4
99105-00800-215
Ssprop Dfv63x16 (opt)
23-5
99105-00800-23P
Ssprop Dfv63x16 (opt)
23-6
99105-00800-245
Ssprop Dfv63x16 (opt)
24
58105-93J00
Bush Set, Propel (opt)
25
57632-93J10
Stopper, Propell
26
57633-87D30
Spacer, Nut(t:6.
27
09141-18005
Гайка
28
09160-18028
Washer (18.5x31x1.0)
29
09204-03003
Cotter Pin (l:25)
30
57630-92E00
Prop Hdwr V-6 M (opt)
31
25700-98J00
L.u.seal Kit 30 (opt Not Shown)
1
55110-98J00-0EP
CASE, GEAR (BLACK)
19
17813-90J00
CLIP, SPEEDOMETER HOSE
23
58200-93J30
PROPELLER (3X16X21.5)
23
58200-93J20
PROPELLER (3X16X20)
23
58200-93J50
PROPELLER (3X16X24.5)
23
58200-93J40
PROPELLER (3X16X23)
23
58200-93J10
PROPELLER (3X16X18.5)
23
58200-93J00
PROPELLER (3X16X17)
25
57632-93J11
STOPPER, PROPELLER BUSH
