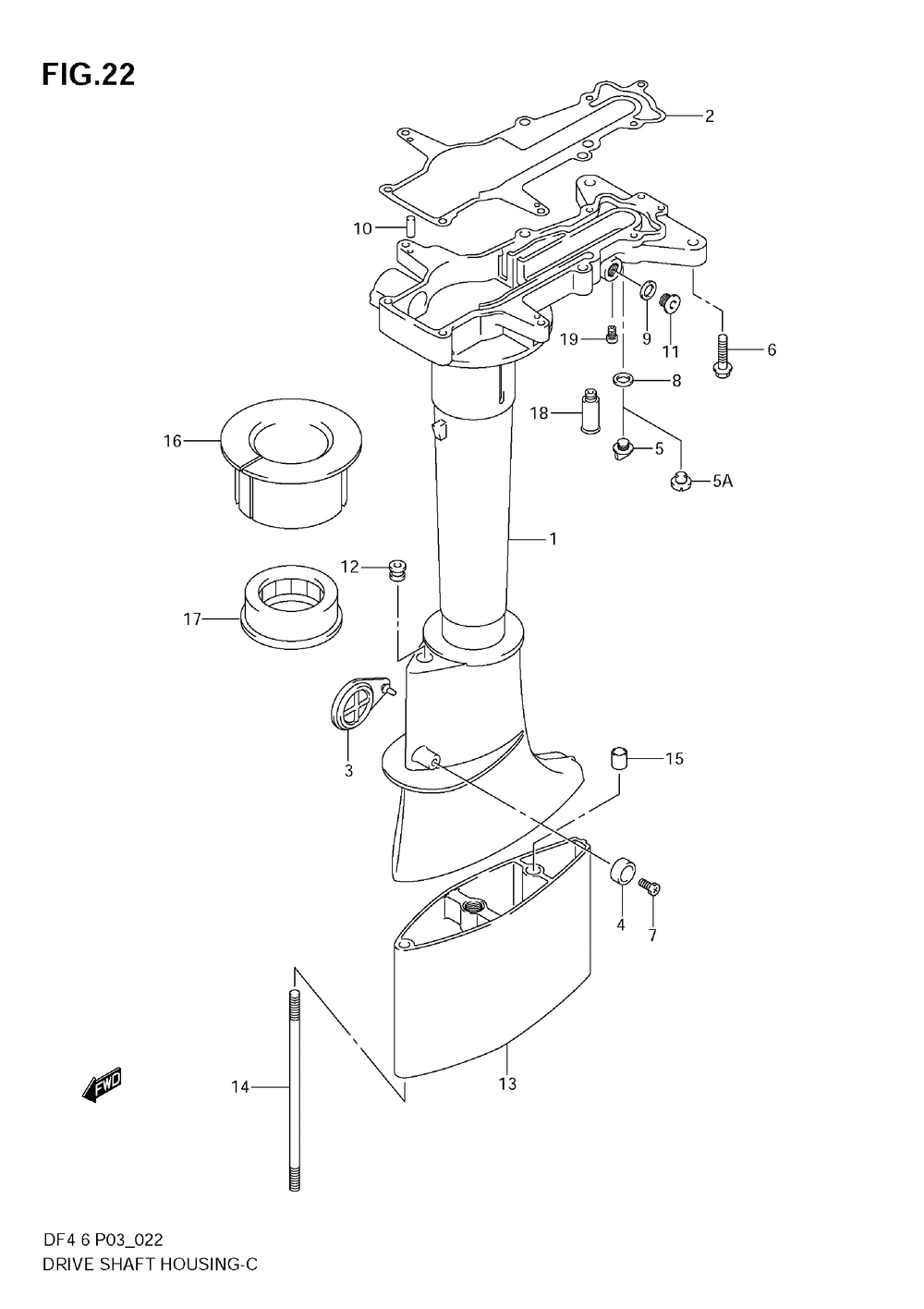

КОРПУС ПРИВОДНОГО ВАЛА

Suzuki Marine DF4/DF6
Suzuki Marine
#oem кодцена
1-1
52111-91J00-0EP
Housing, Drive S (->52111-91j20-0ep 09248-10008 )
1-2
52111-91J20-0EP
Housing, Drive S (df4 Model:05 Df6:511204~ )
2
52113-91J01
Gasket, Drive Sh
3
52115-98600
Cover Cl Adjust
4
55321-87J00
Anode, Protectio
5
61155-91J00
Tube, Water Insp (df4 Model:03, 04 Df6:~511203 )
5A
09248-10008
Plug (10x7.5) (df4 Model:05~09 Df6:511204~ )
6
09116-06189
Bolt, 6x38
7-1
09128-06021
Болт (6х14)
7-2
09103-06281
Bolt (6x14) (model:06~09)
8
09168-10022
Gasket (10x17x1.5)
9
09168-12017
Прокладка
10
09202-06015
11
29248-93J00
Plug (<-09248-12007)
12
09320-04010
Bush (<-25214-91j00)
13
52131-91J00-0EP
Case, Extension( (type:l)
14
09108-08092
Stud Bolt (type:l)
15
09206-11006
(type:l)
16-1
54132-91J00
Rubber, Mount Up (df4 Model:03)
16-2
54132-91J10
Rubber, Mount Up (df4 Model:04~09)
17
54162-91J00
Rubber, Mount Lo
18
55181-95200
Flush Attachmen (opt)
19
52117-92D00
Tube, Water Insp (df4 Model:05~09 Df6:511204~ )
