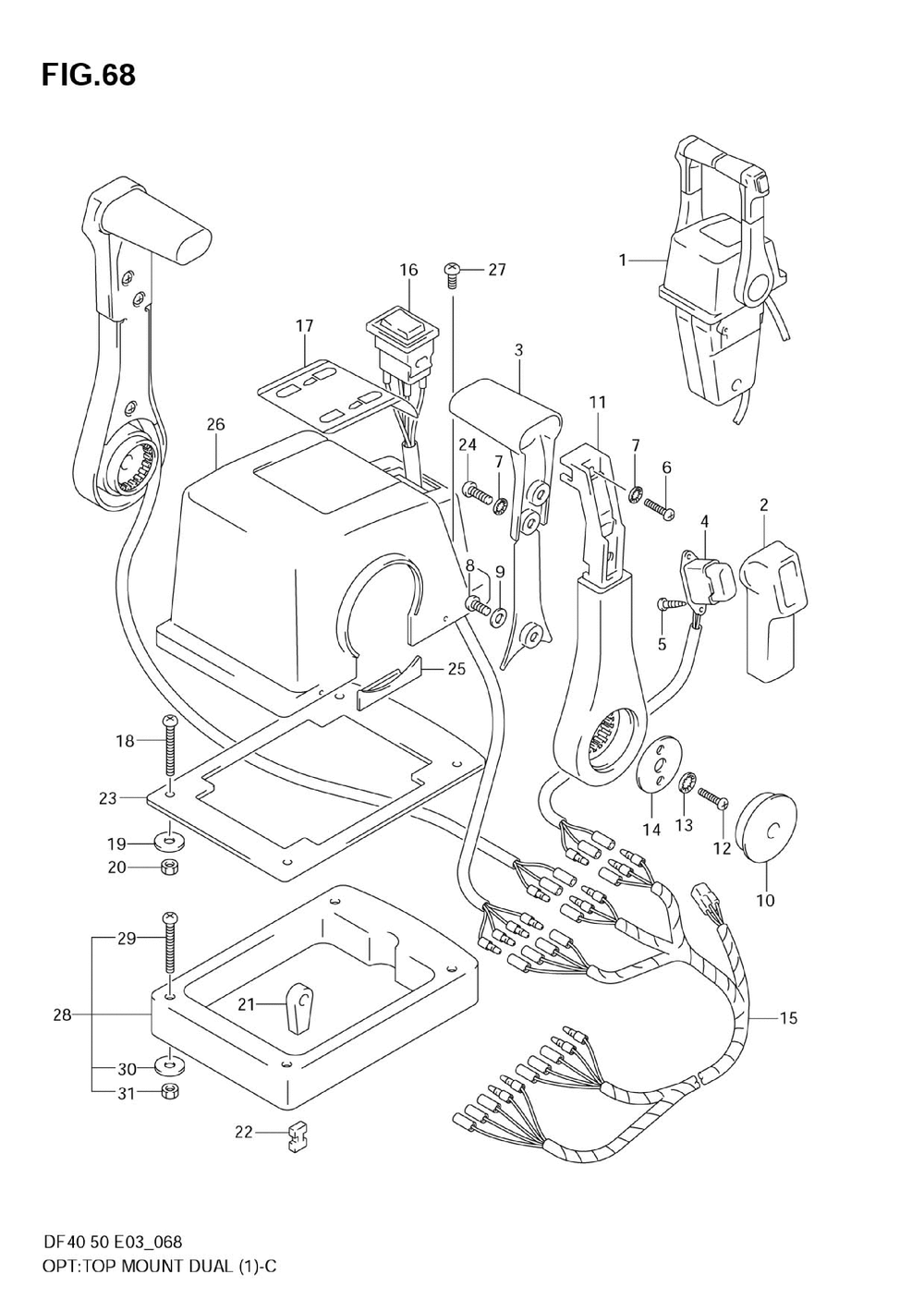

Opt:top mount dual (1)(model:05~09)
Opt:top mount dual (1)(model:05~09)

Opt:top mount dual (1)(model:05~09)

Suzuki Marine DF40/50

Opt:top mount dual (1)(model:05~09)

#

oem код

название

цена

1

Dual Binn Box P ( )

Dual Binn Box P ( )

2

Grip, No.1 ( )

Grip, No.1 ( )

3

Grip, No.2 ( )

Grip, No.2 ( )

4

Switch Assy Ptt ( )

Switch Assy Ptt ( )

5

Screw ( )

Screw ( )

6

Screw ( )

Screw ( )

7

Washer ( )

Washer ( )

8

Screw ( )

Screw ( )

9

Washer ( )

Washer ( )

10

Cap, Lever ( )

Cap, Lever ( )

11

Lever Handle ( )

Lever Handle ( )

12

Screw ( )

Screw ( )

13

Washer ( )

Washer ( )

14

Washer ( )

Washer ( )

15

Wire, Neutral & ( )

Wire, Neutral & ( )

16

Switch Assy, Mod ( )

Switch Assy, Mod ( )

17

Decal ( )

Decal ( )

18

Screw ( )

Screw ( )

19

.washer ( )

.washer ( )

20

Nut ( )

Nut ( )

21

End Cable ( )

End Cable ( )

22

Spacer ( )

Spacer ( )

23

Grommet ( )

Grommet ( )

24

Screw ( )

Screw ( )

25

Cover ( )

Cover ( )

26

Body Cover, Top (<-67211-92e10 )

Body Cover, Top (<-67211-92e10 )

28

Rem Cntrl Space ( )

Rem Cntrl Space ( )

29

.screw ( )

.screw ( )

30

.washer ( )

.washer ( )

31

.nut ( )

.nut ( )
