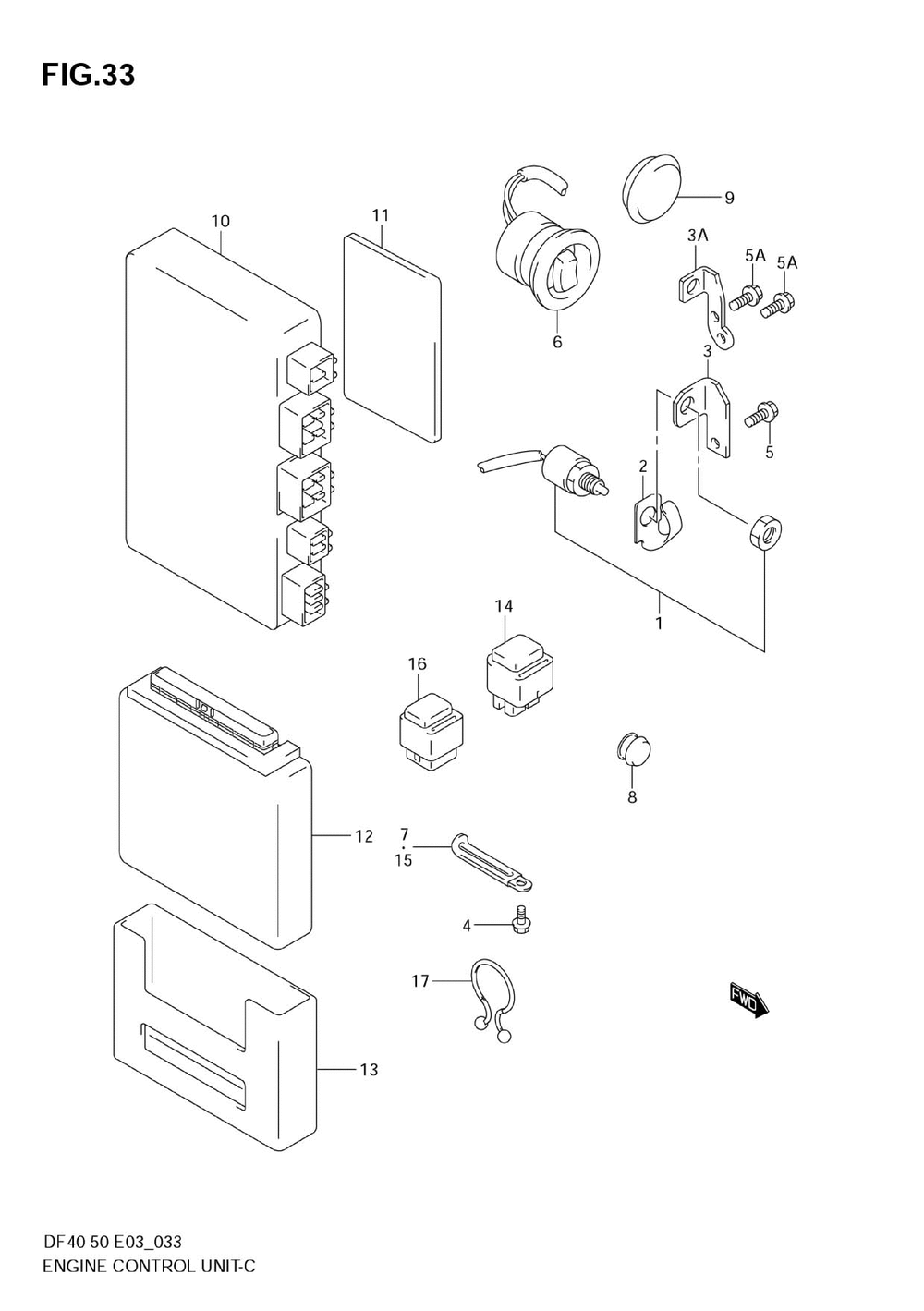

Электрика

Suzuki Marine DF40/50
Suzuki Marine
#oem кодцена
1-1
37721-99E01
Switch Assy, Neu ( )
1-2
37721-99E11
Switch Assy, Neu (model:03~09 )
2
37725-95600
Actuator, Neutra ( )
3
37726-87J01
Bracket, Neutral ( )
4
02162-06127
Bolt ( )
5
02162-06167
Screw ( )
5A
01550-06167
.bolt, Remocon Cable Holder (df40t:251477~ Df50t:252025~ )
6
37850-99E03
Switch Assy, Ptt ( )
7
29404-93J10
Clamp (<-09404-06432 )
8
09250-12004
Cap (warn Lamp Hole )
9
09250-40002
Cap (type:qh Ptt Sw Hole )
10-1
33920-87J03
Unit, Engine Con (df40t, 40qh ~model:00 )
10-2
33920-87J13
Unit, Engine Con (df50t, 50qh ~model:00 )
11
33652-24D00
Cushion, Engine Control Unit (~model:00 )
12-1
33920-87JA4
Unit, Engine Con (df40t, 40qh Model:01~02 )
12-5
33920-87JA2
Unit, Engine Con (df40t Model:07 )
12-7
33920-87JE1
Unit, Engine Con (df50t, 50qh Model:01~02 )
12-13
33920-87JE0
Unit, Engine Con (df50t Model:09 )
13
33925-87J00
Cushion, Engine (model:01~09 )
14-1
38910-92E00
Relay, Fuel Inje ( )
14-2
38860-76F01
Relay Assy (model:03~09 )
15
09404-08205
Clamp L:62 (model:01~07 Df50:~780847 )
16
38915-90J00
Holder, Relay (model:03~09 )
17
09408-00024
Clip (df40:780306~ Df50:780848~ )
