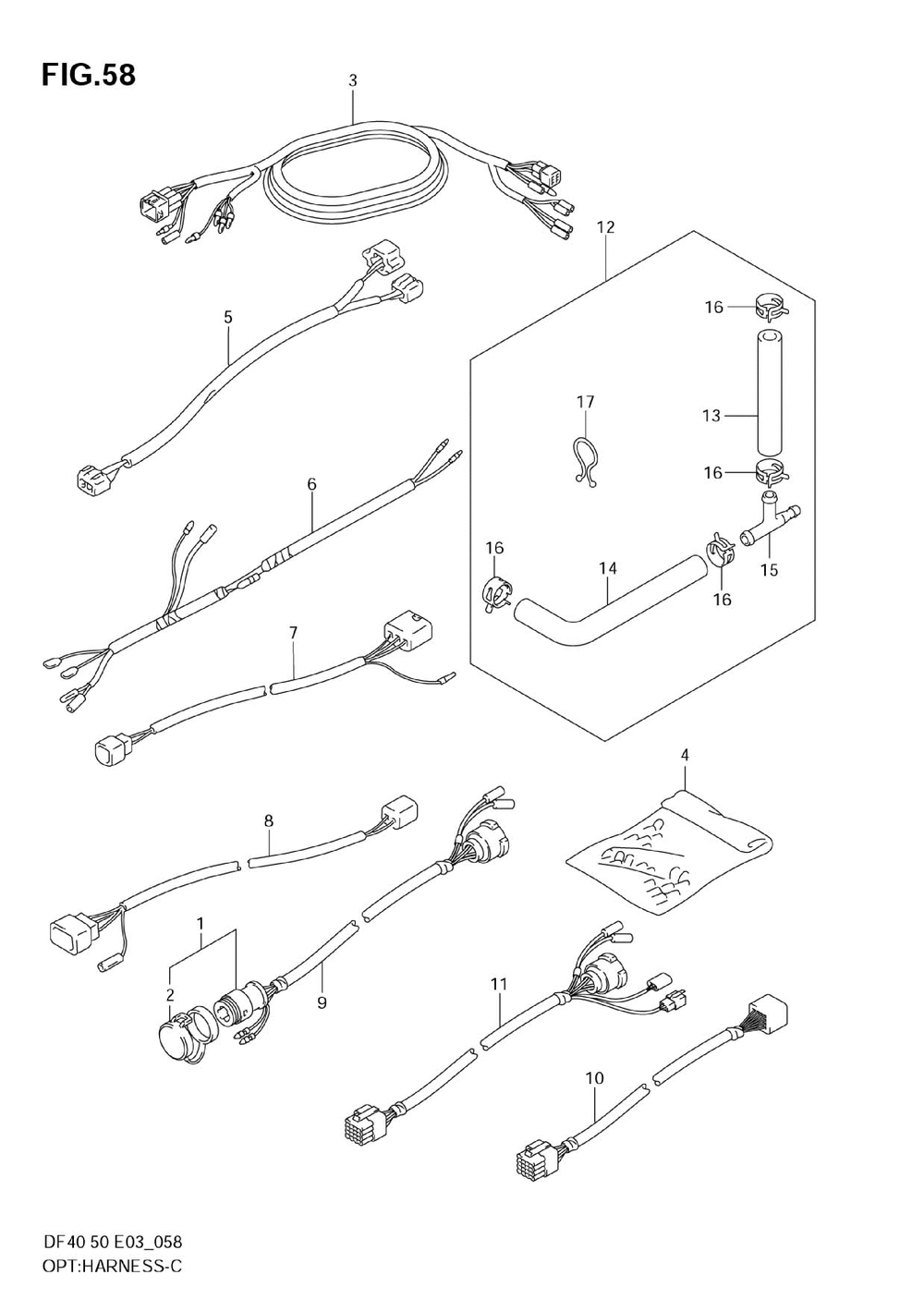

ОПЦИЯ:ЖГУТ ПРОВОДОВ

Suzuki Marine DF40/50
Suzuki Marine
#oem кодцена
1-1
36620-87D20
Harness Wiring (l:5000 Model:99~04 )
1-2
36620-95302
Harness Assy, Ex (l:2000 Model:99~04 )
2
36631-94300
Cap Remo Con Ha ( )
3-1
36660-94400
(l:6500 Model:99~04 )
3-2
36660-94480
Wire, Trim Gauge (l:2000 Model:99~04 )
4
36990-87D00
Terminal&sleeve ( )
5
36820-95560
Lead, Neutral Sw (l:700 Model:99, 00 )
6
34109-94500
Lead Extension (l:1600 Model:99, 00 )
7
34711-99E00
Wire, Adpt To Mo (std Model:99~02 )
8
36661-99E00
Wire, Adpt To En (std Model:99~02 )
9
36620-92E00
Wire Assy, Remoc (l:7000 Model:99~04 )
10-1
36620-93J10
Main Harness Ex (l:2000 Model:05~09 )
10-2
36620-93J40
Harness Ext 10' (l:3000 Model:05~09 )
11-1
36620-93J20
Harnessadapter (l:2000 Model:04 )
11-2
36620-93J30
Harness Adapter (l:2000 Model:05~09 )
12
34660-87J00
Sub Kit Wtr Pre (model:04~09 )
13
09352-50903-600
.hose (l:600->70 )
15
09367-06006
.3 Way ( )
16-1
09401-08411
Clip ( )
16-2
09401-08413
Clip (model:06~09 )
17
09408-00024
Clip ( )
