Clamp bracket (type:t/th) Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF9.9-15 (2009)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2009
DF9.9-15

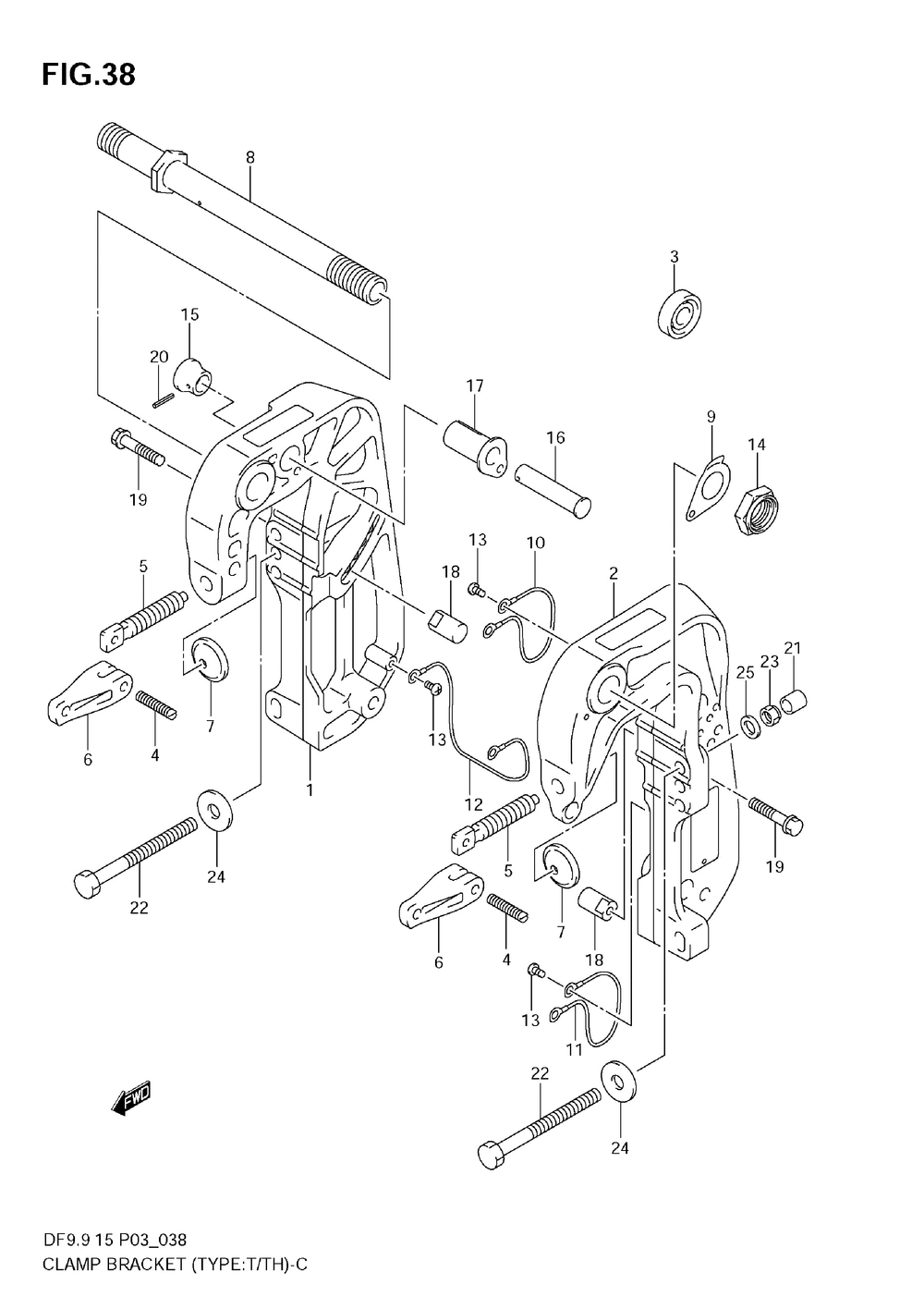

Clamp bracket (type:t/th)
Clamp bracket (type:t/th)

Clamp bracket (type:t/th)

Suzuki Marine DF9.9-15

Clamp bracket (type:t/th)

#

oem код

название

цена

1

41111-94JA0-0EP

Bracket, Clamp S

Bracket, Clamp S

2

41121-94JA0-0EP

Bracket, Clamp P

Bracket, Clamp P

3

Seal Strg Cable (df9.9t)

Seal Strg Cable (df9.9t)

4

Pin (6x27)

Pin (6x27)

5

Screw, Clamp

Screw, Clamp

8

Shaft, Clamp Bra

Shaft, Clamp Bra

9

Шайба

Шайба

10

Lead, Clamp To S

Lead, Clamp To S

12

Lead, Swivel To

Lead, Swivel To

13

Screw (6x10)

Screw (6x10)

14

Гайка

Гайка

15

Knob, Tilt Stopp

Knob, Tilt Stopp

16

Pin, Tilt Stoppe

Pin, Tilt Stoppe

17

Bush, Tilt Stopp

Bush, Tilt Stopp

18

Pin, Tilt Lock

Pin, Tilt Lock

19

Bolt, 8x40

Bolt, 8x40

20

21

Cap, Transom Bol

Cap, Transom Bol

22

Bolt, Transom (10x110)

Bolt, Transom (10x110)

23

Гайка

Гайка

24

Washer, Transom (10.5x35x3)

Washer, Transom (10.5x35x3)

25

Washer, Transom (10.5x18x3)

Washer, Transom (10.5x18x3)
