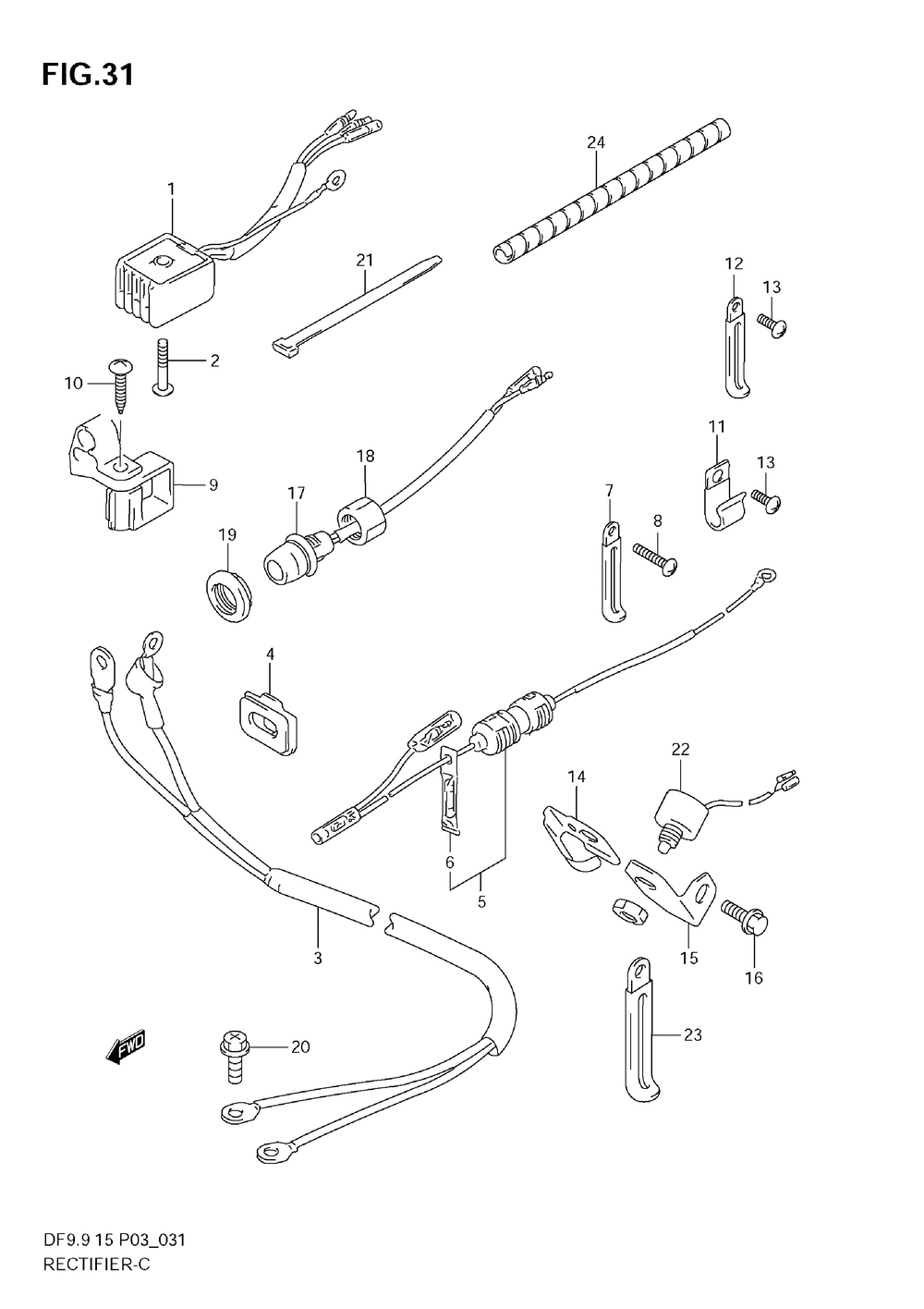

РЕГУЛЯТОР

Suzuki Marine DF9.9-15
Suzuki Marine
#oem кодцена
1
32800-95D01
Rectifier Assy (electric Starter)
2
02142-05307
Screw (electric Starter)
3
33810-93E02
Cable Assy, Star (electric Starter)
4
33811-96300
Grommet Start C (electric Starter <-33811-94j00 )
5
36740-94771
Case Assy, Fuse (electric Starter)
6
09481-25001
Предохранитель
7
09404-06432
Зажим
8
02142-05127
Винт
9
33816-96300
Clamp (df9.9r)
10
03242-06253
.screw (df9.9r)
11
09403-16411
Clamp, Battery Sub
13
09125-06069
.bolt (6x12)
14
37725-94302
Actuator
15
37726-95D02
Bracket, Neutral
16
01550-06167
.bolt, Remocon Cable Holder
17
37161-89E13
Switch, Start (electric Starter)
18
09159-14014
.nut, Starter Switch (m14) (electric Starter)
19
09250-15010
.plug, Starting Switch
20
02162-06167
Винт
21
09407-14403
.clamp, Battery Cable (electric Starter)
22
37721-93E02
Switch Assy, Neu
23
09404-08205
Clamp L:62 (electric Starter)
24
33833-91J00
Tube, Sw Lead (l:250->150 Refer To Fig.32(e- 9) For Model:05~09 )
10
03241-0625A
Screw (df9.9r)
