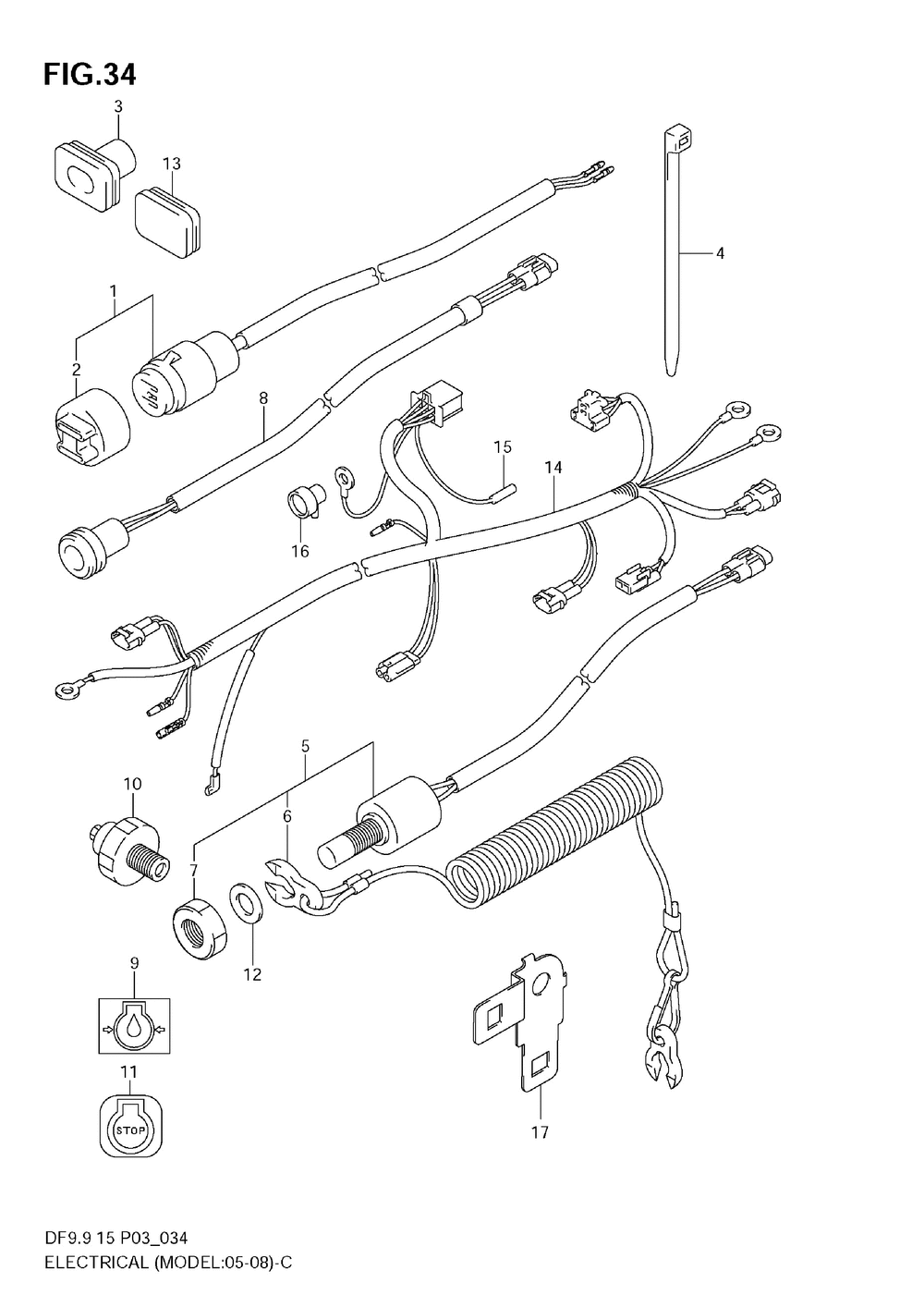

Электрика (модели 2005-2009 года)

Suzuki Marine DF9.9-15
Suzuki Marine
#oem кодцена
1
39601-95D00
Receptacle (manual Starter Opt )
2
36634-93910
..cap (manual Starter Opt )
3
39603-94400
Grommet, Recepta (manual Starter Opt )
4-1
09407-14407
.clamp, Harness (l:140) (manual Starter Opt )
4-2
09407-25402
.clamp (manual Starter Opt )
5
37830-94J01
Switch Assy, Eme (except Df9.9r/9.9t)
6
37823-92E01
Plate Assy, Emer
7
37826-92E00
Гайка
8
36360-94J00
Indicator Comp,
9
36367-93E00-019
Label, Oil Press (<-36367-94j00)
10
37820-93E10
Switch, Oil Pres
11
37835-95D00
Label, Stop (except Df9.9r/9.9t)
12
09160-12067
.washer, Emergency Switch (except Df9.9r/9.9t)
13
39669-94400
Plug, Lower Cove (manual Starter <-39669-94j00 )
14-1
36610-94J10
Harness Assy, Wi (electric Starter)
14-2
36610-94J00
Harness Assy, Wi (manual Starter)
14-3
36610-94J20
Harness Assy, Wi (df9.9r)
14-4
36610-94JA0
Harness Assy, Wi (df9.9t)
14-5
36610-94JB0
Harness Assy, Wi (df9.9th)
15
36615-96300
Terminal (except Df9.9r/9.9t)
16
36618-43410
17
36617-94JA0
Bracket, Joint C (df9.9t/th)
