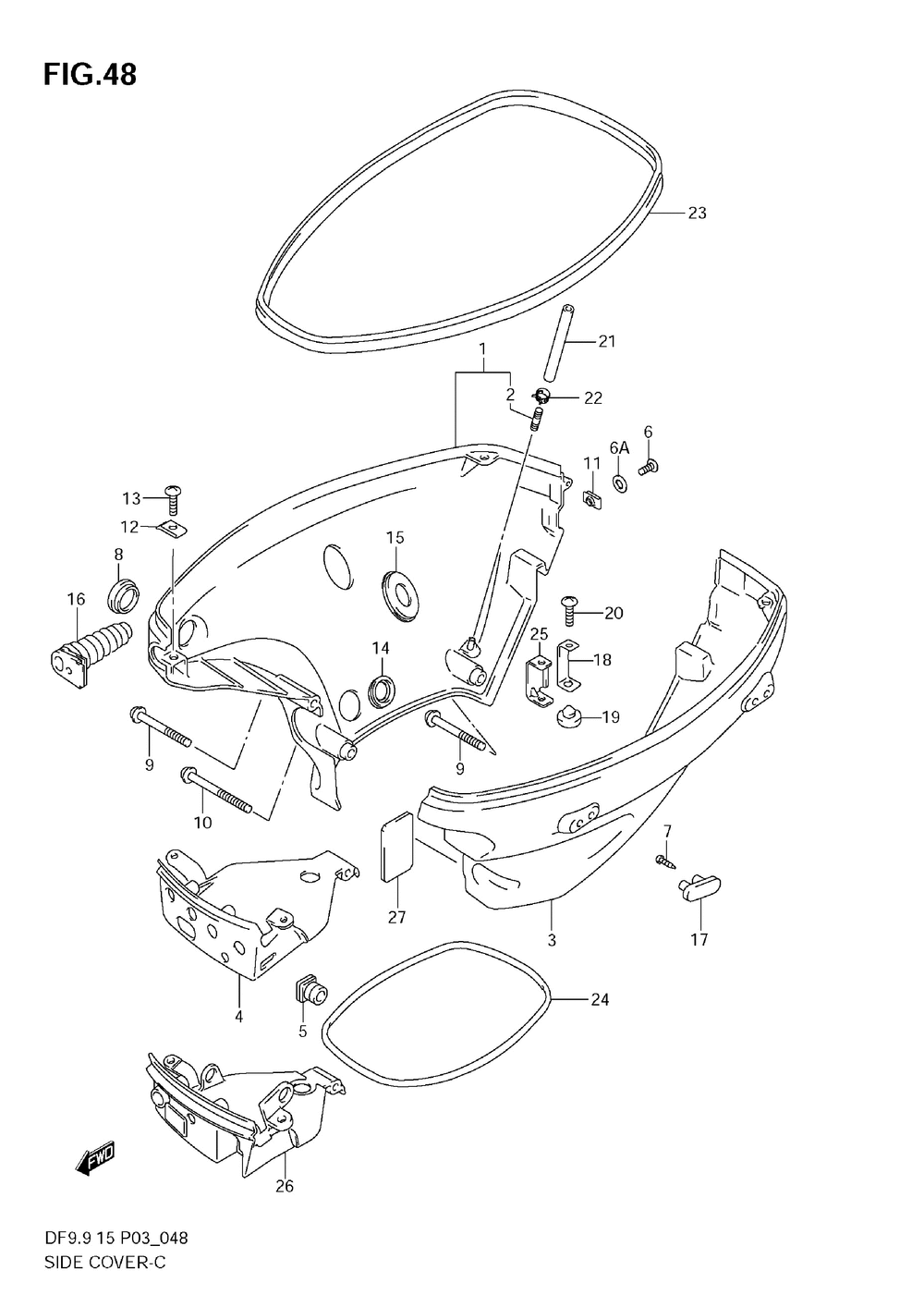

БОКОВАЯ КРЫШКА

Suzuki Marine DF9.9-15
Suzuki Marine
#oem кодцена
1
61810-94J00-0EP
Cover Comp, Side
2
61155-94500
Tube Water Insp
3-1
61821-94J00-0EP
Cover, Side Port
3-2
61821-94JA0-0EP
Cover, Side Port (df9.9t/th)
4
61831-94J20-0EP
Panel, Instrumen (model:04)
5
36656-93E00
Grommet, Switch (model:04)
6
09125-06067
Винт (6x16)
6A
09160-06082
.washer, Clutch Lever (model:06~09)
7
59139-94J00
Screw, Protector
8
09250-26003
Plug, Clutch Hole
9
09136-06137
Bolt (6x55)
10
09136-06138
Bolt (6x75)
11
09148-06015
Гайка
12
09148-06017
Гайка
13
02142-06167
Винт
14
61115-93E00
Seal, Lower Cove (<-61115-94j00)
15
61124-93E00
Plug, Side Cover (<-61124-94j00)
16-1
67331-93E20
Grommet, Side Co
16-2
67331-94J00
Grommet, Side Co (model:05~09)
16-3
67331-94J10
Grommet, Side Co (df9.9r Model:05~09 )
16-4
67331-94JB0
Grommet, Side Co (df9.9t)
16-5
67331-94JA0
Grommet, Side Co (df9.9th)
17
61851-93E10
Protector, Side
18
61827-93E00
Holder, Side Cov (model:04)
19-1
09321-08020
Cushion, Side Cover
19-2
61151-91J11
Cushion, Lower C (model:05~09)
21
15211-91J00-180
Hose, Water Insp
22
09401-08413
Clip (<-09401-08411)
23
61112-93930
Rubber, Engine L
24
61134-93E00
Seal, Side Cover
25
61827-94J00
Holder, Side Cov (model:05~09)
26
61831-94J30-0EP
Panel, Instrumen (model:05~09)
27
61814-94JA1
Protector, Side (df9.9:881322~ Df15:881921~ )
