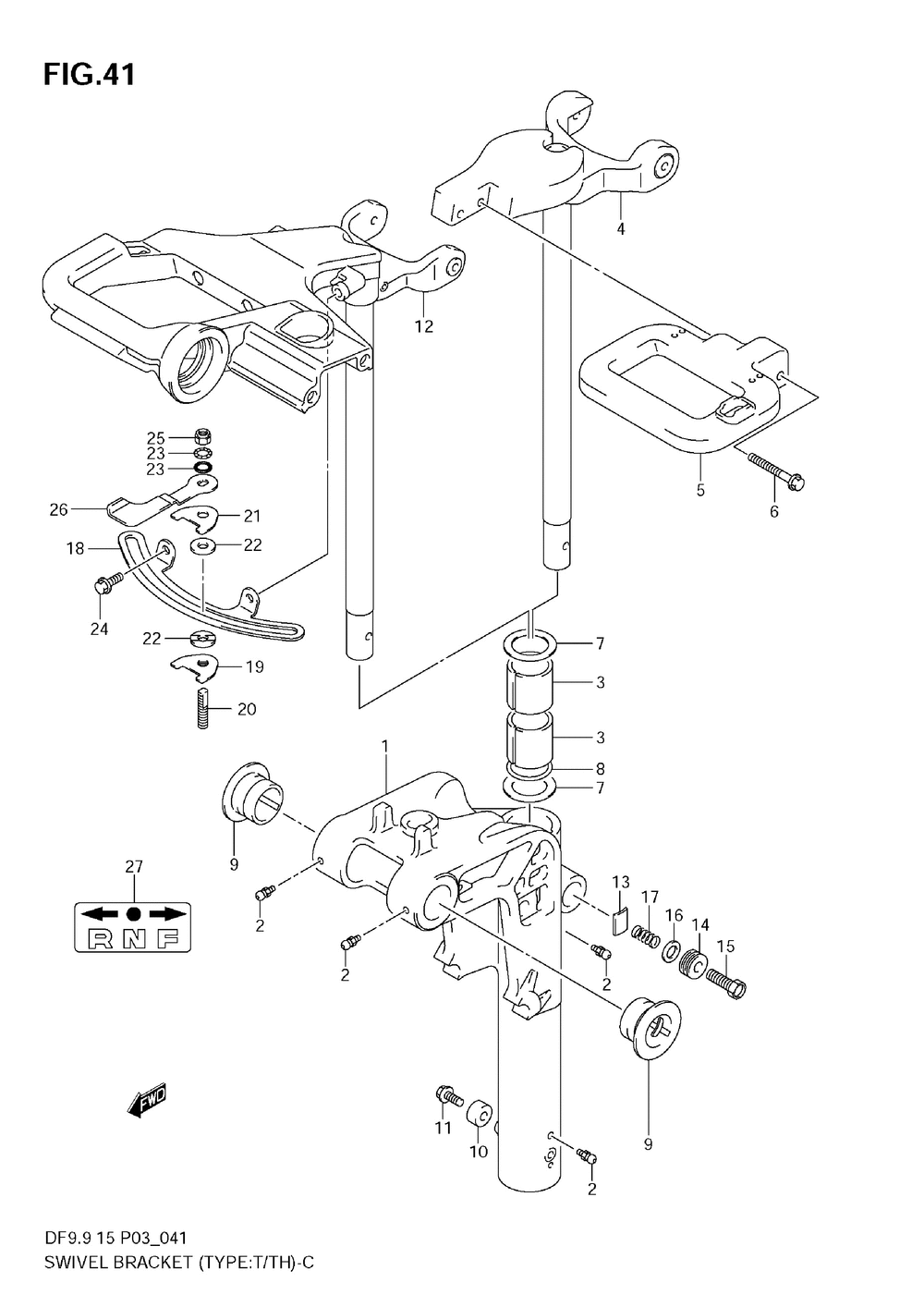

Шарниры кронштейна (type T/TH)
Шарниры кронштейна (type T/TH)

Шарниры кронштейна (type T/TH)

Suzuki Marine DF9.9-15

oem код

название

цена

1-1

43111-94JB0-0EP

Bracket, Swivel( (df9.9t)

1-2

43111-94JA0-0EP

Bracket, Swivel (df9.9th)

22511-99011

Ниппель

43711-94JA0

Bush, Steering

43750-94JA0-0EP

Bracket Comp, St (df9.9t)

43757-94JA0-0EP

Bracket, Steerin (df9.9t)

09116-08097

Bolt (8x50) (df9.9t)

09160-27009

Washer (27.5x47x2.0)

09280-27004

O Ring (d:3.1 Id:26.2)

Bush, Swivel Bra

Anode, Protectio

Болт (6х14)

Bracket Comp, St (df9.9th)

Plate Adjust

Cover Adjust

Болт

Washer (8.5x16x1.2)

Spring, Steering

Plate, Steering (df9.9th)

43420-94J20

Plate Comp, Strg (df9.9th)

43512-94J00

Shaft, Strg Adju (df9.9th)

43514-94J00

Plate, Strg Adju (df9.9th)

43514-95J00

Washer, Strg Adj (df9.9th)

43516-89J00

Washer, Steering (df9.9th)

29116-93J00

Bolt (df9.9th)

09159-08059

.nut, Strg Bracket Attachment (df9.9th)

43411-94J00

Adjuster, Steeri (df9.9th)

21131-94J00

Mark, Clutch Shi (df9.9th)
