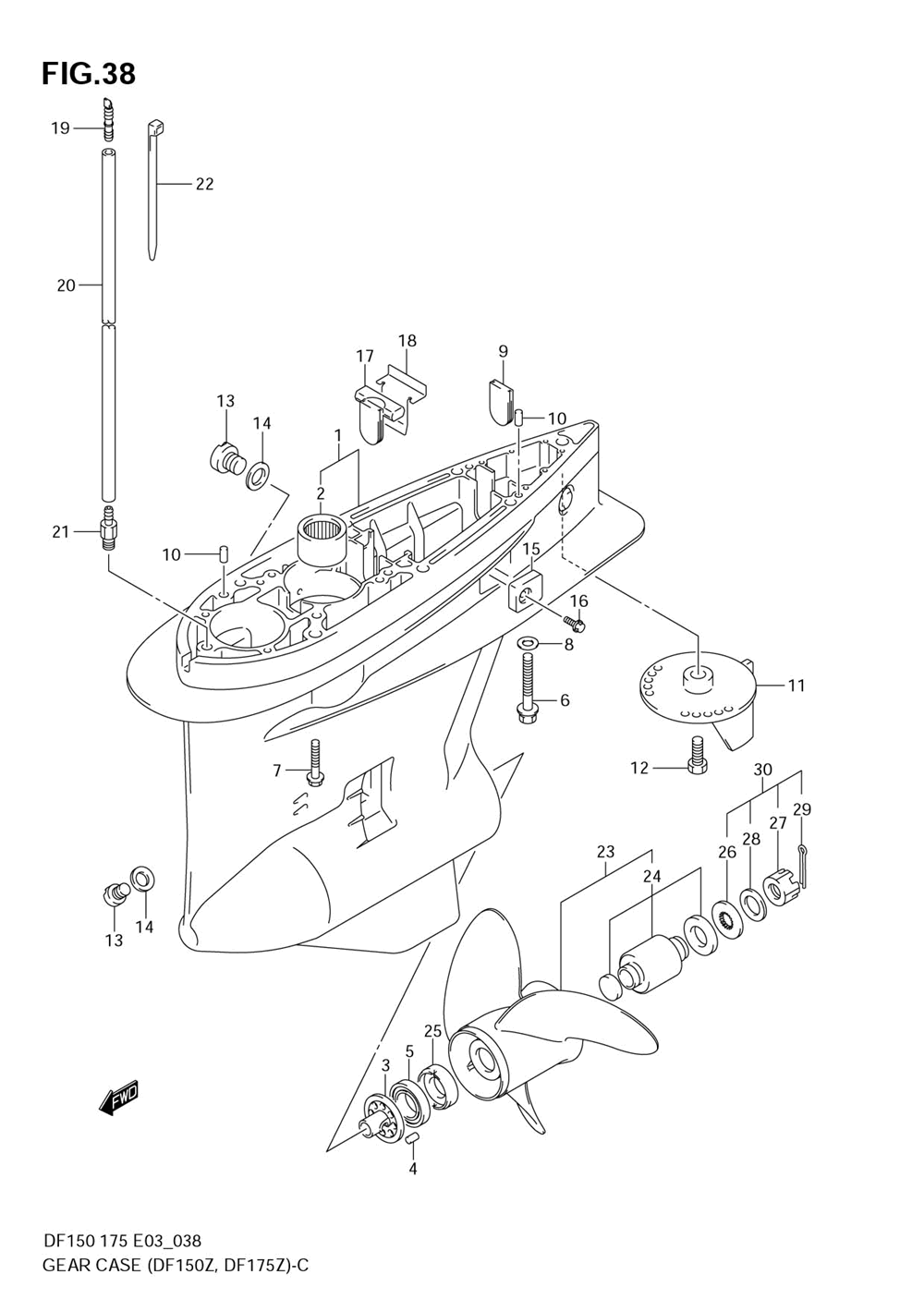

Картер (DF150Z, DF175Z)
Картер (DF150Z, DF175Z)

Картер (DF150Z, DF175Z)

Suzuki Marine DF150 175

Картер (DF150Z, DF175Z)

#

oem код

название

цена

1

55110-93J30-0EP

Case Comp, Gear ()

Case Comp, Gear ()

2

.bearing, Pinion ()

.bearing, Pinion ()

3

Housing, Shift C ()

Housing, Shift C ()

4

.pin, Shift Cam Housing ()

.pin, Shift Cam Housing ()

5

.bearing, Fwd Thrust ()

.bearing, Fwd Thrust ()

6

Bolt L:70(sus) ()

Bolt L:70(sus) ()

7

Bolt, 10x55 ()

Bolt, 10x55 ()

8

.washer (12.5x22x2.5) ()

.washer (12.5x22x2.5) ()

9

Grommet ()

Grommet ()

10

Pin ()

Pin ()

11

55125-98J00-0EP

Tab, Trim ()

Tab, Trim ()

12

Bolt, 8x22 (<-09116-08121)

Bolt, 8x22 (<-09116-08121)

13

Plug, Drain ()

Plug, Drain ()

14

Gasket, Drain Pl ()

Gasket, Drain Pl ()

15

Zinc Set, Protec ()

Zinc Set, Protec ()

16

Bolt, 6x15 ()

Bolt, 6x15 ()

17

Rubber, Exhaust ()

Rubber, Exhaust ()

18

Plate, Exhaust S ()

Plate, Exhaust S ()

19

Union, Speedomet ()

Union, Speedomet ()

20

09355-40805-00B

Hose (l:2000->1700)

Hose (l:2000->1700)

21

Nipple ()

Nipple ()

22

.clamp ()

.clamp ()

23-1

99105-0080L-185

Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)

Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)

23-2

99105-0080L-20P

Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)

Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)

23-3

99105-0080L-215

Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)

Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)

23-4

99105-0080L-23P

Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)

Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)

23-5

99105-0080L-17P

Sspropcrdfv63x1 (opt:not For Us Marketcounter Rotation)

Sspropcrdfv63x1 (opt:not For Us Marketcounter Rotation)

23-6

99105-0080L-245

Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)

Sspropcrv63x16x (opt:not For Us Marketcounter Rotation)

24

Bush Set, Propel ()

Bush Set, Propel ()

25

Stopper, Propell ()

Stopper, Propell ()

26

Spacer, Nut(t:6. ()

Spacer, Nut(t:6. ()

27

Гайка

Гайка

28

Washer (18.5x31x1.0) ()

Washer (18.5x31x1.0) ()

29

Cotter Pin (l:25) ()

Cotter Pin (l:25) ()

30

Prop Hdwr V-6 M (opt)

Prop Hdwr V-6 M (opt)

31

Lu Sealkit Df V (opt Not Shown)

Lu Sealkit Df V (opt Not Shown)
