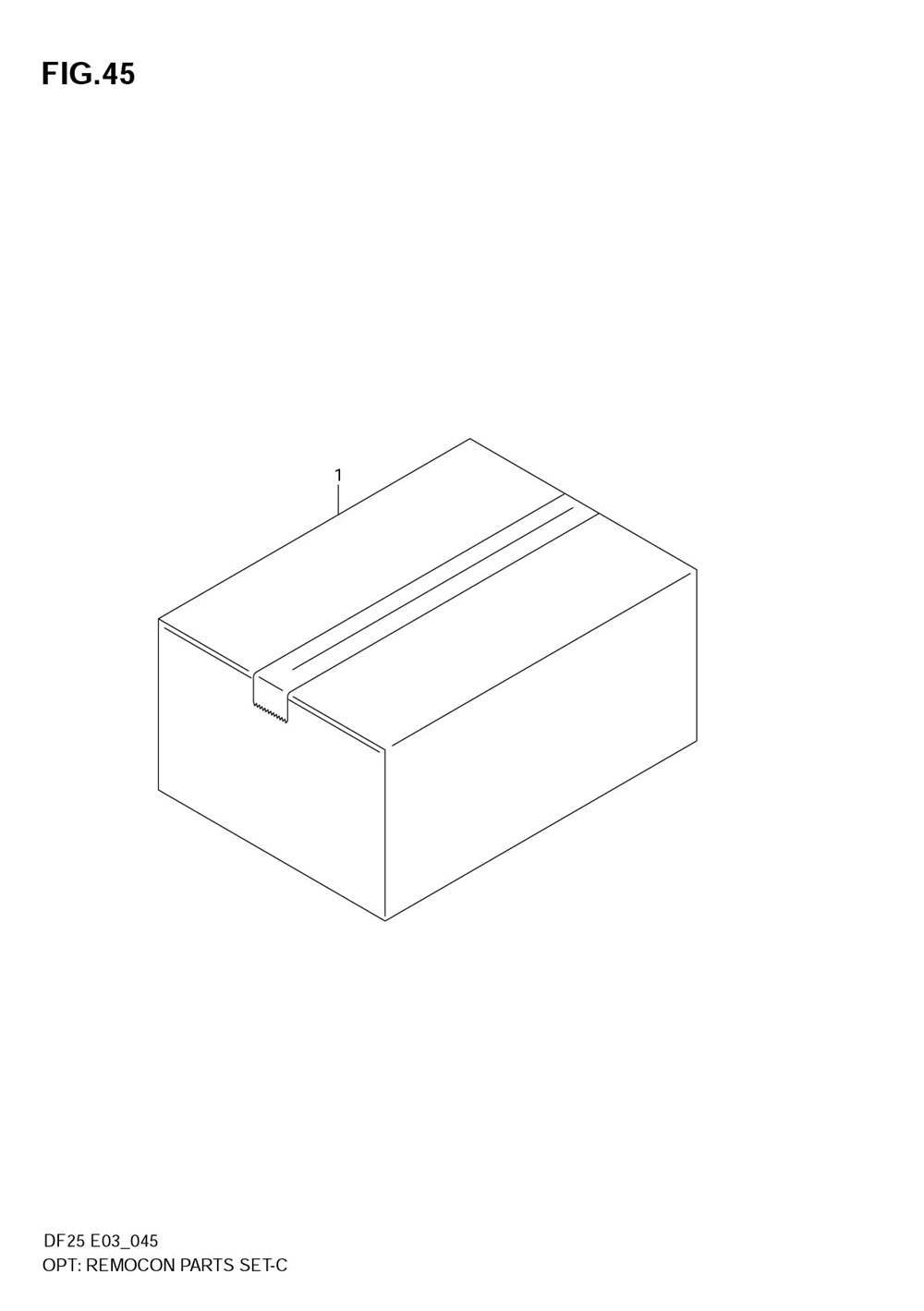

Опции - установочный комплект ДУ

Suzuki Marine DF25
Suzuki Marine
#oem кодцена
1
67130-95J01
Parts Assy, Rem ()
2
21241-95J00
Link, Clutch Lev (not Shown, Refer To Fig.16)
3
23210-95J00
Lever Comp, Clut (not Shown, Refer To Fig.16)
4
09160-05029
.washer (not Shown, Refer To Fig.16)
5
09160-06084
Washer (6.5x18x1.6) (not Shown, Refer To Fig.16)
6
09180-06230
Spacer, 6.2x12x1 (not Shown, Refer To Fig.16)
7
09204-01002
Pin, Cotter (not Shown,refer To Fig.16)
8
01550-06257
..bolt (not Shown, Refer To Fig.16)
9
19120-95J00
Lever Comp, Thro (not Shown, Refer To Fig.12)
10
19122-95J00
Lever, Interlink (not Shown, Refer To Fig.12)
11
19185-95J00
Spring, Throttle (not Shown, Refer To Fig.12)
12
19761-95J00
Stay, Throttle C (not Shown, Refer To Fig.12)
13
63610-95J10
Cable, Throttle (not Shown, Refer To Fig.30)
14
09160-06047
.washer, Throttle Lever (not Shown,refer To Fig.12)
15
01550-06127
Bolt (not Shown, Refer To Fig.12)
16
01550-06167
.bolt, Remocon Cable Holder (not Shown,refer To Fig.12)
17
67467-89J01
Connector (not Shown, Refer To Fig.12)
18
09160-06055
Washer (7x12x1.0) (not Shown, Refer To Fig.32)
19
09385-06012
Clip (not Shown, Refer To Fig.32)
20
67340-95J00
Holder Comp, R/c (clutchnot Shown, Refer To Fig.12)
21
67350-95J00
Holder, R/con Ca (throttlenot Shown, Refer To Fig.12)
22
09116-06094
Bolt, 6x15 (not Shown, Refer To Fig.32)
23
09308-08013
Grommet (not Shown, Refer To Fig.32)
24
36610-95J20
Harness Assy, Wi (not Shown, Refer To Fig.23)
25
36616-95J00
Holder, Connecto (not Shown, Refer To Fig.23)
26
37163-95J00
Plug, Starting S (not Shown, Refer To Fig.22)
27
02142-06167
Screw (not Shown, Refer To Fig.23)
28
61124-95J20
Grommet, Cable (not Shown, Refer To Fig.28)
