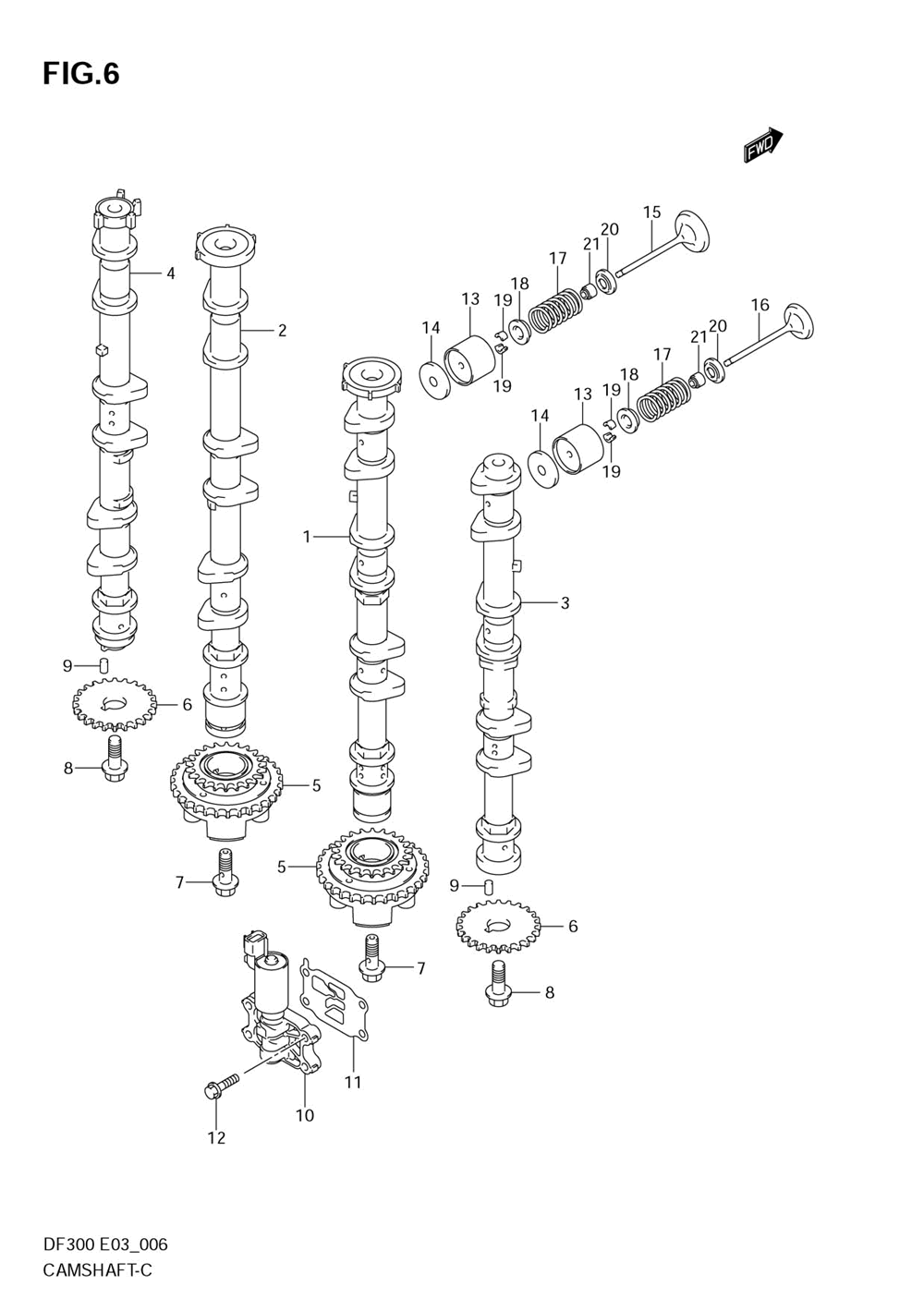

РАСПРЕДВАЛ

Suzuki Marine DF300
Suzuki Marine
#oem кодцена
1
12701-98J00
Camshaft, Intk S ()
2
12705-98J00
Camshaft, Intk P ()
3
12721-98J00
Camshaft, Exh St ()
4
12729-98J00
Camshaft, Exh Po ()
5
12740-93J00
Sprocket Assy, C ()
6
12748-93J00
Sprocket, Camsha ()
7
12753-93J00
Bolt, Intk Camsh ()
8
12749-93J00
Bolt, Camshaft ()
9
09202-05032
Pin, Camshaft Ti ()
10
16550-93J00
Valve Comp, Oil ()
11
16555-93J00
Gasket, Ovc ()
12
01550-06257
..bolt ()
13
12891-93J00
Tappet ()
14-1
12892-93J00-218
Shim, Tappet(t:2 ()
14-2
12892-93J00-220
Shim, Tappet(t:2 ()
14-3
12892-93J00-223
Shim, Tappet(t:2 ()
14-4
12892-93J00-225
Shim, Tappet(t:2 ()
14-5
12892-93J00-228
Shim, Tappet(t:2 ()
14-6
12892-93J00-230
Shim, Tappet(t:2 ()
14-7
12892-93J00-233
Shim, Tappet(t:2 ()
14-8
12892-93J00-235
Shim, Tappet(t:2 ()
14-9
12892-93J00-238
Shim, Tappet(t:2 ()
15
12911-98J00
Valve, Intk ()
16
12915-93J10
Valve, Exh ()
17
12921-93J10
Spring, Valve ()
18
12931-78G00
Retainer, Valve ()
19
12932-24400
Cotter, Valve ()
20
12933-69G10
Seat, Valve Spri ()
21
09289-05012
Seal, Valve Stem ()
