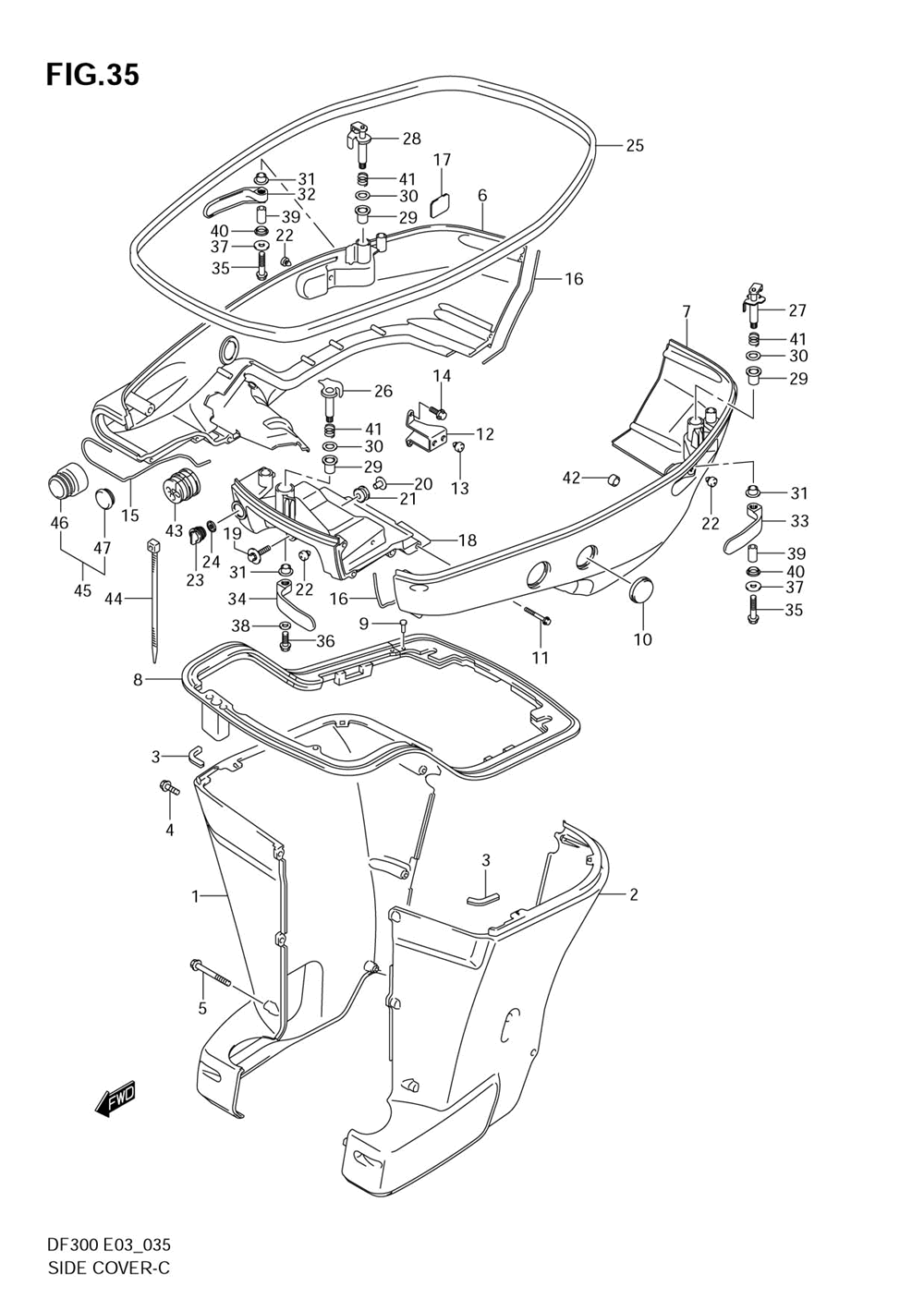

БОКОВАЯ КРЫШКА Каталог оригинальных запчастей для лодочных моторов Suzuki Marine DF300 (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

Главная
Каталог оригинальных запчастей для лодочных моторов
Suzuki Marine
2008
DF300
БОКОВАЯ КРЫШКА
БОКОВАЯ КРЫШКА

БОКОВАЯ КРЫШКА

Suzuki Marine DF300

БОКОВАЯ КРЫШКА

#

oem код

название

цена

1

61131-98J00-0EP

Cover, Oil Pan S ()

Cover, Oil Pan S ()

2

61141-98J00-0EP

Cover, Oil Pan P ()

Cover, Oil Pan P ()

3

Cushion, Oil Pan ()

Cushion, Oil Pan ()

4

Screw, Oil Pan C ()

Screw, Oil Pan C ()

5

Screw, Oil Pan C ()

Screw, Oil Pan C ()

6

61811-98J01-0EP

Cover, Side Stbd ()

Cover, Side Stbd ()

7

61821-98J00-0EP

Cover, Side Port ()

Cover, Side Port ()

8

Seal, Side Cover ()

Seal, Side Cover ()

9

09409-05302-5PK

Pin ()

Pin ()

10

Plug, Side Cover ()

Plug, Side Cover ()

11

Винт

Винт

12

Holder, Side Cov ()

Holder, Side Cov ()

13

Cushion, Side Co ()

Cushion, Side Co ()

14

..bolt, Lower ()

..bolt, Lower ()

15

Seal, Front Pane ()

Seal, Front Pane ()

16

Seal, Side Cover ()

Seal, Side Cover ()

17

Protector, Side ()

Protector, Side ()

18

61831-98J00-0EP

Panel, Front ()

Panel, Front ()

19

Bolt (8x40) ()

Bolt (8x40) ()

20

Шайба

Шайба

21

Cushion ()

Cushion ()

23

Plug, Water ()

Plug, Water ()

24

Gasket, Water Pl ()

Gasket, Water Pl ()

25

Rubber, Side Cov ()

Rubber, Side Cov ()

26

Shaft Comp, Cove ()

Shaft Comp, Cove ()

27

Shaft Comp, Cove ()

Shaft Comp, Cove ()

28

Shaft Comp, Cove ()

Shaft Comp, Cove ()

29

Bush, Engine Cover Hook Shaft ()

Bush, Engine Cover Hook Shaft ()

30

Washer, Engine Cover Hook ()

Washer, Engine Cover Hook ()

31

Bush ()

Bush ()

32

61633-98J00-0EP

Lever, Hook Rear ()

Lever, Hook Rear ()

33

61634-98J10-0EP

Lever, Hook Rr P ()

Lever, Hook Rr P ()

34

61645-98J00-0EP

Lever, Hook Fron ()

Lever, Hook Fron ()

35

Болт

Болт

36

Болт

Болт

37

Washer, Hook Lever Lower ()

Washer, Hook Lever Lower ()

38

Washer (8.5x16x1.2) ()

Washer (8.5x16x1.2) ()

39

Spacer ()

Spacer ()

40

Bush ()

Bush ()

41

Spring, Hook Sha ()

Spring, Hook Sha ()

42

Cushion, Side Cover ()

Cushion, Side Cover ()

43

Grommet, R/con C ()

Grommet, R/con C ()

44

.clamp ()

.clamp ()

45

Rigging Kit Ada (opt)

Rigging Kit Ada (opt)

46

Adapter, Hose (opt)

Adapter, Hose (opt)

47

Plug (opt)

Plug (opt)
